HT530 Compact Tracked Sliding Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT530

Product Description

The HT530 is a tracked skid steer loader introduced by Shandong Haituo. With an operating weight of 1330kg, with an overall width of just 1050mm. With the folding footrest deployed and without the bucket, its length measures 2100mm. Powered by a Kubota D1105 three-cylinder diesel engine delivering a rated power of 14kW, it operates with a hydraulic system featuring a pressure range of 0-17MPa and flow rate of 0-32L/min. This combination ensures stable and robust power output, enabling it to handle heavy-duty tasks with ease. Fitted with high-buoyancy rubber tracks offering extensive ground contact area, slip resistance and durability, its 150mm ground clearance adapts to complex terrain. Agile turning enables effortless navigation through confined spaces. Equipped with internationally standardised hydraulic quick-change couplings, it swiftly switches between attachments including 0.2m³ buckets and forks, facilitating multifunctional operations such as loading, excavation and sweeping. Suitable for diverse scenarios including construction and agricultural farming. The machine employs ISO-standard joysticks and a standing operation design for precise, intuitive control. Its 30-litre fuel tank supports extended continuous operation, with noise levels maintained below 93 decibels. An open maintenance structure and cross-border export compatibility further enhance practicality and convenience.

Product Features

HT530 mini skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering.

Technical Parameters

Model	HT530
Max working height A	2630mm
Max pin height B	2090 mm
Max Dumping height C	1535 mm
Max Dumping distance D	715mm
Max Dumping Angle E	38°
Total height F	1630 mm
Ground clearance	150 mm
Overall length without bucket	2220 mm
Total width G	1050 mm
Bucket width H	1150mm
Total length with bucket K	2745 mm
overall length without the bucketafter folding the pedal Y	2100 mm
Engine	KUBOTA D1105
Optional engine	Perkins
Rated Power (KW)	14KW
Rotating speed (rpm)	2200
Noise (Db)	≤93
Pressure (Mpa)	0-17
Flow rate	0-32L
Operating Load	450 Kg
Bucket Capacity	0.2m3
Max Lifting Force	530 Kg
Travel Speed	0-4.5Km/h
Operating Weight	1330 Kg
Fuel tank	30L
Engine oil	4L
Hydraulic tank	35L

Video

Supply Capability

Model	Power rating	Total weight of the machine
HT530	14KW	1330kg
HTS530	18.5KW	1330kg
HTS530T	14KW	1330kg

Inventory Status

In-stock: The HT530 is available in standard configuration with immediate delivery, supported by a 20-30 working day delivery period. It offers optional configurations including various engines, tooling sets, and special working condition configurations. With a working weight of 1.33 tons, a maximum lifting capacity of 530 kg, compact dimensions, and robust multifunctionality, this model has gained widespread acclaim in construction, agriculture, municipal services, and warehousing logistics sectors.

ht380 mini skid steer loader with 015m3 bucket capacity543758500-1

ht380 mini skid steer loader with 015m3 bucket capacity543758500-2

ht380 mini skid steer loader with 015m3 bucket capacity543758500-3

International Standard Quick-Change System: Unlocking Comprehensive Operational Capabilities

The HT530 comes standard with internationally recognized hydraulic quick-change couplings, enabling rapid attachment of various attachments including buckets, forks, crushers, sweepers, snowplows, and screw drills. This versatile design effortlessly handles diverse tasks such as loading, excavation, crushing, cleaning, snow removal, and material handling.

ht380 mini skid steer loader with 015m3 bucket capacity543758500-5

ht380 mini skid steer loader with 015m3 bucket capacity543758500-6

Usage Scenarios

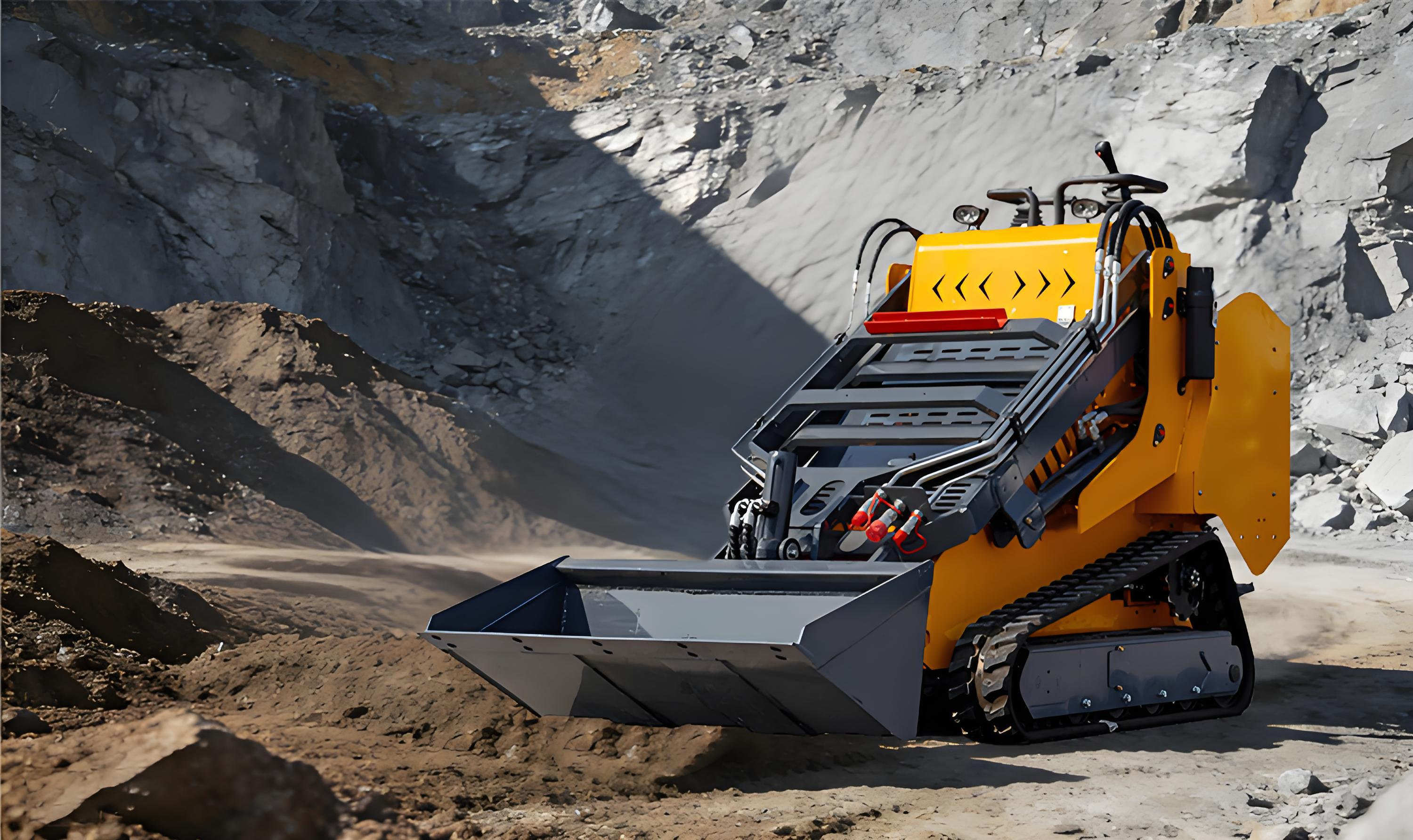

Construction Site and Material Handling
This equipment is designed for handling and stacking construction materials such as sand, gravel, bricks, and cement. Its 2630mm working height facilitates loading and palletizing, while the compact body enables efficient debris clearance in confined spaces.

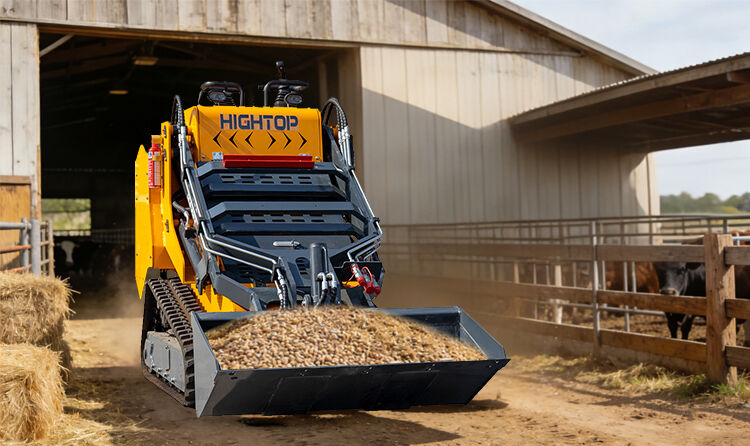

Agriculture and Livestock
This equipment is designed for farm operations, including feed and fertilizer handling, crop transportation, and land leveling. Its powerful lifting capability effortlessly processes heavy loads like hay bales, significantly reducing manual labor intensity.

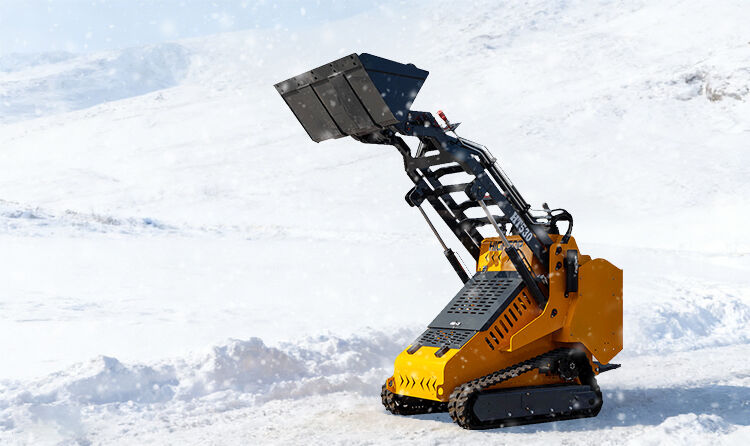

Municipal Maintenance and Winter Snow Removal
This compact device is ideal for street cleaning, ditch excavation, and snow removal. Its small footprint allows it to reach back alleys and residential areas inaccessible to large equipment, delivering efficient results.

Product Performance

Ultra-compact, Seamless Navigation

With a compact width of 1050mm and a folded pedal length of 2100mm (without bucket), this unit can effortlessly navigate standard doorways and narrow passages, making it ideal for indoor and confined space operations.
Powerful, Quiet and Energy-saving

Powered by a Kubota D1105 diesel engine delivering 14kW of power, this model features low fuel consumption and noise levels ≤93 decibels. Its 30L fuel tank enables extended continuous operation.
High Lift, Heavy Load

With a maximum working height of 2630mm, rated load capacity of 450kg, and maximum lifting force of 530kg, it is designed to meet the requirements of high-position stacking and heavy object handling.
All-terrain Adaptation, Durability

Equipped with high buoyancy rubber tracks featuring 150mm ground clearance, reinforced chassis structure, and wear-resistant critical components to ensure stable operation and extended service life in complex terrains.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.
