HT-JS1000 Hydraulic Double Drive Roller

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT-JS1000

Product Description

The HT-JS1000 is a 1-tonne ride-on vibratory roller specifically engineered for precision compaction in confined spaces. Combining agile manoeuvrability, high-efficiency compaction, robust durability and user-friendly operation, it serves as core equipment for municipal maintenance, small-scale infrastructure projects and auxiliary operations. With an operating weight of 1000kg, the machine features a compact, streamlined design measuring approximately 2100×1000×1650mm. Its minimum turning radius of just 2600mm, combined with 30% gradeability and a fully hydraulic steering system, enables effortless manoeuvring through trenches, inter-building spaces, workshops, and other confined areas inaccessible to larger machinery.

Product Features

The HT-JS1000 roller, characterised by its ‘flexible adaptability, efficient compaction, stable reliability, and user-friendly operation’, is the preferred choice for precision work in small-scale projects. With its compact dimensions (approximately 2100×1000×1650mm) and operating weight of 1000kg, it boasts a minimal turning radius and 30% gradient climbing capability, enabling effortless manoeuvring through confined spaces such as trenches and inter-building clearances. Featuring a fully hydraulic system and dual steel drum design, coupled with 70Hz high-frequency vibration and 25-30 kN vibratory force, it achieves a layered compaction depth of up to 25cm. The steel drums offer excellent edge-to-edge coverage, eliminating compaction dead zones. Powered by renowned engines such as Honda, integrated with hydraulic transmission and electromagnetic clutch vibration control, it delivers stable power output with low failure rates. Equipped with a 60L high-capacity water tank, it effectively suppresses dust and protects wheels during operation. Its intuitive operating logic, combined with an ergonomic cab and adjustable seat, ensures quick familiarisation and reduced fatigue during prolonged use. Suitable for diverse applications including municipal maintenance, utility trench backfilling, and residential redevelopment projects.

Technical Parameters

Model	HT-JS1000
Speed	0 - 8km/h
Turning radius	2000mm
Climbing Ability	30%
Model	Honda GX390/ Changfa CF186FAE
Type	Gasoline engine/diesel engine, air-cooled four-range
Power	13hp/9hp/3600rpm
Fuel tank capacity	5.5 L
Fuel consumption rate	300g/kw·h
Before/after static line load	77/56N/cm
Nominal amplitude	0.5mm
Vibration frequency	75Hz
Excitation force	30kN
Steel Wheel Width	700mm
Steel Wheel Diameter	530mm
Total Length	2100mm
Total Width	860mm
Total Height (Handle Upright)	1600mm
Packaging Dimensions	120mm
Max. Digging depth of blldozer blade	2200mmx950mmx1650mm
Operating Weight	1100kg
Drive	Hydraulic drive/Front and rear wheel drive
Vibration	One-click vibration and electromagnetic clutch
Turn	Hydraulic steering
Sprinkling method	Electrically controlled pressure water spray

Video

Supply Capability

Model	Excited force	Working weight
HT-JS1000	30kN	1100kg
HT-JS1500	30kN	1380kg
HT-JS1200	30kN	3140kg

Inventory Status

In-stock: The HT-JS1000 is available in standard configuration with immediate delivery, supported by a 15-20 working day delivery period. It offers optional configurations including different engines, steel wheel types (smooth wheel/convex wheel), and sprinkler system upgrades. With a working weight of 1 ton, 75Hz high-frequency vibration, 30kN excitation force, and an ultra-narrow 860mm body, this model excels in compacting operations in confined areas such as municipal trenches, sidewalks, and small construction sites.

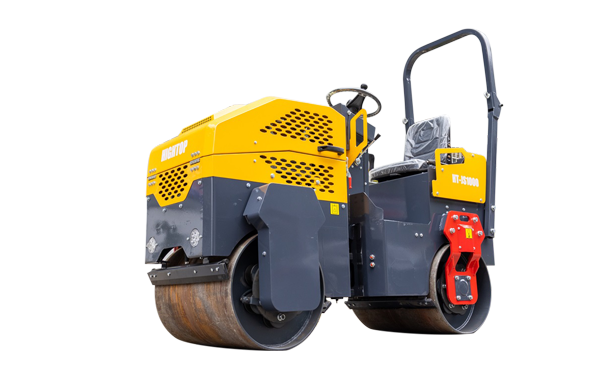

ht js1000 hydraulic double drive roller-1

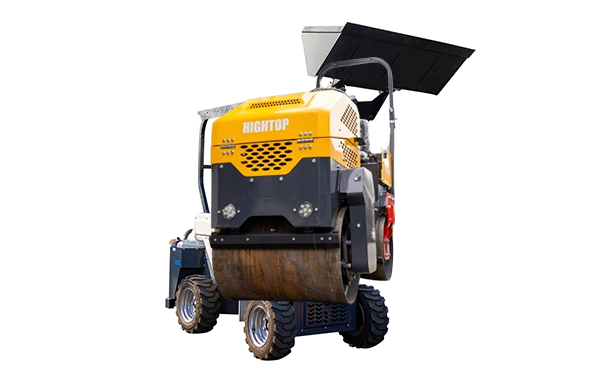

ht js1000 hydraulic double drive roller-2

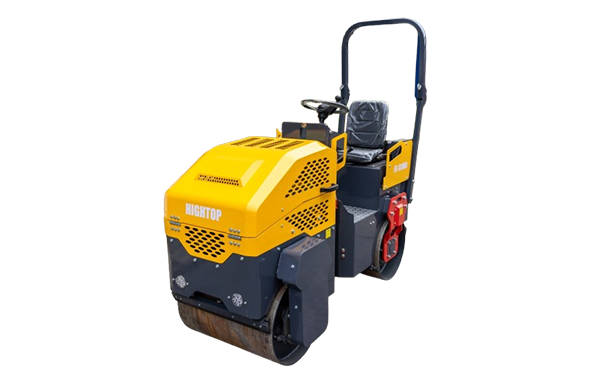

ht js1000 hydraulic double drive roller-3

High-frequency Vibration of Double Steel Wheels for Uniform and Efficient Compaction in Narrow Land

The HT-JS1000 features a dual-steel-wheel design with a 700mm width, delivering uniform compaction from edge to center through 75Hz high-frequency vibration and 30kN excitation force. It offers optional bump wheels for earth compaction or smooth wheels for asphalt surface layers, meeting diverse material compaction requirements.

ht js1000 hydraulic double drive roller-4

ht js1000 hydraulic double drive roller-5

ht js1000 hydraulic double drive roller-6

Usage Scenarios

Compaction of Municipal Roads and Alleys
This equipment is designed for compacting asphalt or concrete in urban alleyways, sidewalks, and curb areas. Its 860mm narrow frame and 2000mm small turning radius enable precise edge operation, eliminating compacting blind spots.

Backfilling and Compaction of Public Trenches
This product is specifically designed for backfilling utility trenches (water, electricity, gas pipelines). Its dual steel wheels ensure precise compaction along the trench, guaranteeing high density and preventing settlement.

Courtyard and Landscape Surface Compaction
This compact machine is ideal for compacting small areas like residential driveways, courtyard paving, and landscape paths. Its compact design prevents collisions with surrounding structures, while high-frequency vibrations ensure a stable subgrade.

Product Performance

Compact and Slim, Moving with Ease

With a width of just 860mm and a minimum turning radius of 2000mm, this machine can maneuver freely in extremely narrow spaces such as trenches and tunnels.
High-frequency Vibration, High-efficiency Compaction

With a vibration frequency of up to 75Hz and an excitation force of 30kN, this system achieves a compaction depth of 25cm, significantly enhancing the density of materials like soil and asphalt while improving operational efficiency.
All-Hydraulic Drive for Smooth Operation

Featuring a fully hydraulic steering and continuously variable transmission (CVT) system, it delivers 30% hill-climbing capability with smooth and precise handling, excelling in complex terrains including slopes and rugged surfaces.
Water Spraying for Dust Control, Long-lasting and Durable

Equipped with an electronically controlled pressure water spraying system to effectively suppress compaction dust; key components utilize high-quality parts such as NSK bearings, and the chassis is treated for rust prevention to extend service life.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.
