HT-L28 Mini Wheeled Loader with Telescopic Arm

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT-L28

Product Description

The HT-L28 is a compact articulated loader featuring a telescopic boom, with dimensions of 3380×1240×2250mm and an operating weight of 2000kg. Its 2600mm turning radius enables operation in confined spaces. Powered by a 23-horsepower engine from a renowned manufacturer, it boasts a rated load capacity of 800kg and a maximum lift height of 3350mm, supported by a stable and efficient hydraulic system. The machine facilitates rapid attachment changes for diverse tools, enabling precise handling of loading/unloading, material transfer, and light excavation tasks. Its durable construction and user-friendly operation make it widely applicable across construction, agriculture, municipal works, warehousing, and other varied working conditions.

Product Features

The HT-L28 Telescopic Boom Compact Articulated Loader features a compact design (3380×1240×2250mm) with a turning radius of just 2600mm, enabling nimble manoeuvring in confined spaces. Equipped with a 23-horsepower engine from a renowned brand, coupled with a stable hydraulic system, it delivers an 800kg rated load capacity and 3350mm lift height to meet diverse loading and unloading demands. Supports rapid attachment changes for versatile task switching. Its durable construction and user-friendly operation combine off-road capability with precision handling, making it suitable for multiple working environments.

Technical Parameters

Model	HT-L28
Max lifting height	3350mm
Maximum pin height	2680mm
Dumping Height of main boom( dumping angle 45°)	2000mm
Dumping reach of main boom	800kg
Lifting height of small boom	2680mm
Dumping height of small boom (dumping angle 45°)	2300mm
Max. Loading capacity of small boom	600kg
Overall length (bucket on ground position)	3380mm
Overall width	1240mm
Overall Height	2250mm
Wheel base	1360mm
Tread	20mm
Min. Ground clearance	190mm
Turning radius	2600mm
Engine model	Rato739/Briggs&Stratton3864/Honda GX690/Kubota D1105
Engine type	Gasoline engine,Air cooled/Diesel oil,Water cooled
Rated power	23HP/18.2kw
Rated speed (rpm)	3600/3000
Max. Torque	71.5
Speed at Max. Torque(rpm)	2200
Number of cylinders	2/3
displacement	739/627/690/1123ML
Rated fuel consumption	240g/kw·h
System Pressure (Mpa)	25MPa
Pump Pressure(Mpa)	31MPa
Driving	4 wheel drive
Steering type	All hydraulic steering
Tire model	23*8.5-12
Brake drum diameter	300
Carrying capacity	500Kg
Bucket volume	0.3m³
Max. Speed	12 Km/h
Net weight	1446/1552Kg
Working weight	2000KG
Gradeability	30%

Video

Supply Capability

Model	Power rating	Total weight of the machine
HT-L28	18.2KW	2000kg
HTDL06	18.2KW	2000kg
HTEL12	18KW	800kg

Inventory Status

In-stock: The HT-L28 Standard Edition is available in stock with delivery within 15-25 working days. It offers customizable options for various engines, accessories, and tire types. Featuring a working weight of 2000kg, rated load capacity of 800kg, maximum lifting height of 3350mm, and an ultra-narrow 1240mm chassis, this model excels in logistics warehousing, agricultural greenhouses, and municipal maintenance applications.

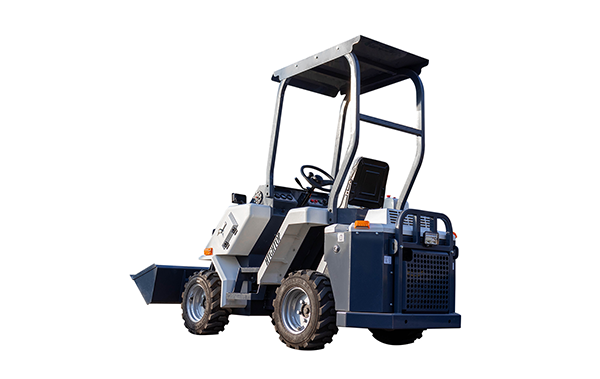

ht l28 mini wheeled loader with telescopic arm-1

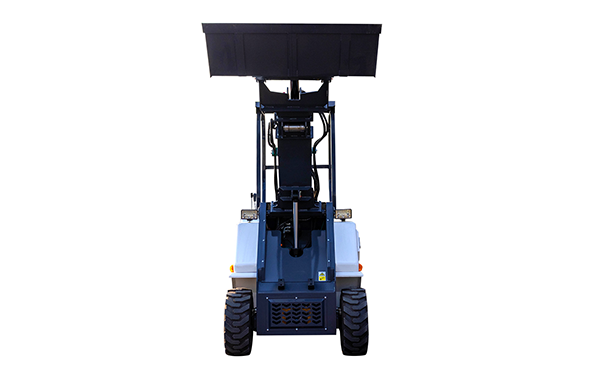

ht l28 mini wheeled loader with telescopic arm-2

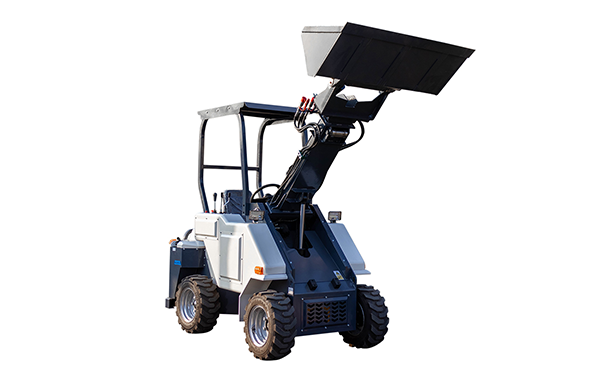

ht l28 mini wheeled loader with telescopic arm-3

Extensible Arm Design for Precise Loading and Unloading with Space-Efficient Operation

The HT-L28 features a unique telescopic arm design with a main arm reaching 3350mm and a secondary arm extending 2680mm. Its rapid tool change system enables compatibility with various attachments including buckets, grabs, hooks, and crushers, facilitating diverse precision operations such as high-level stacking, material handling, and lightweight crushing.

ht l28 mini wheeled loader with telescopic arm-4

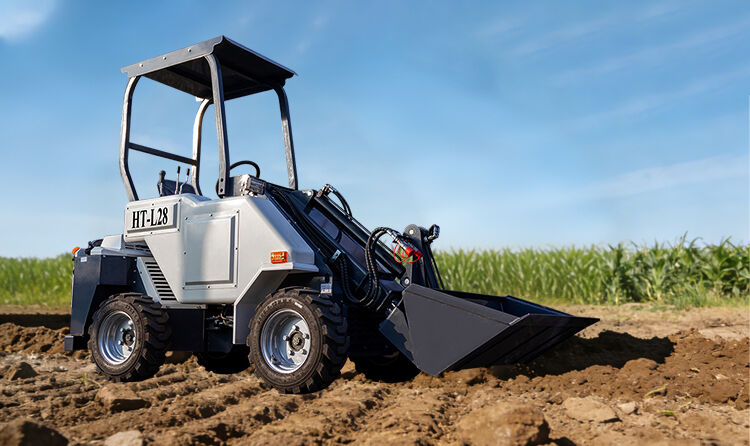

ht l28 mini wheeled loader with telescopic arm-5

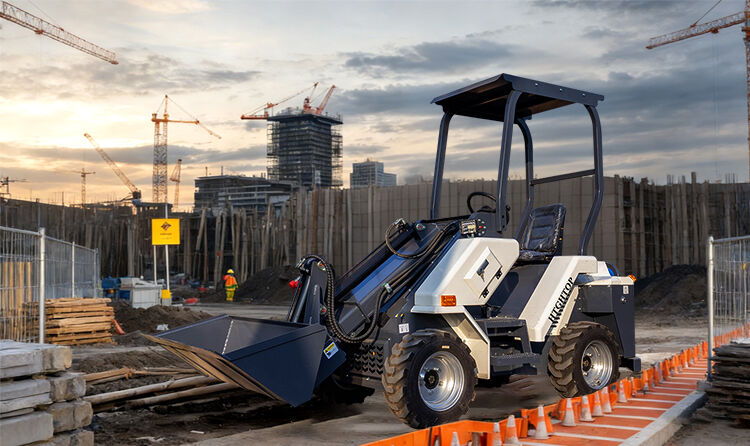

ht l28 mini wheeled loader with telescopic arm-6

Usage Scenarios

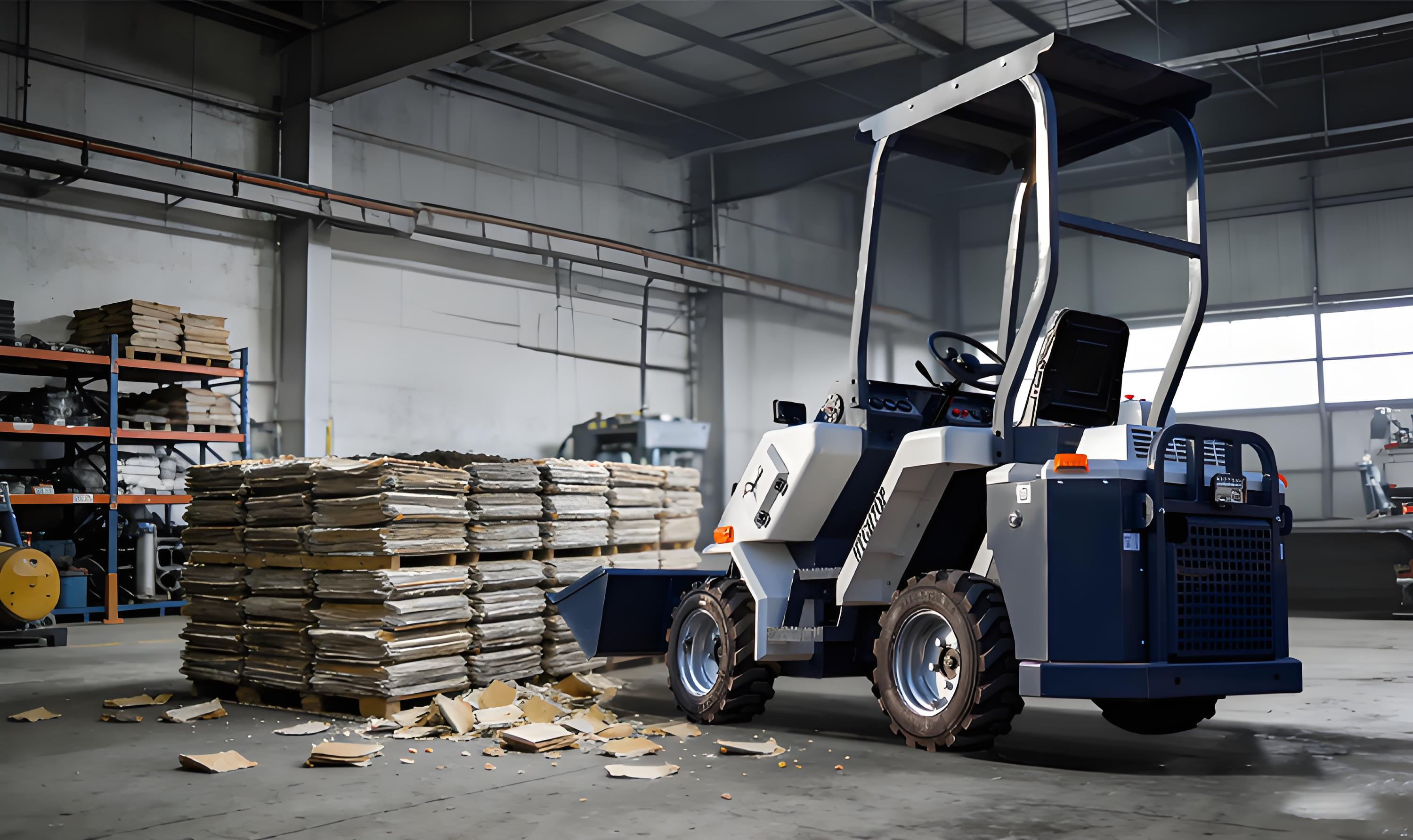

Warehouse Logistics and Indoor Handling
This equipment is designed for material stacking and handling in warehouses and workshops. Its 1240mm narrow frame and 2600mm compact turning radius enable smooth maneuvering through shelf aisles, while the telescopic arm ensures precise storage and retrieval from high-level shelves.

Municipal Maintenance and Street Operations
This vehicle is designed for waste collection, material transportation, and landscaping maintenance in urban backstreets. Its compact body minimizes traffic disruption, while the fully hydraulic steering system ensures precise and agile handling.

Product Performance

Flexible telescopic arms with wide operational range

The main arm has a maximum lifting height of 3350mm, while the auxiliary arm reaches 2680mm. Its telescopic adjustment accommodates various loading/unloading heights, enabling precise and efficient material handling.
Compact and Narrow Body with Agile Steering

With a compact width of just 1240mm and a turning radius of 2600mm, this vehicle features a fully hydraulic steering system, enabling effortless maneuverability in confined spaces like warehouses and greenhouses.
Powerful Performance, All-Terrain Adaptability

Featuring RATO and Honda engines, this vehicle offers 4WD with 30% hill-climbing capability and a minimum ground clearance of 190mm, effortlessly handling slopes, mud, and other challenging terrains.
Fast Change, Multi-function, Economical and Practical

Supports rapid replacement of multiple attachments, expanding multifunctional capabilities such as loading, gripping, and crushing; features a robust structure with convenient maintenance, a one-year warranty for the entire unit, and low overall operating costs.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.
