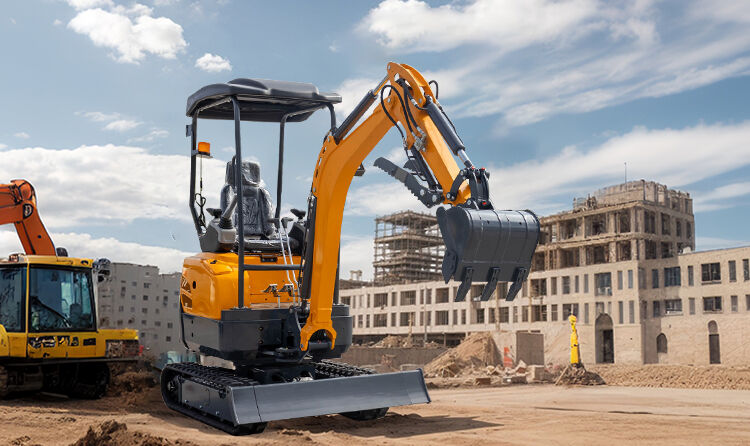

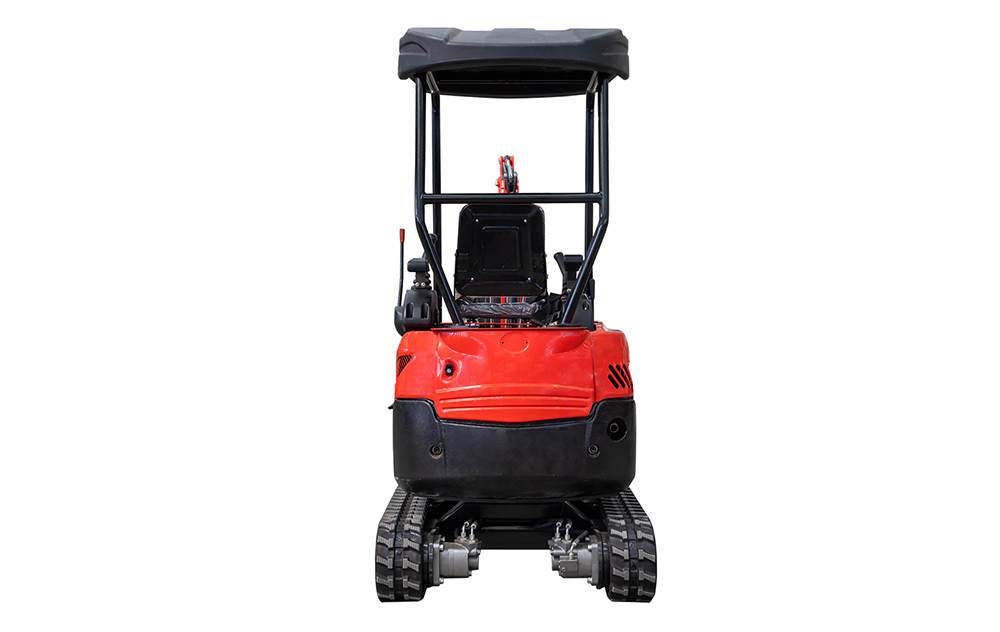

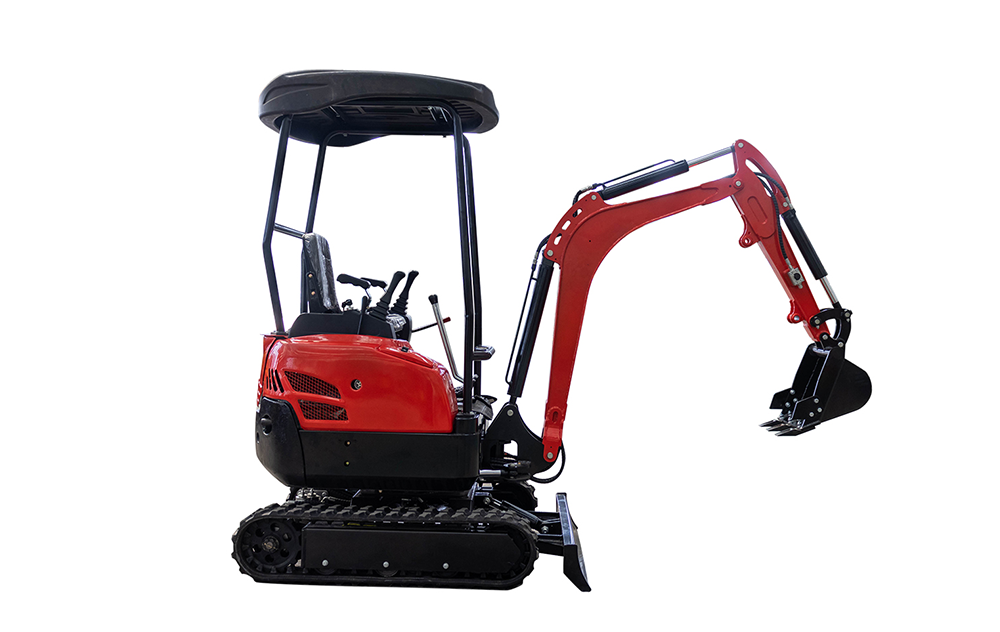

HT18 Mini Hydraulic Tracked Excavator

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT18

Product Description

The HT18 is a 1.8-ton class, high-value micro crawler excavator featuring a compact body (1.1m wide) with zero tail swing. Paired with 75°/45° boom swing, it operates with agility in confined spaces such as narrow alleys, greenhouses, and corners. Powered by a renowned brand engine (rated power 10.2 kW), it delivers stable performance with outstanding fuel efficiency. With a digging depth of 2.06m and a digging radius of 3.5m, it meets the demands of most small-scale projects. Its low ground pressure design combined with 30° gradeability makes it suitable for complex terrains like mountains and muddy conditions. Core components are reliable and easy to maintain. Supports rapid attachment changes including augers and hydraulic hammers, providing comprehensive coverage for agricultural planting, landscaping, municipal pipelines, and residential construction. With low investment costs and rapid return on investment, it is the preferred equipment for small-scale precision operations.

Product Features

1. Equipped with a Renowned Japanese Brand Engine
The HT18 is powered by a globally trusted Japanese KUBOTA engine known for low noise output, fuel-efficient operation, and industry-leading stability. Its sophisticated design ensures clean combustion, smoother load transitions, and dependable performance under long operating hours. Worldwide service networks and easy-access maintenance points make engine support convenient for international customers. Combined with the machine’s streamlined hydraulic system, the engine empowers the HT18 Mini Excavator Compact Power for Precision Jobs with strong digging force and smooth multitasking capability.

2. Telescopic Track Chassis for Flexible Adaptation
The machine incorporates a telescopic track chassis with an adjustable range from 95 cm to 130 cm. The narrow configuration allows the excavator to enter tight indoor spaces, doorways, and restricted access paths, while the widened stance increases stability on uneven ground, slopes, and complex outdoor terrains. This versatility enables operators to shift between delicate precision projects and higher-stability operations easily. The telescopic system greatly enhances the practical adaptability and operational safety of the HT18 Mini Excavator Compact Power for Precision Jobs, making it a truly multifunctional solution for professionals.

Technical Parameters

Model	HT18
Engine	KUBOTA D722,KOOP 292
Min.ground clearance	119mm
Mainvalve	BEIFANG
Tail turning radius	790mm
Working weight(kg)	1800kg
Track ground length	1050mm
Bucket capacity	0.03m³
Track length	1545mm
Power	10.2kw/14kw
Max digging height	2580mm
Swing speed	12RMP
Max.unloading height	1637mm
Gradeability	30
Max.digging depth	2060mm
Overall legnth	4325/1655mm
Max.digging distance	3160mm
Overall width	1100mm
Min.turning radiuse	1711mm
Upper width	990mm
Max.height at minimum turning radius	2048mm
Overall height	2272mm
Standard track shoe width	180mm
Boom swing Angle(left)°	75
Track Gauge	920mm
Boom swing Angle(right)°	45

Video

Supply Capability

Model	Tonnage	Dipper capacity
HT18	1.8 tons	0.03m³
HT18L	1.8 tons	0.02㎡
HT18U	1.8 tons	0.04m³
HT-Y18	1.8 tons	0.04m³

Inventory Status

In-stock: The standard HT18 model is available in stock with 30-day delivery. Custom configurations (e.g., high-altitude engines, extended arms, and specialized attachments) are available for 4-6 weeks. Featuring a 1.8-ton working weight, 10.2kW power output, and adjustable track chassis, this model delivers outstanding cost-effectiveness and operational adaptability for municipal maintenance, agricultural operations, and landscaping projects.

Multifunctional Solution for Precision Operations

The HT18 features a standard quick-change interface, enabling rapid connection with spiral drills, hydraulic breakers, tillage rakes, soil loosening machines, and various-sized buckets. It performs diverse precision operations including excavation, drilling, crushing, leveling, and material cleaning, meeting demands across construction, agriculture, municipal works, and other fields.

Usage Scenarios

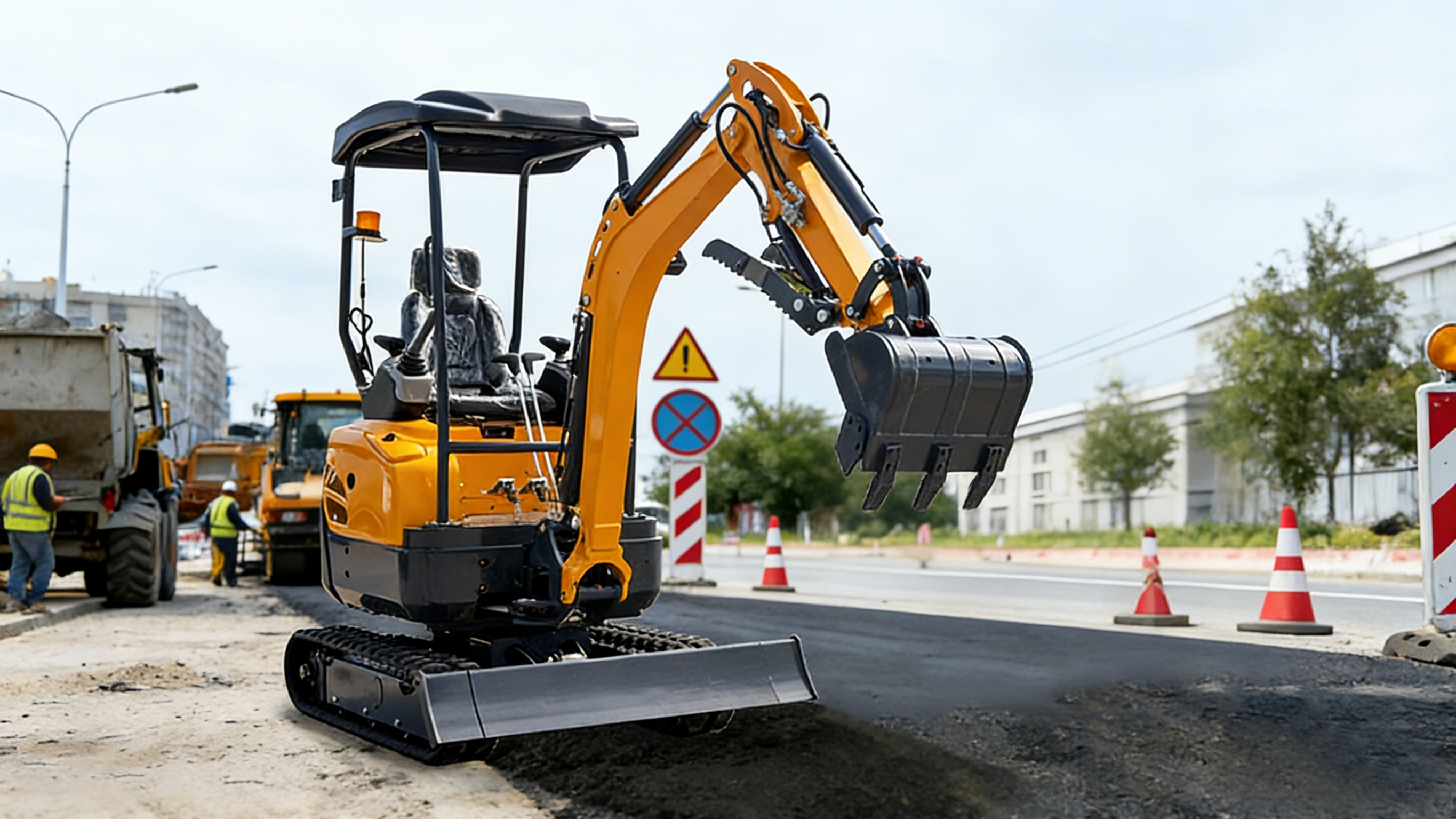

Municipal and Road Maintenance
With its 1100mm compact width and zero tail swing design, the HT18 excavator effortlessly navigates sidewalks, back alleys, and older neighborhoods. It excels at pipeline excavation, localized repairs, and curb maintenance, minimizing disruption to urban traffic.

Civil Engineering and Residential Construction
This equipment is ideal for small-scale projects like foundation excavation, yard leveling, and septic tank digging in self-built houses. Its 75°/45° boom swing allows safe operation near walls and fences, effectively preventing collisions.

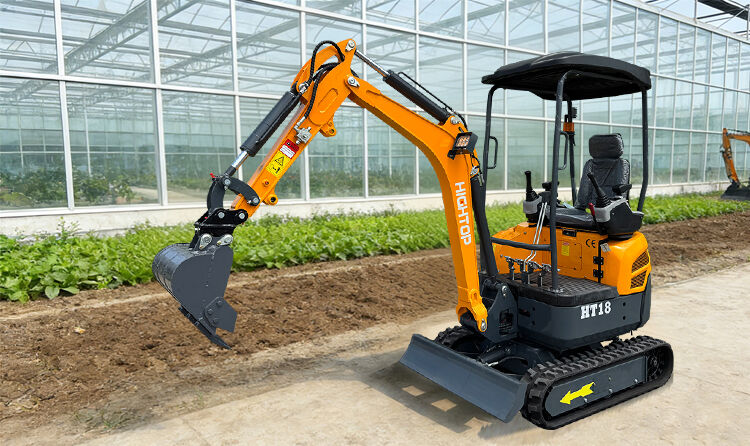

Agriculture and Greenhouse Operations
The low ground pressure and adjustable tracks enable it to effortlessly access orchards, vineyards, and greenhouses, performing precision farming tasks like planting hole digging, irrigation ditch digging, and stump removal.

Product Performance

Tailless compact, easy to maneuver

Featuring a zero-tail swing-body design with a 790mm tail rotation radius and 1100mm total width, it effortlessly navigates narrow tunnels, doorways, and indoor spaces.
Reliable Power, Energy-efficient and High Efficiency

Powered by a Kubota D722 engine delivering 10.2kW, this model features low fuel consumption, quiet operation, and stable performance, designed for extended working hours.
Adjustable Tread for Adapting to Various Terrain

The innovative telescopic track chassis allows width adjustment between 950-1300mm, ensuring both narrow-space maneuverability and terrain stability in complex environments.
Precise Control, Easy Maintenance

The hydraulic pilot control system features sensitive operation, with key maintenance points centrally arranged. Its quick-release design simplifies and enhances daily maintenance efficiency.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.

FAQ

Q:Who are we?

A:We are HIGHTOP Machinery Group.We are based in Shandong, China, start from 2015, sell to:
North America (20.00%)/Domestic Market (20.00%)/Eastern Europe (15.00%)/Western Europe (10.00%)
Oceania (9.00%)/South America (5.00%)/Northern Europe (5.00%)/Southeast Asia (4.00%)
Eastern Asia (3.00%)/Mid East (2.00%)/Central America (2.00%)/Southern Europe (2.00%)
South Asia (2.00%)/Africa (0.00%)

Q:What sizes of excavators does HIGHTOP offer?

A:(1) 0.6-5 tons — Ideal for small-scale and home projects like landscaping or trenching.
(2) 6-15 tons — Suitable for medium-scale construction and agricultural work.
(3) 16-50 tons — Built for heavy-duty industrial and mining operations.

Q:What are the advantages of HIGHTOP excavators?

A:HIGHTOP excavators are built with advanced technology and superior materials, ensuring high performance, durability, and efficiency in various working conditions.

Q:What preferential policies are available for becoming an overseas agent or distributor of HIGHTOP?

A:We offer competitive pricing, marketing support, technical training, and dedicated after-sales service for our overseas partners. Contact us for detailed partnership terms.

Q:How many days does it take to deliver a HIGHTOP machine?

A:Delivery time typically ranges from 15 to 30 days depending on the model and destination. We ensure timely shipping and provide tracking information throughout the process.

Q:How long does delivery take for bulk orders?

A:Delivery times depend on the quantity and location, but with our global distribution network, we ensure timely and reliable shipping.

Q:Are smaller excavators (0.6–5 tons) suitable for home use?

A:Yes, our compact excavators are specifically designed for home and light construction projects. They are easy to operate, fuel-efficient, and compact enough to fit in tight spaces like backyards and gardens.

Q:Can I get discounts for bulk purchases?

A:Yes, we offer preferential prices for bulk orders, making it an excellent option for dealers and distributors.

Q:What after-sales services does HIGHTOP provide?

A:HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer.

Q:What payment methods does HIGHTOP support?

A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, Express Delivery
Accepted Payment Currency: USD, EUR, CAD, AUD, HKD, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian

Q:How do I order an excavator?

A:Contact us here directly and send an inquiry DIRECTLY here. Our team will assist you in choosing the right excavator for your needs and provide a detailed quote.
