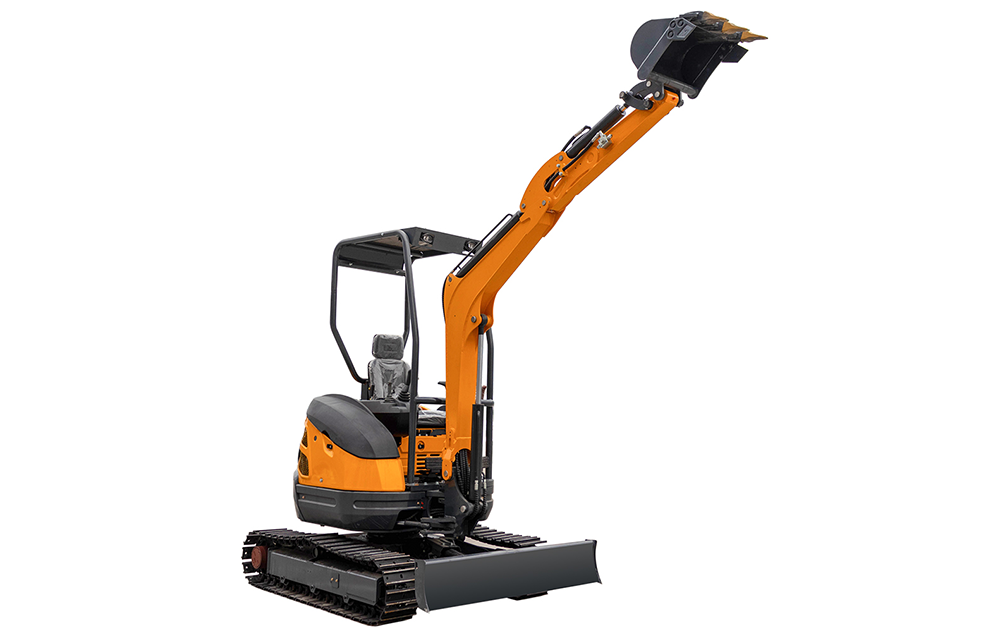

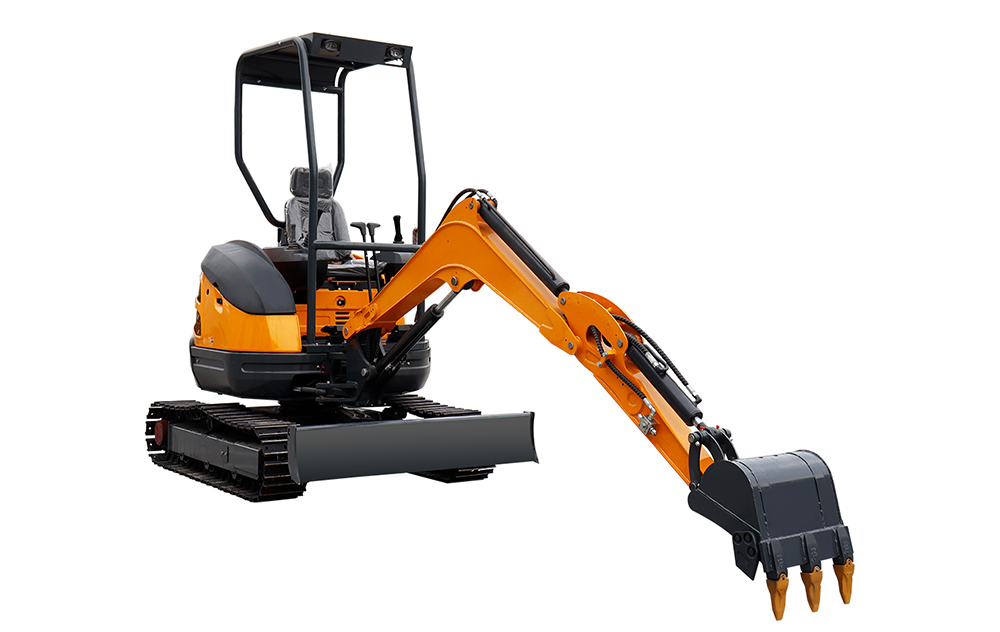

HT25 Mini Garden Excavator

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT25

Product Description

The HT25 is a 2.5-tonne compact excavator, available with premium engines such as the Kubota D1105 (rated power 14-22.1kW), paired with hydraulic components from brands like Eaton and featuring fully hydraulic pilot operation. Delivering stable power and precise control, its 700mm compact tail swing radius combined with independent boom swing capability, alongside an extendable undercarriage and 1480mm track ground contact length, enables agile manoeuvring in confined spaces and effortless navigation of complex terrain. Standard auxiliary lines facilitate rapid attachment of various tools such as breakers and augers. The integrated sheet metal body and cylinder protection design, alongside customisable colour and component options, combine safety, durability and operational convenience. This makes it an efficient solution for small-scale municipal, agricultural, forestry and building renovation projects.

Product Features

Powerful and Efficient Performance：Equipped with high-quality three-cylinder water-cooled diesel engines such as Kubota D1105 or Laidong LL385B, delivering a rated power of 14-22.1KW. It features stable power output, uniform heat distribution, and low fuel consumption, complying with environmental standards for energy-saving and eco-friendly operation.

Compact and Flexible Maneuverability：Boasts a ultra-small tail swing radius of only 700-750mm, combined with a boom offset function (75° left swing and 55° right swing). This design allows unobstructed 360° rotation, making it easy to work in tight spaces like narrow alleys and indoor areas without colliding with surrounding structures.

Versatile Attachment Compatibility：Standard-equipped with a hydraulic three-way shut-off valve, enabling quick oil circuit switching without pipe disconnection. It can be easily matched with various attachments such as hydraulic quick couplers, narrow buckets, hydraulic breakers, augers, rotating grapples, and tilt buckets.

Durable and Easy Maintenance：Features a one-piece stamped sheet metal outer shell for high structural strength. It is equipped with upper cylinder protection devices, and the oil drain pipes adopt a hidden layout to avoid sun exposure and operational wear, extending the service life of the hydraulic system.

Technical Parameters

Model	HT-25
Engine model	Kubota 1105
Bucket Capacity	0.07 m3
Rated power	14kw/2400rpm
Total Weight	2510Kg
Engine form	Water-cooled in-line three-cylinder engine
Machine width	1300/1500mm
Hydraulic pump	Plunger pump
Max.digging force	19.5KN
Walking motor	Li Kechuan
Swing speed	9.5rpm
Rotary motor	Eaton motor
Walking speed	2.6/4.5Km/h
Max.digging height	3980mm
Fuel tank capacity	26L
Maximum loading and unloading height	2610mm
Maximum flow	1.216L/cc
Max.digging depth	2430mm
Rated work pressure	20.6MPa
Maximum Digging Range	4136mm
Operation method	hydraulic pilot
The maximum excavation range on the ground	4100mm
Track width	250mm
The minimum turning radius of the tail	750mm
Overall size	38501300mm/ 15002380mm
Working device turning radius	1850mm
Minimum ground clearance	230mm
Boom swing	75/55°

Video

Supply Capability

Model	Tonnage	Dipper capacity
HT25	2.5 tons	0.07m³
HT25U	2.5 tons	0.06m³

Inventory Status

In-stock: The HT25 series is available as standard equipment with 20-30 business days delivery. Customizable hydraulic fittings, cab configurations, and special condition adaptations are available upon request. Featuring a 2.5-ton working capacity, Kubota powertrain, adjustable chassis, and ultra-short turning radius, this model is an efficient choice for agricultural, forestry, horticultural, construction retrofitting, and complex terrain operations.

Multi-functional attachments compatible with all operation types

The HT25 is equipped with a standard hydraulic three-way stop valve and quick coupling system, enabling seamless connection with various attachments such as narrow buckets, hydraulic breakers, spiral drills, rotating grabs, and inclined buckets. This allows for diverse operations including excavation, crushing, drilling, gripping, and leveling, meeting the needs of municipal, agricultural, and construction scenarios.

Usage Scenarios

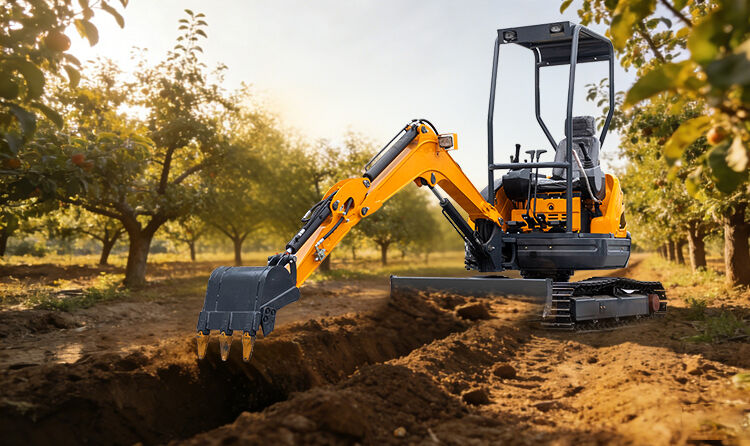

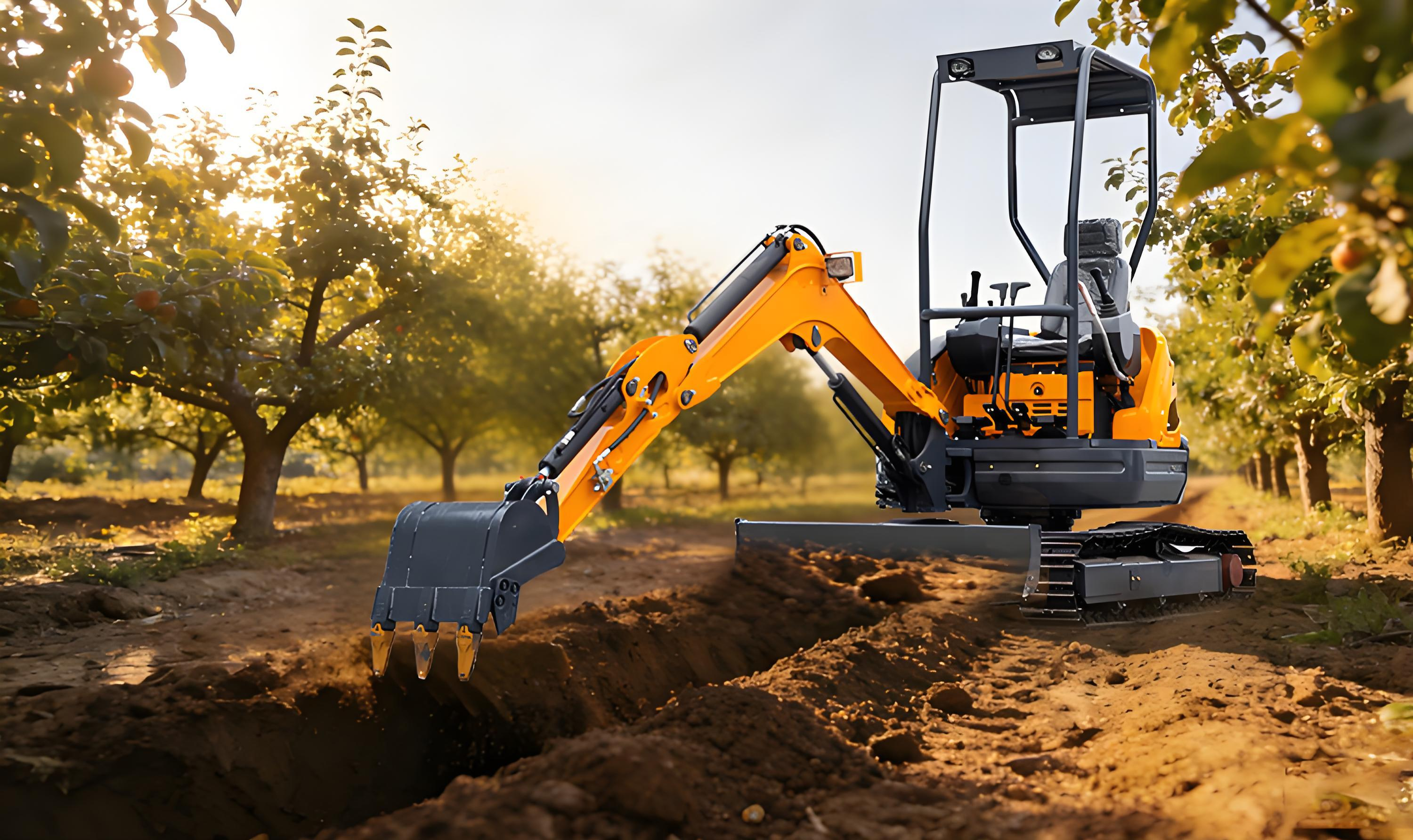

Agriculture, Forestry, Horticulture, and Greenhouse Operations
This equipment is designed for orchard cultivation, including trenching and fertilization, tree planting with hole excavation, greenhouse deep plowing, and drainage ditching. Its compact frame and adjustable tracks provide effective crop protection, enabling precision agricultural operations.

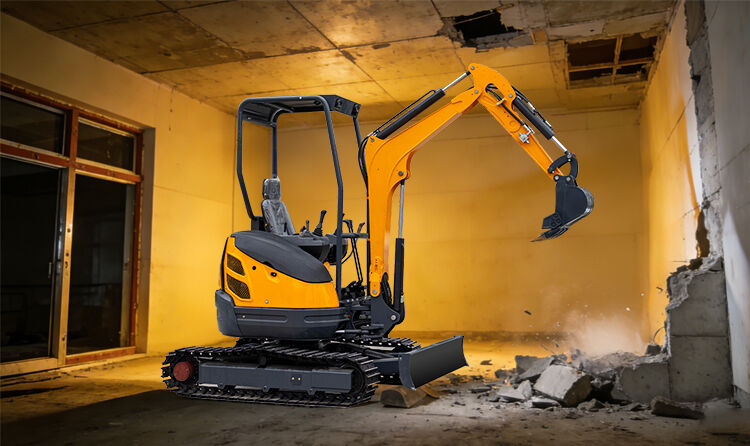

Building Renovation and Interior Engineering
With an ultra-small 700-750mm tail rotation radius and boom tilting capability, this equipment enables flexible operations in indoor spaces, basements, and historic building renovations. It prevents structural damage while efficiently handling demolition, trench excavation, and backfilling tasks.

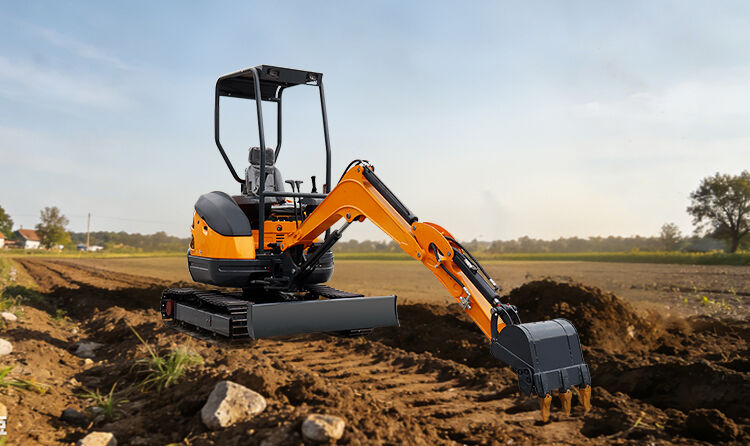

Construction in Rural Areas and Complex Terrain
The chassis features adjustable height and a high ground clearance, with a 40° climbing capability. It is ideal for challenging terrains like farmland improvement, terraced field restoration, and river dredging, delivering exceptional stability.

Product Performance

Ultra-small Rotary, Flexible Operation

With a mere 700-750mm tail rotation radius and the boom's 75° left/right deflection capability, it can perform collision-free, all-around operations even in extremely confined spaces.
Powerful, Energy-saving and Reliable

Powered by Kubota's D1105 three-cylinder water-cooled diesel engine, delivering 14-22.1kW of power with low fuel consumption, emission compliance, and smooth, sustained performance.
Adjustable Chassis for Enhanced Mobility

The tracked chassis width is adjustable between 1300-1500mm, with a 230mm ground clearance, enabling effortless navigation through muddy terrain, slopes, and other challenging conditions.
Robust Structure, Easy Maintenance

The integrated stamping metal body with protective devices for key cylinders and concealed hydraulic piping significantly enhances durability while simplifying routine maintenance.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.
