ht380 mini skid steer loader with 015m3 bucket capacity543758-0

HTS50 Heavy-duty Sliding Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HTS50

Product Description

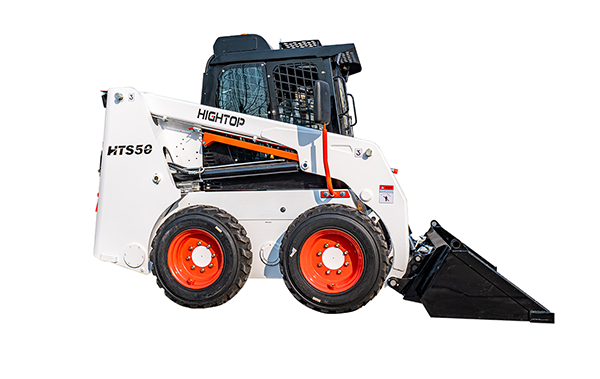

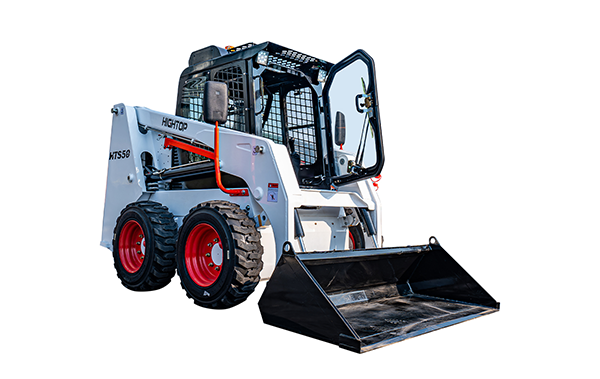

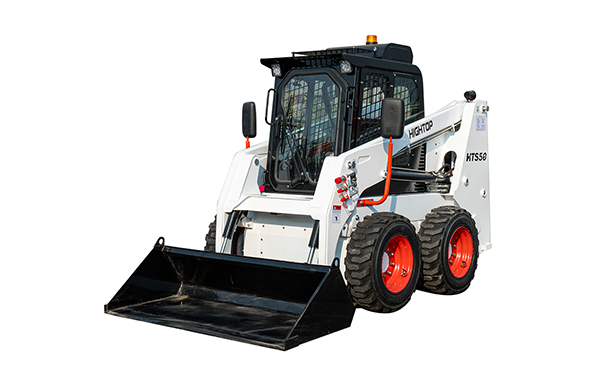

The HTS50 tracked skid steer loader weighs 3200kg, featuring a 36kW engine from a renowned brand and a premium hydraulic system. With a 700kg load capacity and a 0.3m³ bucket, it is suited for heavy-duty applications. Its versatile tracked design and quick-change interface facilitate multiple attachment changes. The compact chassis holds multiple certifications and is adaptable for diverse operational environments.

Product Features

The HTS50 is a tracked skid steer loader designed for heavy-duty operations and multi-scenario adaptability. With an operating weight of approximately 3200kg, with dimensions of 2950×1402×2050mm. It is equipped with a 36kW (50hp) diesel engine from renowned brands such as Kubota or Yanmar, paired with a high-efficiency hydraulic system from Rexroth or Eaton (60L/min rated flow). delivering robust and stable power output. With a rated load capacity of 700kg and a bucket volume of 0.3m³, it effortlessly handles demanding tasks such as aggregate handling and concrete demolition. Fitted with 300×52.5 specification tracks and 140mm ground clearance, it boasts low ground pressure and excellent manoeuvrability, enabling stable operation on rugged, muddy terrain. Its compact chassis and agile steering design also suit confined construction spaces, facilitating easier relocation and transport.

Technical Parameters

Max.Operation height	4058mm
Height of the bucket hinge pin	3077mm
Height to Cabin top	2007mm
Max.horizontal height of the bucket bottom	2908mm
Length without bucket	2700mm
Length with bucket	3413mm
Max. unloading height	2303mm
Unloading distance	675mm
Wheelbase	999mm
Departure angle	23°
Ground clearance	185mm
Rear turning radius	1627mm
Machine width	1469mm
Width of the tire edge	1740mm
Width of the bucket edge	1780mm
Bucket capacity	0.35m³
Diesel fuel tank capacity	88L
Hydraulic fuel tank capacity	70L
Rated working capacity	750kg
Overturning working capacity	1500kg
Operation weight	3003kg
Max. working speed	12km/h
Standard Engine	Xinchai490
Power	36.8KW/2500rpm
Operation Method	Mechanical/ Hydraulic control

Video

Supply Capability

Model	Power rating	Total weight of the machine
HTS50	36.8KW	3003kg
HTS45	37KW	2700kg
HTS60	36KW	2800kg

Inventory Status

In-stock: The HTS50 standard model is in stock with delivery guaranteed within 25-35 working days. Customizable with engines from various brands, reinforced attachments, and specialized configurations to meet specific operational requirements. Featuring a 3.2-ton working weight, 36.8kW high-performance engine, 0.3m³ bucket capacity, and all-terrain tracked system, this model excels in mining, construction, municipal projects, and large-scale agricultural operations.

ht380 mini skid steer loader with 015m3 bucket capacity543758-1

ht380 mini skid steer loader with 015m3 bucket capacity543758-2

ht380 mini skid steer loader with 015m3 bucket capacity543758-3

International Standardized Quick-Change System: Achieving True Multi-Functionality in a Single Device

The HTS50 comes standard with a universal quick-change interface, enabling rapid attachment of various attachments including buckets, crushers, spiral drills, grabs, sweepers, and trenchers. This design allows effortless handling of diverse heavy-duty operations such as material handling, demolition, drilling, excavation, and site cleanup.

ht380 mini skid steer loader with 015m3 bucket capacity543758-5

ht380 mini skid steer loader with 015m3 bucket capacity543758-6

Usage Scenarios

Mine and Construction Site
Designed for heavy-duty material handling including sand, gravel, aggregates, and construction materials, this crushing hammer excels in concrete demolition and rock crushing. Its robust power and tracked system ensure reliable performance in rugged construction environments.

Municipal Engineering and Road Maintenance
This compact machine is designed for street sweeping, ditch excavation, asphalt repair, and winter snow removal. Its compact design adapts to narrow urban spaces, efficiently completing municipal maintenance tasks.

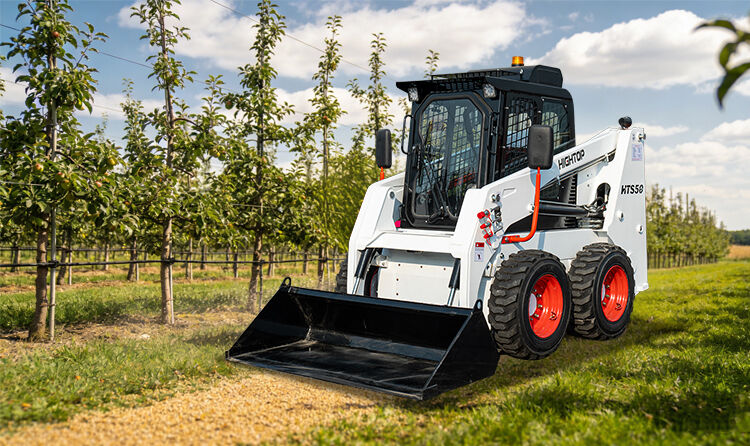

Large-scale Agriculture and Land Consolidation
Designed for field leveling, water conservancy excavation, and timber transportation, this equipment delivers robust load-bearing capacity and all-terrain capability to handle complex agricultural environments including muddy terrain and sloping surfaces.

Product Performance

Strong Power, Stable Output

Powered by a new diesel 490 engine with 36.8kW rated power, it is paired with a high-efficiency hydraulic system from Rexroth/Eaton, delivering 60L/min rated flow for effortless handling of high-intensity continuous operations.
All-terrain tracked vehicles with strong mobility

Equipped with 300×52.5 specification tracks, featuring large ground contact area and low pressure, with a ground clearance of 185mm, it adapts to complex terrains including rugged, muddy, and sloping areas.
High Lift, Heavy Load

With a maximum working height of 4058mm, rated load capacity of 700kg, and overturning load capacity of 1500kg, it meets the requirements for high-position stacking and heavy material handling.
Quick Multi-Function Switching with Simple Operation

Equipped with an internationally standardized quick-change interface for rapid tool switching; the joystick control system adheres to excavator operation logic, offering wide visibility and convenient maintenance.

Global Service Network, Worry-Free After-sales Service

Hightop Group operates 10 global warehouses and service centers, offering a 12-month warranty and lifetime technical support. We provide operational training, remote diagnostics, and rapid spare parts supply to ensure the equipment operates efficiently throughout its lifecycle.

1.24/7 Multilingual Online Support

Our professional engineers are available year-round to provide timely assistance. We respond promptly to equipment operation inquiries and troubleshooting needs, overcoming language barriers and time zone differences to better support our international customers.

2.Intelligent Diagnosis & Remote Commissioning

We offer structured online troubleshooting guidance to accurately identify equipment issues. Through video-based remote assistance, our technical team supports equipment start-up and commissioning, helping reduce downtime and improve operational efficiency.

3.One-Year Warranty with Free Spare Parts

All machines come with a one-year warranty. During the warranty period, original spare parts are provided free of charge, helping reduce maintenance costs and ensure stable equipment performance.

4.Comprehensive Knowledge Support

We provide electronic manuals, operation and maintenance guides, and repair videos. Combined with online technical guidance, these resources help customer teams carry out efficient and independent equipment maintenance.
