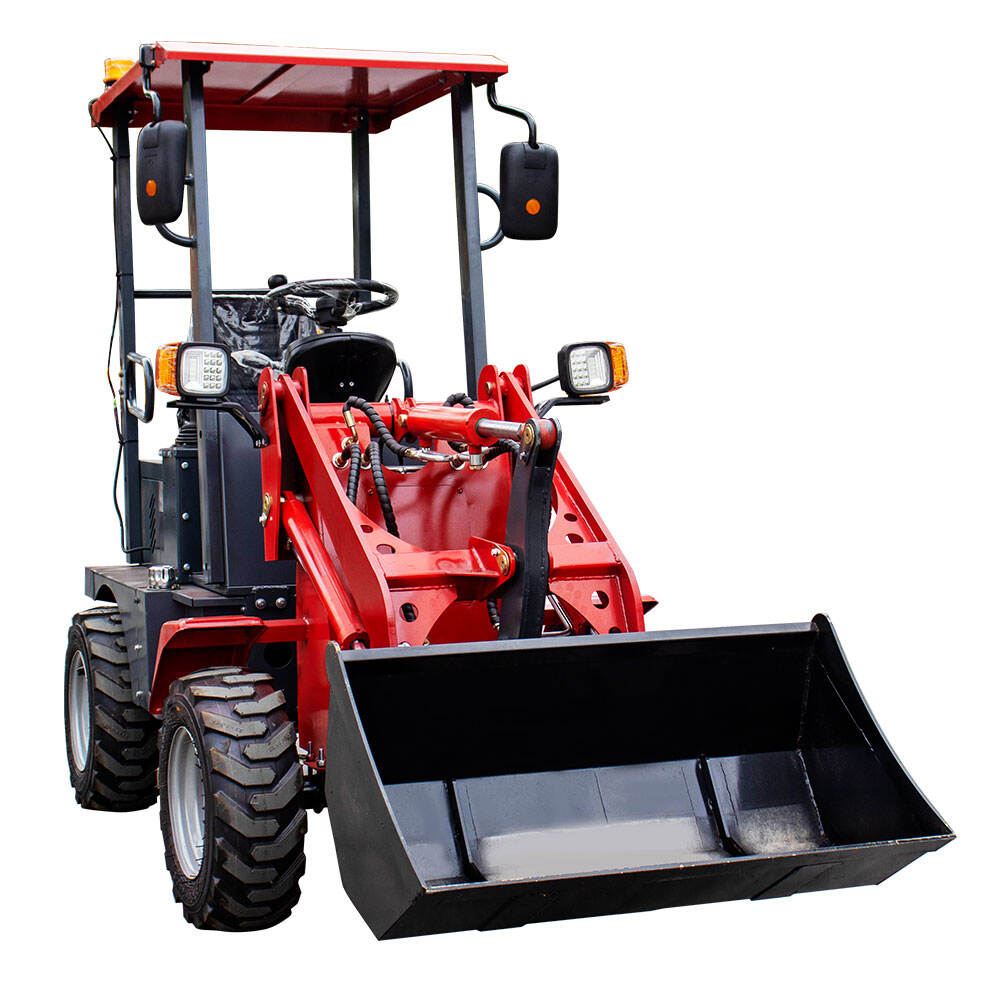

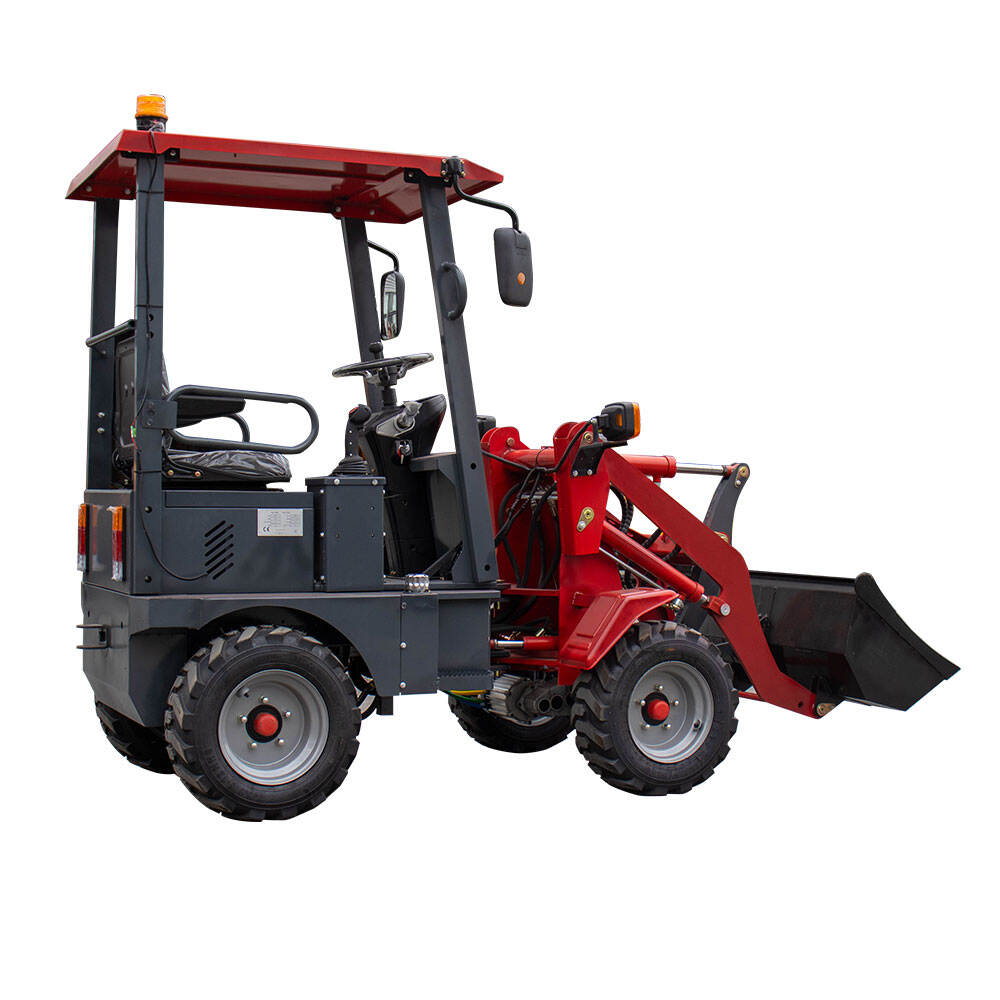

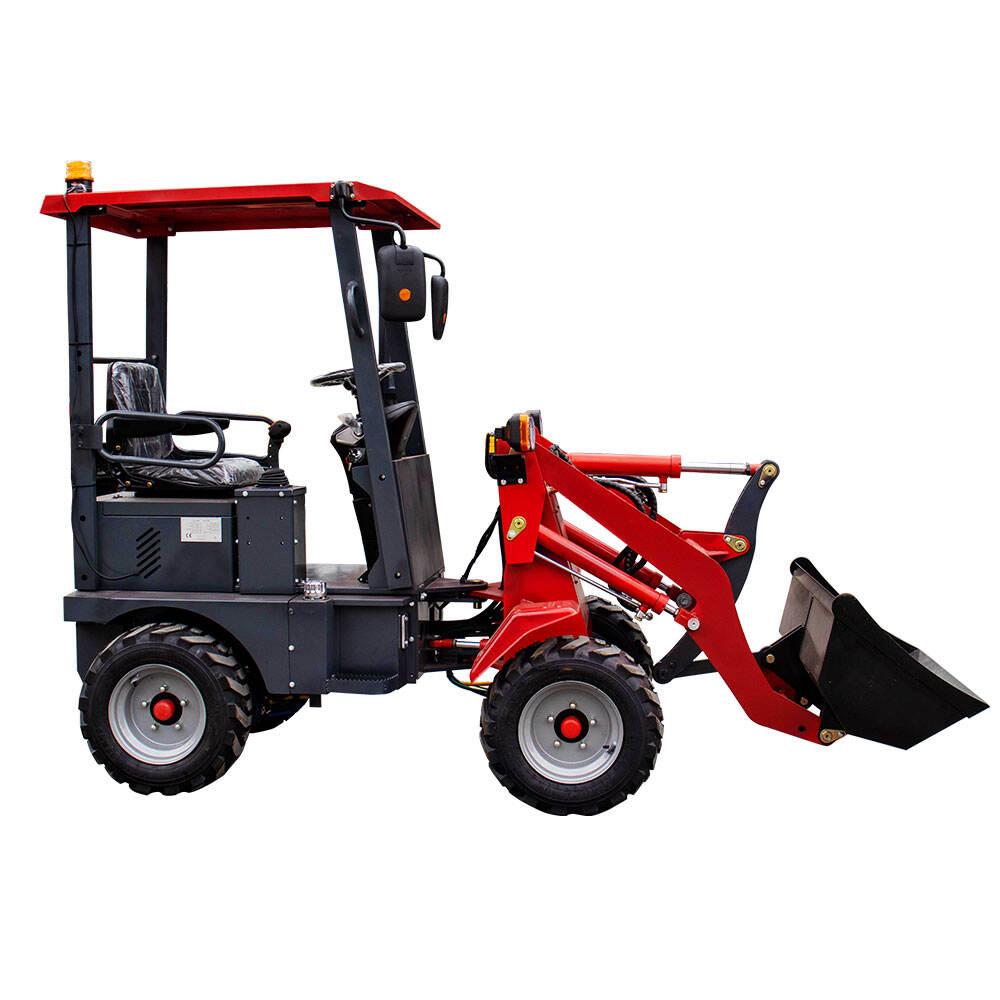

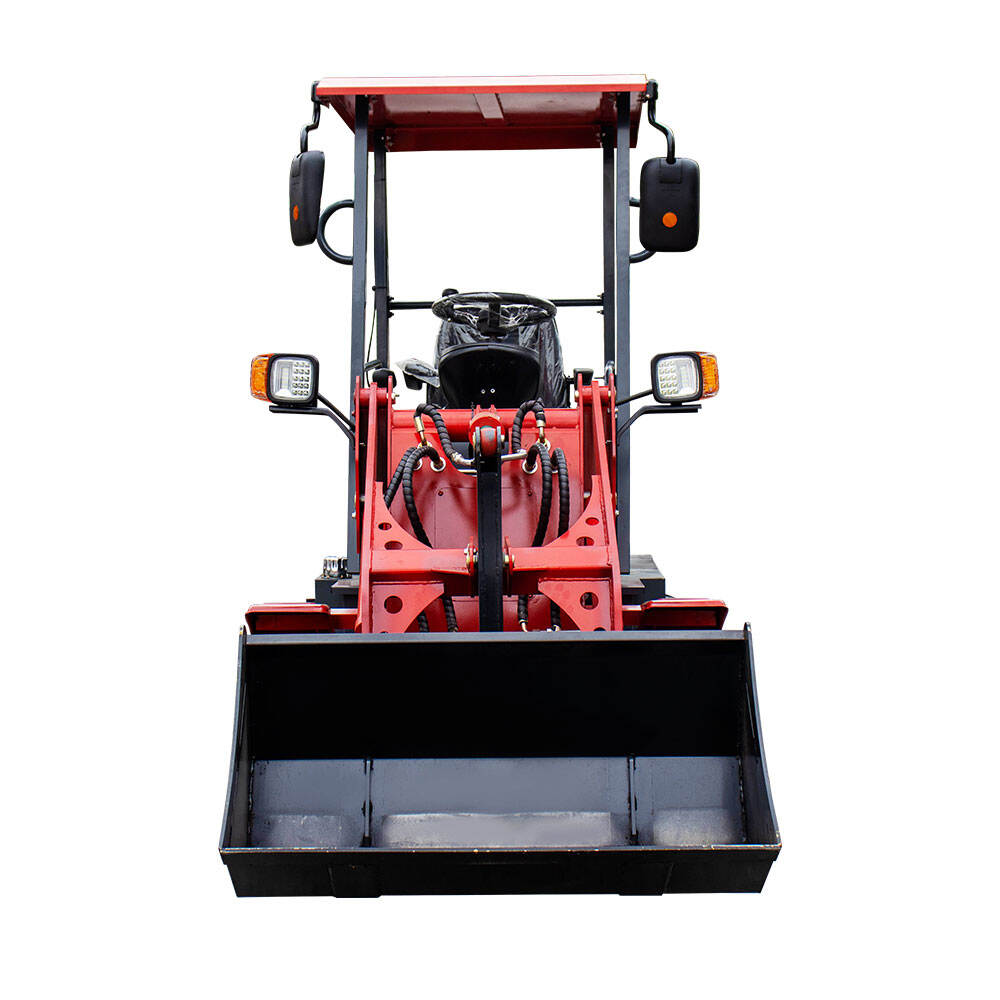

HT150E High Power Loader Crawler Electric Front End Wheel Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT150E

Inquire Now

Product Description

Applications

Parameters

Features

Advantages

Product Description

The HT150E Electric Mini Skid Steer Loader is a highly efficient machine designed specifically for confined spaces and environmentally sensitive operations. Its compact chassis and overall weight of just 1260kg, coupled with a tight turning radius of 3100mm, ensure agile and unrestricted manoeuvrability. It effortlessly navigates restricted environments such as greenhouses, warehouses, and narrow construction sites. Powered by five 120Ah maintenance-free batteries and a 60V DC intelligent controller, it incorporates multiple safeguards including overload, overcurrent, and under voltage protection. The efficient, durable motor delivers continuous operation for up to six hours, while its zero-emission and low-noise characteristics make it ideal for environmentally sensitive indoor and outdoor tasks. With a rated load capacity of 500kg, a bucket volume of 0.3m³, and a maximum lifting height of 2520mm, it achieves rapid lifting response within 5-7 seconds. Compatible with various attachments, it facilitates diverse operations including loading/unloading, material handling, and levelling. Combining operational convenience with cost-effectiveness, it serves as a practical choice for agriculture, landscaping, logistics, and small-scale engineering applications.

Applications

Landscape Gardening:
In landscaping operations, this loader can be employed to transport materials such as soil, sand, and saplings for tasks including tree planting, road construction, and turf laying. It can operate in confined spaces such as garden paths and park corners, undertaking site clearance and land levelling to enhance work efficiency.

Construction site:
On small construction sites or within specific areas of larger sites, the HT150E can be employed to transport building materials such as bricks, sand, gravel and cement, whilst also clearing construction waste. Its electric drive system produces no exhaust emissions, making it suitable for operation in indoor or poorly ventilated spaces such as basements and warehouses.

Logistics and Warehousing:
In warehouses, logistics centres and similar facilities, the HT150E can be employed for loading and unloading goods, transferring cargo from transport vehicles to warehouse shelving areas, or for short-distance goods handling. Its low-noise operation minimises disruption to the working environment within warehouses, while its electric drive system offers cost-effective operation, making it well-suited for frequent use.

Road maintenance:
It can be employed in road maintenance and upkeep tasks to clear roadside weeds and remove debris from drainage channels, whilst also transporting materials such as asphalt and crushed stone required for road repairs. On narrow road construction sites, its agile manoeuvrability and operation enable it to complete tasks without disrupting traffic flow.

Parameters

Model	HT-150E
Walking motor	2500w+2500w Brushless motor(Upgradeable to 3000w)
Transaxle	Heavy duty power bridge
Walking controller	30 tube brushless controller x 2"
The upper arm thickness	16mm
Weight	750kg
Battery size	Chaowei brand Lead acid 60V 100AH
Charging voltage	220V
Charging time	5-6h
Lifting Height	2700mm
Dimension	2970mmx1170mmx2000mm(Including bucket length)
Lifting motor	1800w Brushless motor
Steering method	Hydraulic steering
Hydraulic controller	24 tube brushless controller
Tire Size	23x8.5-12 Vacuum off-road tire
Rated loading capacity	400kg
Battery capacity	5 pcs of 12V100ah(customizable)
Output voltage	60V
Endurance	4-5h
Dumping height	2100mm
Bucket size	600mmx1000mmx300mm
Optional accessories	Fork, hydraulic grapple, snow blade
Paiting and color	Spray painting process; Grey+Red color scheme (color can be customized)

Features

Beautiful appearance, compact structure, standard forklift operatorconsole, high safety factor, five 120 maintenance-free batteries,equipped with intelligent 60Vcontroller, brake power off, under voltageprotection, over current protection, overload protection, speed limitprotection, Under speed protection, front and rear axle differentialprotection.The above protection functions make the motor moreenergy efficient and durable, and can work continuously for six hours.

Advantages

Highly adaptable to environmental requirements

With zero exhaust emissions from pure electric drive and noise levels below 75 decibels, it is perfectly suited for enclosed or environmentally sensitive settings such as basements, greenhouses, and warehouses.
Aligned with the ‘dual carbon’ policy objectives, it requires no adaptation to evolving fuel emission standards and faces no usage restrictions in strictly regulated environments like urban construction sites and livestock farming operations.

Flexible and efficient operations

Compact chassis with a lightweight 1260kg design and a tight 3100mm turning radius, enabling effortless manoeuvring through confined spaces such as narrow passages and construction site corners.
The motor delivers instantaneous maximum torque for outstanding digging force, with rapid lifting response within 5-7 seconds. This significantly enhances efficiency during short-distance, high-frequency operations compared to conventional fuel-powered equipment.

Economical, durable and hassle-free

Energy consumption costs amount to merely one-third to one-quarter of diesel equipment, with no complex power transmission structures and a low failure rate, yielding annual maintenance savings of 30% to 40%.
Equipped with a maintenance-free battery pack supporting six hours of continuous operation, it features multiple protection systems including overload and undervoltage safeguards. Extended core component lifespans minimise downtime and lost productivity.

Multi-functional adaptation

Supports rapid attachment changes for forks, clamps and other implements, enabling versatile operations including loading, unloading, handling and levelling with strong cross-sector adaptability.
Features ergonomic design with a well-organised cab layout and intuitive controls, complemented by optimised visibility for low learning curves and reduced fatigue during extended shifts.
