MINI DUMPER

HT500 Mini Crawler Transporter Rubber Dump Trucks Dumper for Sale

Place of origin Shandong China
Brand Name Hightop
Certification CE, EPA, ISO
Model Number HT500-1

Product Description

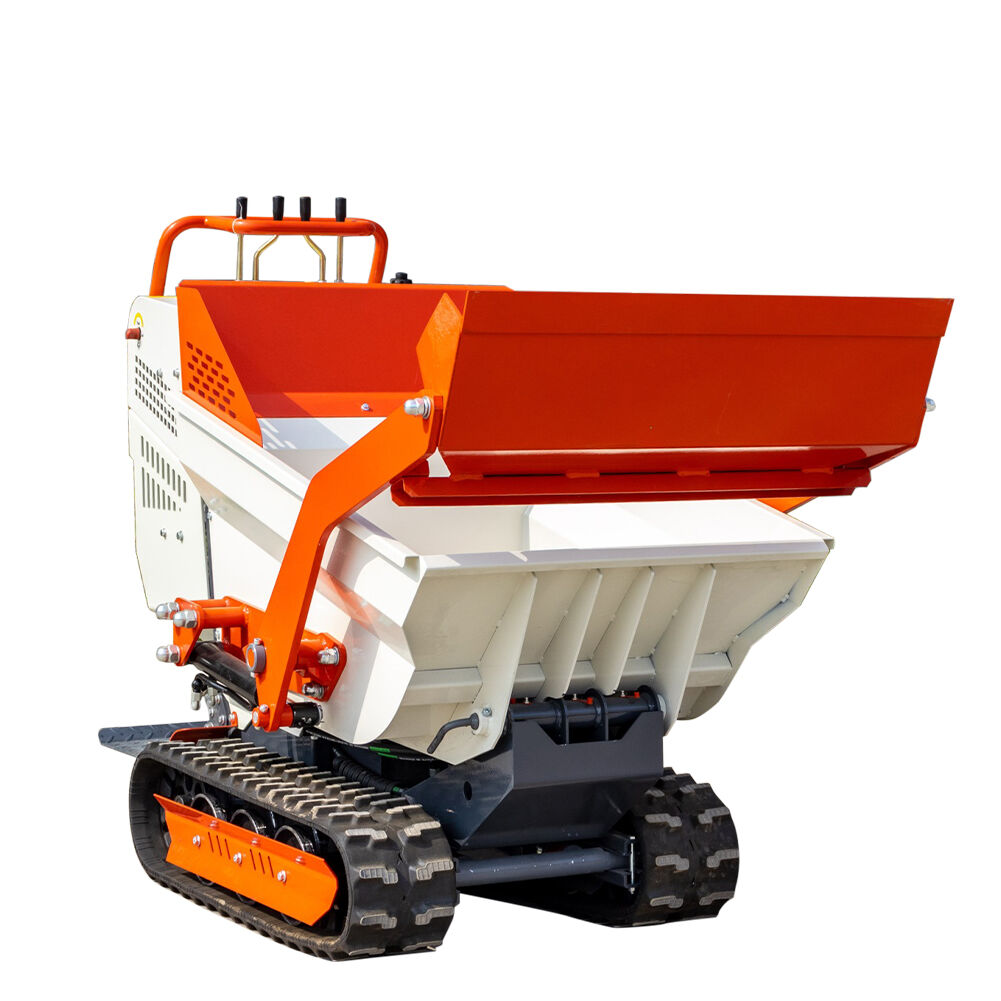

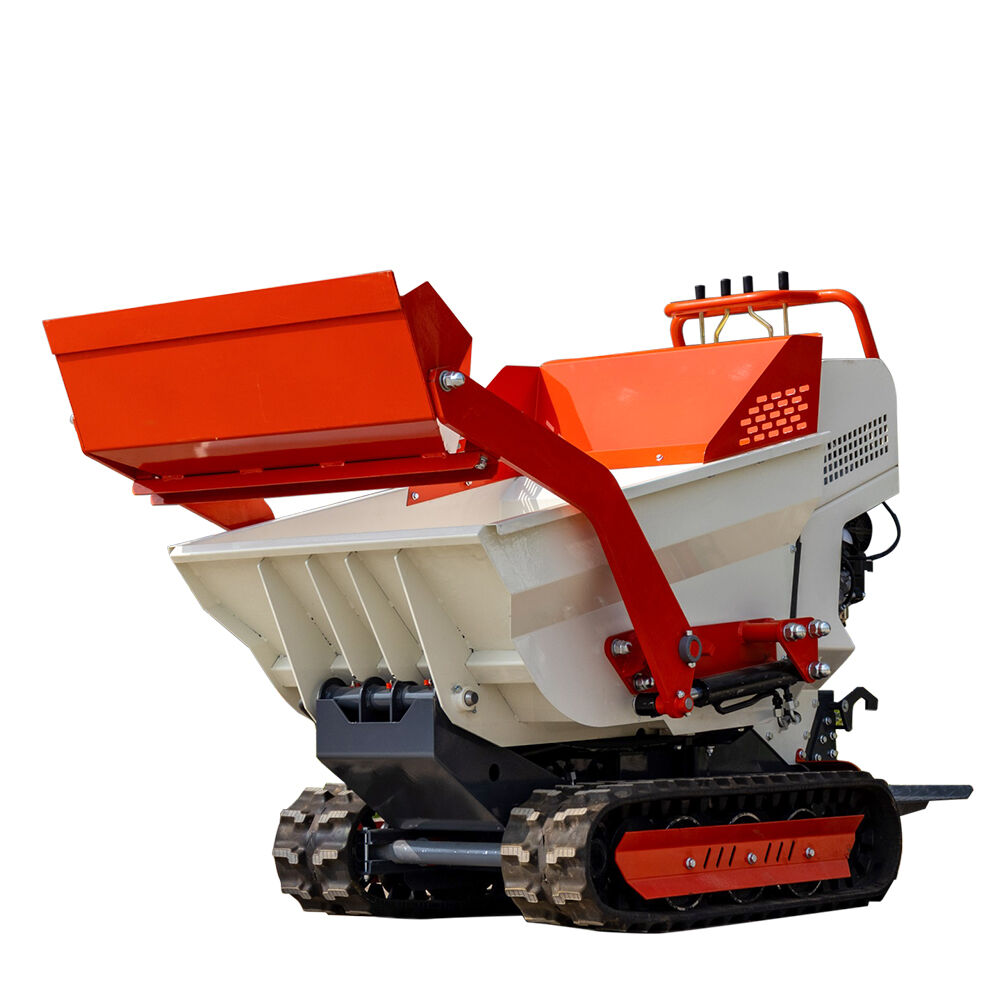

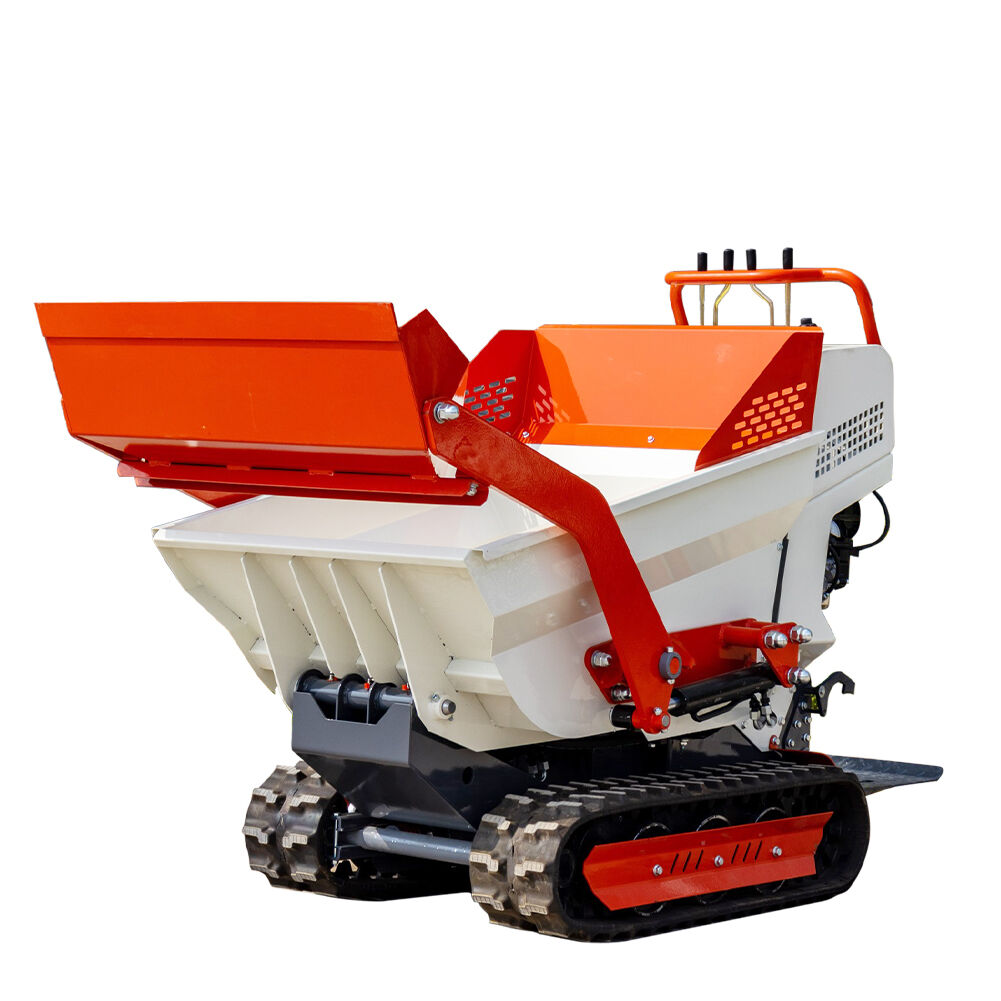

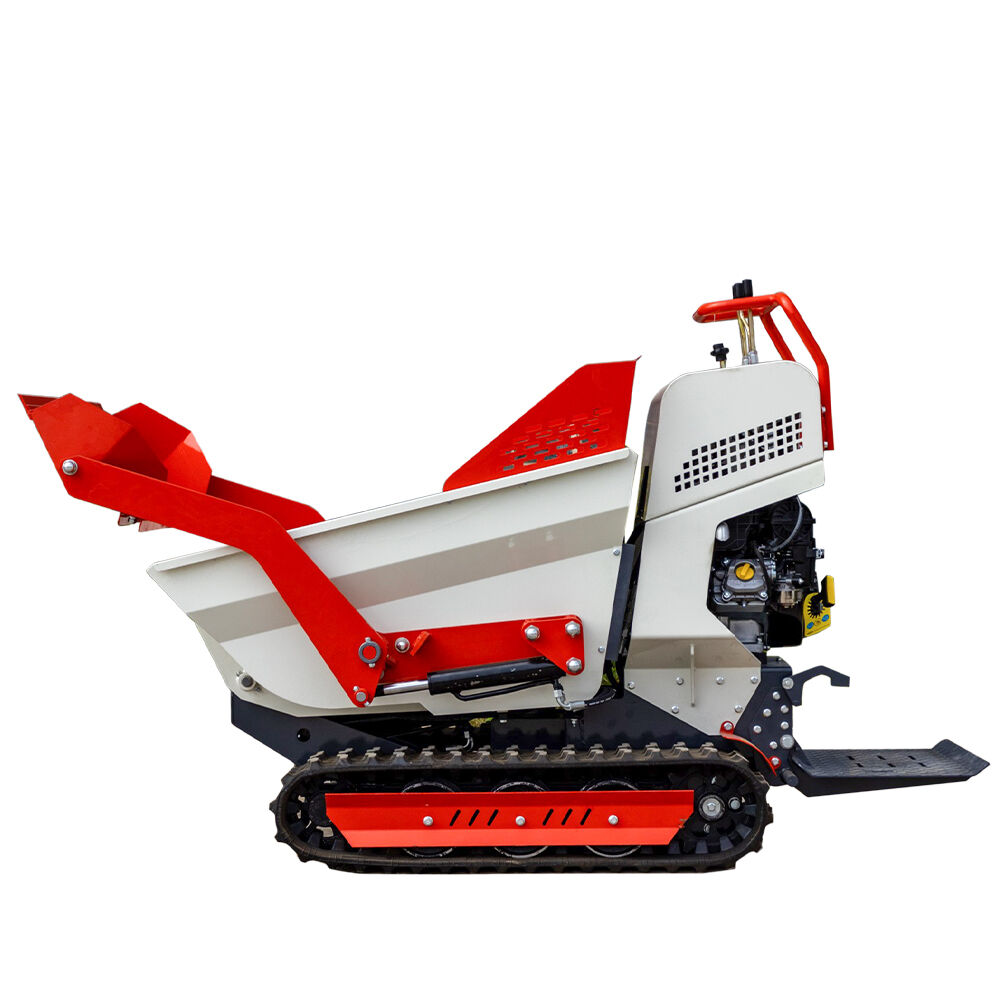

The HT500-1 Mini Crawler Transporter, also known as the rubber dumper or tipper truck, is a high-efficiency transport vehicle specifically designed for demanding heavy-duty operations. Engineered with precision and robust structural specifications, this mini dumper caters to a wide variety of material handling tasks across construction, mining, roadworks, municipal projects, and agricultural operations. Its compact yet powerful design enables effortless navigation through confined spaces, steep inclines, and uneven terrain, making it particularly suitable for small to medium-scale projects where larger transport vehicles cannot operate effectively.

Equipped with a durable crawler system and rubber tracks, the HT500 offers superior stability and traction on diverse surfaces, from muddy farmland and loose gravel to construction debris-laden sites. The dumper body, designed for easy tipping and quick unloading, ensures efficient material delivery and rapid turnover during operations. With a user-friendly interface, high load capacity, and rugged chassis, the HT500 mini dumper delivers both reliability and efficiency, reducing labor intensity and enhancing project productivity.

Built to withstand continuous heavy-duty use, the HT500 features reinforced components, a resilient undercarriage, and hydraulic or mechanical tipping mechanisms, providing long-term operational durability. Its multi-functional versatility, including optional enclosed compartments for waste transportation, makes it ideal for both professional projects and personal or DIY applications, such as garden landscaping or small-scale home construction tasks.

Video


Applications

The HT500 mini dumper is designed for multi-scenario operation, offering exceptional versatility in numerous industries:

Mining Operations:
The mini dumper is ideal for transporting materials such as ores, gangue, and aggregates in harsh mining environments. Its compact size, rubber crawler tracks, and strong load-bearing capacity allow it to maneuver safely across rugged, uneven terrain, including narrow mine tunnels and slopes, ensuring continuous and reliable material transport.

Construction Works:
The HT500 excels in small to medium-scale construction projects. It is used for transporting earth, aggregates, sand, gravel, building materials, and construction debris. Its tipping bed allows rapid unloading, improving workflow efficiency while maintaining precise material placement for foundations, trench backfilling, and paving projects.

Municipal and Road Maintenance:
The mini dumper supports pipeline renovations, river and canal dredging, road repair, and snow removal. It navigates confined streets and alleys with ease, making it suitable for urban areas, public parks, and residential communities. Optional enclosed compartments prevent spillage during waste or material transport, maintaining safety and cleanliness during municipal operations.

Water Conservancy and Agricultural Applications:
The HT500 can transport soil, sandbags, and materials for embankment construction, riverbed excavation, and small-scale irrigation projects. In agricultural settings, it efficiently moves crops, fertilizer, feed, and harvested products. Its stable tracked design prevents soil compaction, protecting sensitive farmland and garden plots.

Sanitation and Waste Transport:
This mini dumper is ideal for centralized collection and transportation of urban construction waste, garden debris, and household refuse. Enclosed tipper options allow safe and hygienic handling of waste materials, reducing pollution and environmental impact.

Landscaping and Personal Projects:
The HT500 proves invaluable for transporting soil, plants, stones, and landscaping materials for parks, gardens, and private estates. Its agility and compact chassis allow efficient material handling in narrow spaces while minimizing disturbance to existing vegetation. DIY enthusiasts and professional landscapers alike benefit from its easy operation, reliability, and robust load capacity.

Parameters

Model

HT500

Cooling mode

Briggs&stratton

Cooling mode

Air-cooled

Fuel

Gasoline

Emission

Euro 5/EPA

Transmission

/

Speed type

/

Loading capacity

500kg

Box length

816mm

Box width

680mm

Box depth

620mm

Box type

Integrated/one-piece

Track width

180mm

Flow of pump

6L/min

Mini Dumper weight

413kg

Overall dimension(L*W*H) mm

1056*700*1225

Start mode

Manual/Electric starter

Driving type

Hydraulic

Steering mode

Hydraulic

Unload mode

Hydraulic

Features

The HT500 mini dumper integrates practical and durable features tailored for efficient material transport:
Construction Site Use: Specially designed for transporting building materials, rubble, and construction debris, the HT500 is highly suitable for confined and small-scale construction sites.

Agricultural Functionality:
Efficiently transports feed, fertilizer, harvested crops, and other agricultural goods with minimal soil disturbance, thanks to its rubber crawler tracks.

Landscaping Applications:
Handles soil, stones, plants, and other materials needed for garden construction, park maintenance, and other landscaping projects.

Municipal Engineering:
Supports urban sanitation tasks, road maintenance, tool transport, and material delivery, enhancing municipal efficiency.

Personal Home Use:
Suitable for garden remodeling, DIY construction projects, and small estate maintenance, providing an economical, easy-to-use transport solution.

Additional features include a rugged crawler system that ensures excellent traction on rough or slippery surfaces, a tipping mechanism that allows quick unloading of heavy materials, and a reinforced chassis capable of withstanding heavy-duty use. Its ergonomic operation panel, simple control interface, and durable construction reduce operator fatigue while maximizing productivity. Optional enclosed compartments or side panels can be selected to safely transport loose materials or waste.

Advantages

Strong power
Equipped with a premium powertrain system, the engine and gearbox are precisely matched to deliver swift acceleration even when fully loaded, ensuring steady progress on steep inclines and eliminating any concerns about insufficient power.
Sturdy and durable
Featuring a reinforced chassis and a high-manganese steel wear-resistant body design, it exhibits outstanding impact and wear resistance, capable of enduring prolonged exposure to the impact and friction of heavy-duty materials such as ore and gravel.
Safe and comfortable
The cab features a high-strength design, complemented by rollover protection and an efficient braking system, providing comprehensive defence against impact risks and establishing a robust safety barrier.
Economical and hassle-free
The powertrain delivers high efficiency and energy savings, balancing power output with fuel economy to reduce energy consumption costs per unit of transport volume, meeting green operation requirements. Key components are logically arranged for easy disassembly, facilitating maintenance and servicing. The use of long-lasting, durable wear parts significantly reduces the average annual maintenance frequency.
