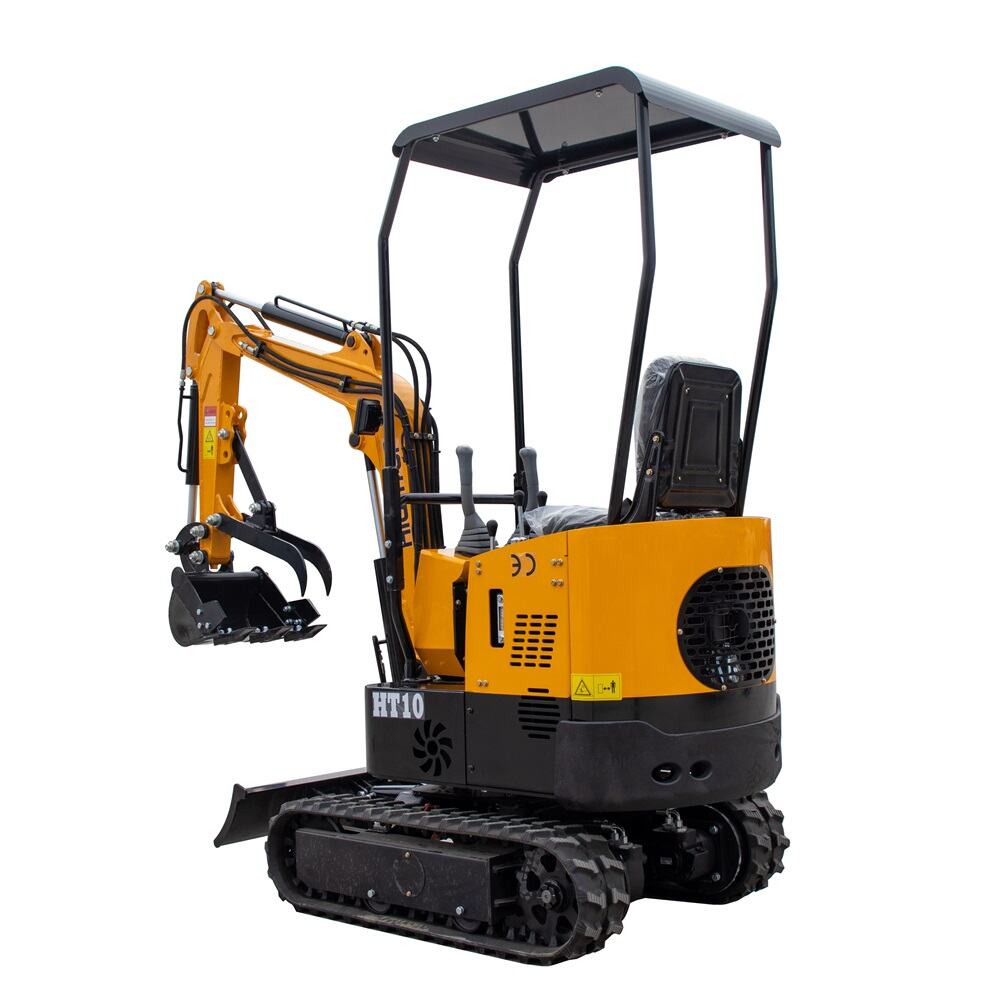

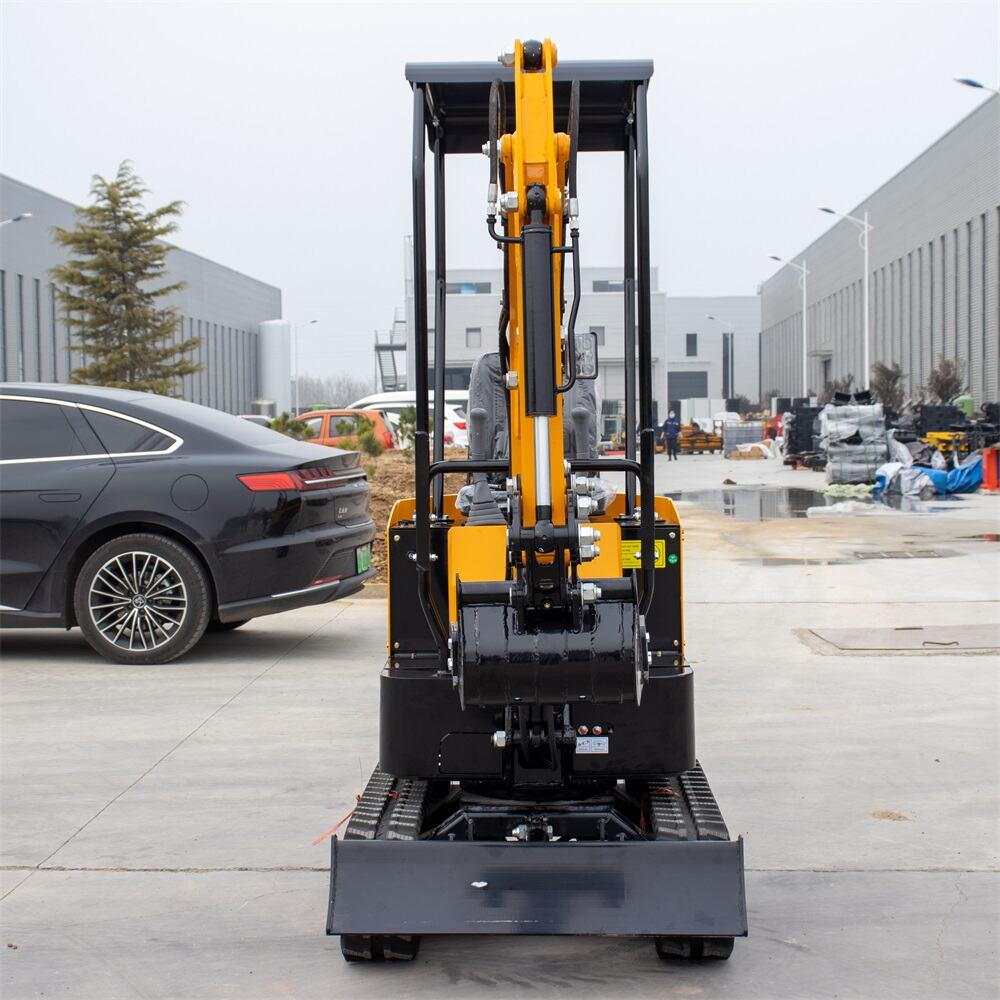

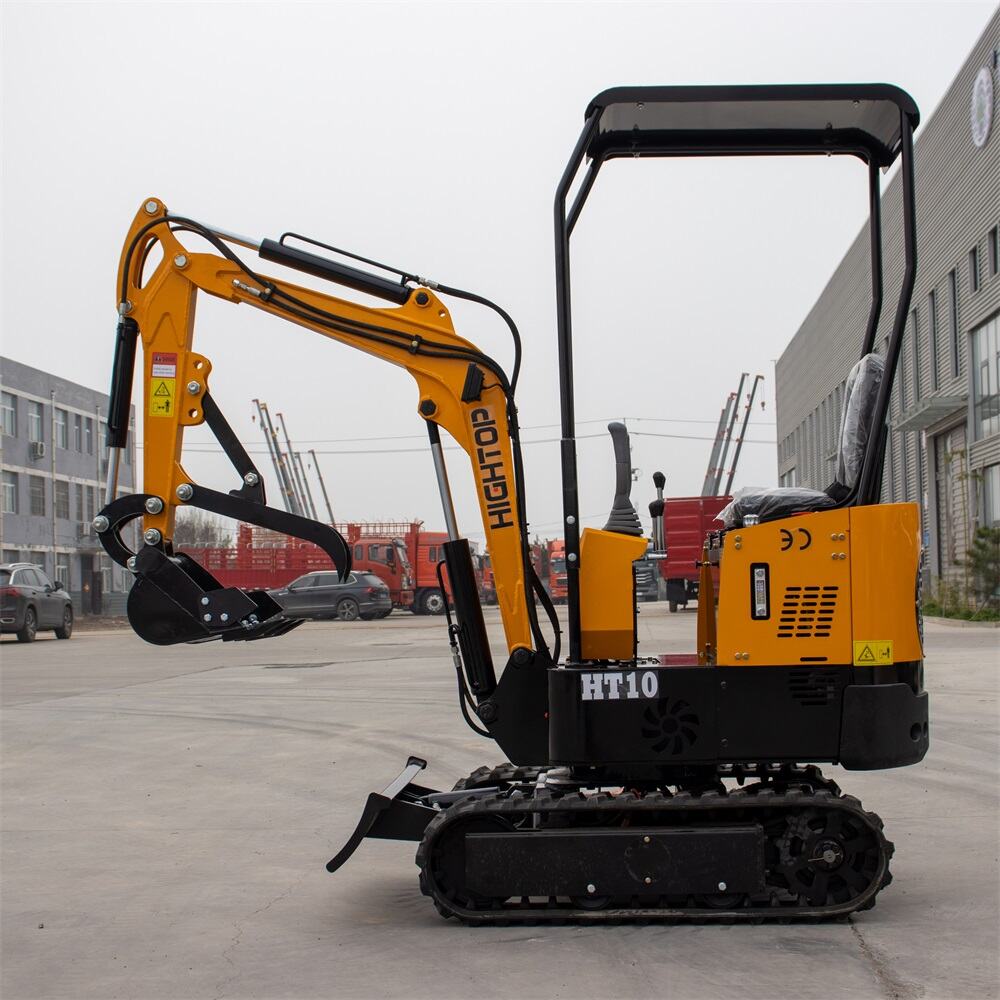

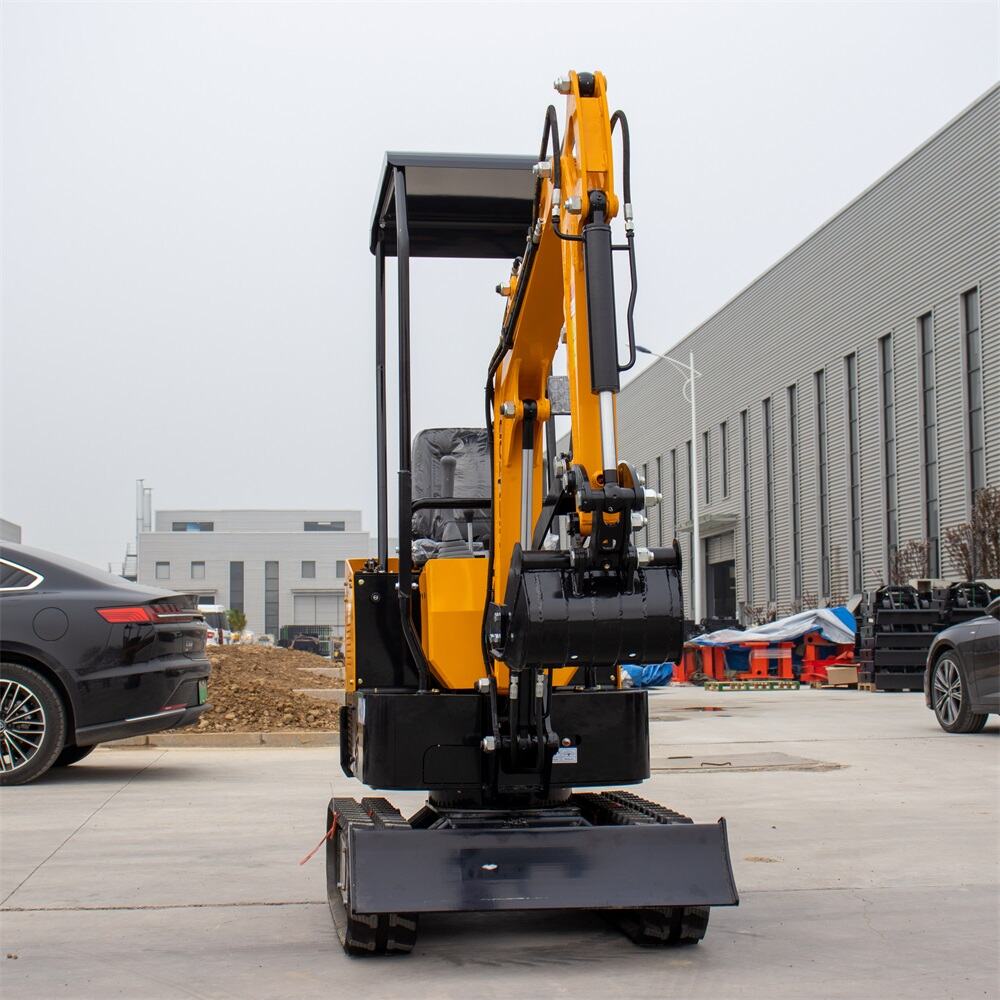

HT10B Multi-functional mini excavator meets Euro 5 standards and EPA environmental requirements, has ISO and CE certificates, and supports OEM and ODM customization. The four-legged shed can be replaced with a closed cab, and the engine is a choice of KOOP, BRIGGS & STRATTON or YANMAR.
HT10B mini excavator can achieve a multi-purpose, digging bucket can be replaced with flat bucket, rake, narrow bucket, soil breaker, auger, breaking hammer, trailer and other accessories.
Municipal and Urban Renewal Sector
Designed for construction in confined urban spaces, this machine efficiently handles trench excavation for municipal pipeline installation (water mains, sewage, gas pipelines), as well as pavement breaking and minor foundation works during the refurbishment of older residential estates. With a minimum turning radius of 1330mm, it enables ‘wall-hugging operation’ in areas less than 3 metres wide, preventing damage to surrounding structures and significantly enhancing municipal construction efficiency.
Interior and Building Renovation Sector
For scenarios such as refurbishing older properties, flat renovations, and commercial premises restructuring, this equipment can access stairwells and indoor spaces to perform tasks including wall demolition, floor clearance, and basement backfilling. With a body width of just 930mm and a weight of 1000kg, it avoids placing excessive load on building floors. Furthermore, its operational noise and dust emissions are manageable, minimising disruption to neighbouring residents.
Landscaping and Greening Engineering Sector
Suitable for landscaping applications in private gardens, urban green belts, parks and similar settings. Capable of excavating tree pits, levelling terrain and laying garden paths, whilst also facilitating tree transplanting and transporting landscape stones with clamping attachments. The 180mm track width delivers low ground pressure, minimising damage to lawns or paved surfaces during operation, precisely meeting the demands of detailed landscaping work.
Agricultural production sector
Suited to agricultural scenarios such as greenhouse cultivation, orchard management, and farmland improvement. Capable of deep ploughing soil and excavating irrigation ditches within vegetable greenhouses, digging fertiliser trenches and planting trees with soil mounding in orchards, and harvesting economic crops like yams and lotus roots. This eliminates the high time consumption and crop damage associated with manual labour. Its flexible chassis allows free movement in areas with narrow crop spacing, adapting to diverse agricultural requirements.
|
Model |
HT10B |
|
Weight |
1000kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Bucket width |
380mm |
|
Engine |
KOOP (292F) |
|
Optional Engine |
BRIGGS & STRATTON YANMAR |
|
Bore stroke |
Single cylinder, fan cool |
|
Rated power |
7kw/3000r/min |
|
Displacement |
6.8ml/r |
|
Travel speed |
1.5km/h |
|
Main Demensions |
|
|
Overall dimension( LxWxH) |
2775 x 930 x 2219 mm |
|
Wheelbase |
910mm |
|
Total length of track |
1230mm |
|
Platform ground clearance |
380 mm |
|
Platform back turning radius |
784 mm |
|
Chassis width |
897 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
132 mm |
|
Track height |
320 mm |
|
Operating Range |
|
|
Max. Digging depth |
1750 mm |
|
Max. Vertical digging depth |
1375 mm |
|
Max. Digging height |
2610 mm |
|
Max. Dumping height |
1850 mm |
|
Max. Digging radius on ground |
2850 mm |
|
Min. Rotation radius |
1330 mm |
|
Max. Upgrade height of bulldozer blade |
345 mm |
|
Max. Digging depth of bulldozer blade |
255 mm |
1. The important components on the machine from developed countries: Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor
2. The hydraulic pipes all imported from Continental AG Germany Company. Not Easy to leak.
Other factories use lower quality high pressure pipe, leaks everywhere after working one year.
3. 100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful.
No counterweight or counterweight less than 50kg
4. The structural parts of the machine are processed by brand supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable,non-bleaching and smoother.
Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty
5. The machine adds a pressure reducing valve device, which makes it easier to start when the machine starts.
No pressure reducing valve ,hard to start machine.
6. Optional Function
The dozer blade length can be adjusted according to the scope of work: 84cm-105cm,the dozer blade working height can be adjusted from -15cm to 15cm highest .
Other factories can only do fix length at 1000mm
7. Optional Function
The crawler can be stretched from minimum 830 to maximum 1000mm which and can pass through more narrow places .
8. Optional Function
The boom can be deflected by 60 degrees turning left and right, making the job more flexible.
Other factories can only design fix boom or just turning by 30 degrees
