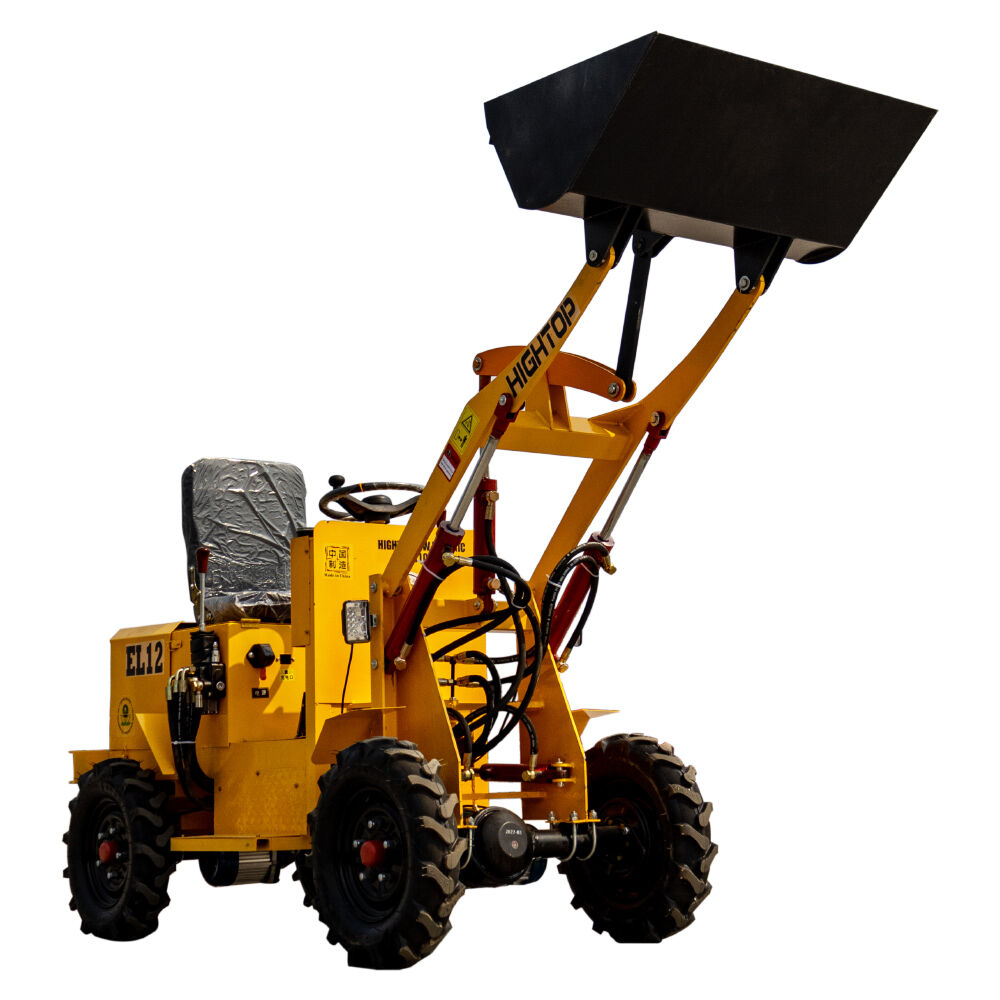

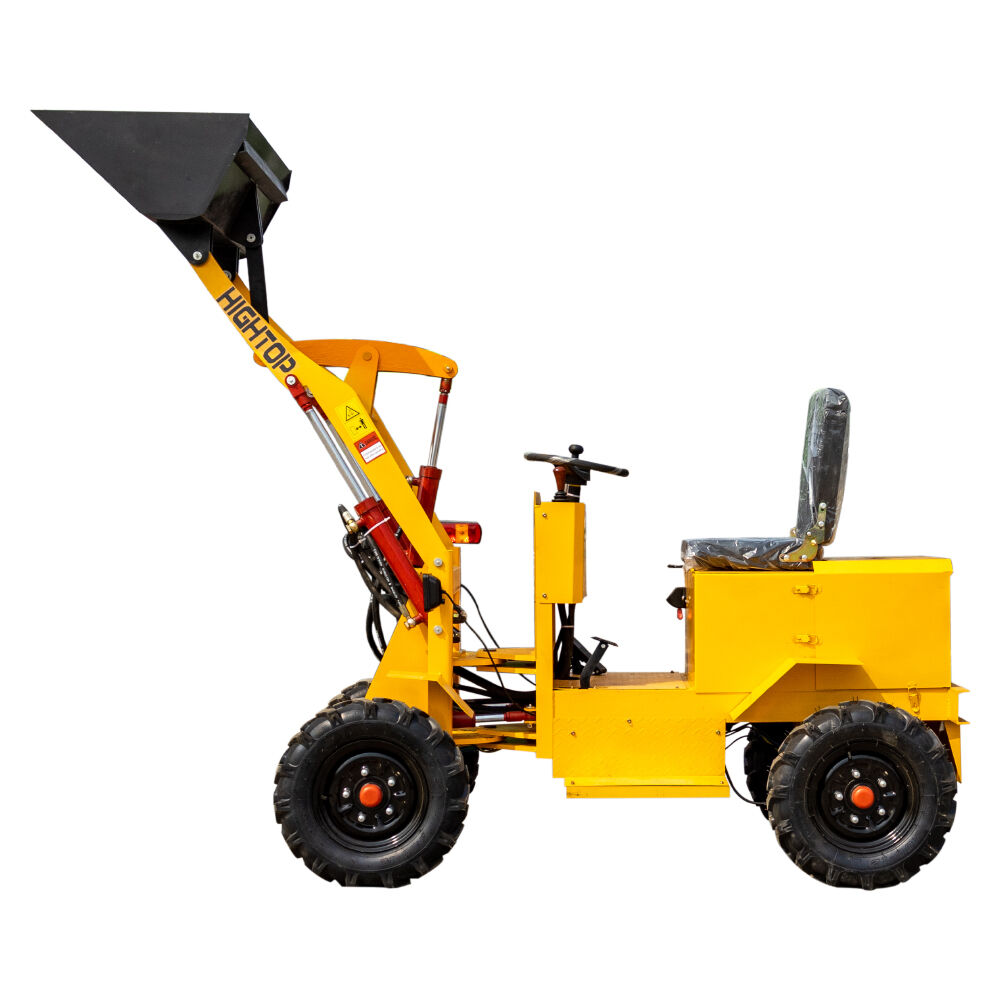

HTEL12 1800W Electric Small Wheel Loader Mini Front End Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HTEL12

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

The skid steer loaders are multi-functional engineering vehicles and versatile multi-purpose engineering machines. They are built on a specially designed chassis featuring dedicated vehicle steering wheel equipment, robust wheel running gear, and full all-wheel drive capabilities. The skid steer system allows each wheel to operate independently, with variable speed control on both sides, enabling seamless manoeuvring even in confined or complex work environments.

These machines are engineered for maximum adaptability, allowing operators to quickly replace or mount a wide variety of work attachments on-site. Whether handling excavation, material transport, site clearance, lifting, or light demolition, the skid steer loader accommodates diverse job requirements with efficiency and precision. Its compact size and agile steering make it ideal for navigating narrow passages, urban job sites, construction zones, and agricultural or industrial areas, all while maintaining stability and performance.

The skid steer loaders’ multi-purpose design ensures they can switch tasks rapidly without downtime, providing exceptional operational flexibility. Equipped with advanced hydraulic systems, they deliver smooth, responsive control for all attachments, supporting consistent work quality across various terrains and conditions. From tight urban corners to uneven, rugged outdoor sites, these loaders adapt to different working environments and job contents with ease, making them an indispensable asset for small-to-medium-scale engineering projects.

Video

Applications

Underground and indoor construction scenarios:
With zero exhaust emissions and low noise levels, it meets operational requirements in enclosed spaces such as underground car parks, tunnels and mines. It can excavate and transport construction waste including rubble and crushed stone, while also assisting in moving small building materials like steel reinforcement bars and pipes. With compact dimensions of just 2700×900×1600mm, it navigates effortlessly through indoor environments like factories and warehouses, performing auxiliary tasks including goods loading/unloading and site clearance.

Municipal and minor infrastructure applications:
In urban maintenance operations, it can assist with pavement resurfacing, backfilling earthworks following minor utility trenching, street litter clearance, and the transfer of landscaping aggregates and topsoil. Furthermore, for minor infrastructure projects such as rural lanes and community roads, it is suited to subgrade excavation and filling, as well as loading sand and gravel aggregates. Its compact turning radius design enables agile operation even in confined worksites.

Agricultural and horticultural applications:
For orchards, vegetable greenhouses, livestock farms and similar settings, it efficiently transports fertilisers, crop produce and animal feed. In landscaping and horticulture, it handles saplings, flower seedlings and planting compost, while also levelling nursery plots. Its compact size prevents crushing crops or damaging plant root systems, ensuring strong adaptability to agricultural and horticultural working environments.

Warehousing and small-scale logistics applications:
With a single charge, it can operate continuously for 4 to 6 hours, meeting the daily operational demands of warehouses and small logistics sites. It is suitable for short-distance transfer and stacking of bagged and boxed goods within warehouses, as well as loading and unloading loose cargo at small logistics hubs. Fitted with all-terrain tyres, it maintains stable operation even on uneven surfaces, thereby enhancing cargo handling efficiency.

Parameters

Model	HTEL12
Battery	80A,60V
Drive motor	1800W
Hydraulic motor	1500W
Weight	800 kg
Load weight	400kg
Lifting height	2.2m
Unloading height	1.5m
Tire	500-12
Size	2.70.91.3m

Features

1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.
2. Clear instrument panel sign, operating conveniently.
3. Joystick handle optional, operating more comfortable.
4. International warranty engine, enjoy local 3 years free engine maintenance.
5. It is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.

Advantages

Environmental Protection and Carbon Neutrality

Pure electric drive achieves zero exhaust emissions with noise levels below 75 decibels, making it perfectly suited for enclosed or environmentally sensitive settings such as basements, tunnels, and warehouses.
Aligned with the ‘dual carbon’ policy objectives, it requires no adaptation to evolving fuel emission standards and faces no usage restrictions in strictly regulated environments like urban construction sites and underground projects.

Flexible and efficient

The compact chassis (2700×900×1600mm) weighs just 800kg, featuring a tight turning radius for effortless manoeuvring in confined spaces with zero operational blind spots.
The motor delivers instantaneous maximum torque, with an 1800W travel motor complemented by a 1500W lifting motor. This configuration ensures rapid operational response under a 500kg rated load, delivering outstanding efficiency for short-distance, high-frequency tasks.

Economical and practical

Energy consumption costs amount to merely one-third to one-quarter of diesel equipment, with no complex components such as engines or gearboxes, resulting in low failure rates and annual maintenance savings of 30% to 40%.
Equipped with a 60V 70Ah battery pack, it supports continuous operation for 4 to 6 hours, meeting daily operational requirements. Battery maintenance is straightforward, offering greater long-term cost advantages.

Stable and secure

Employing a hydraulic-mechanical transmission system, the 20kN traction force, coupled with a robust chassis design, ensures stable operation and adaptability across diverse complex terrain.
Equipped with multiple safety protection devices, the machine features a precision-engineered structure and an intuitive operating logic, offering a low learning curve while balancing operational safety and comfort.
