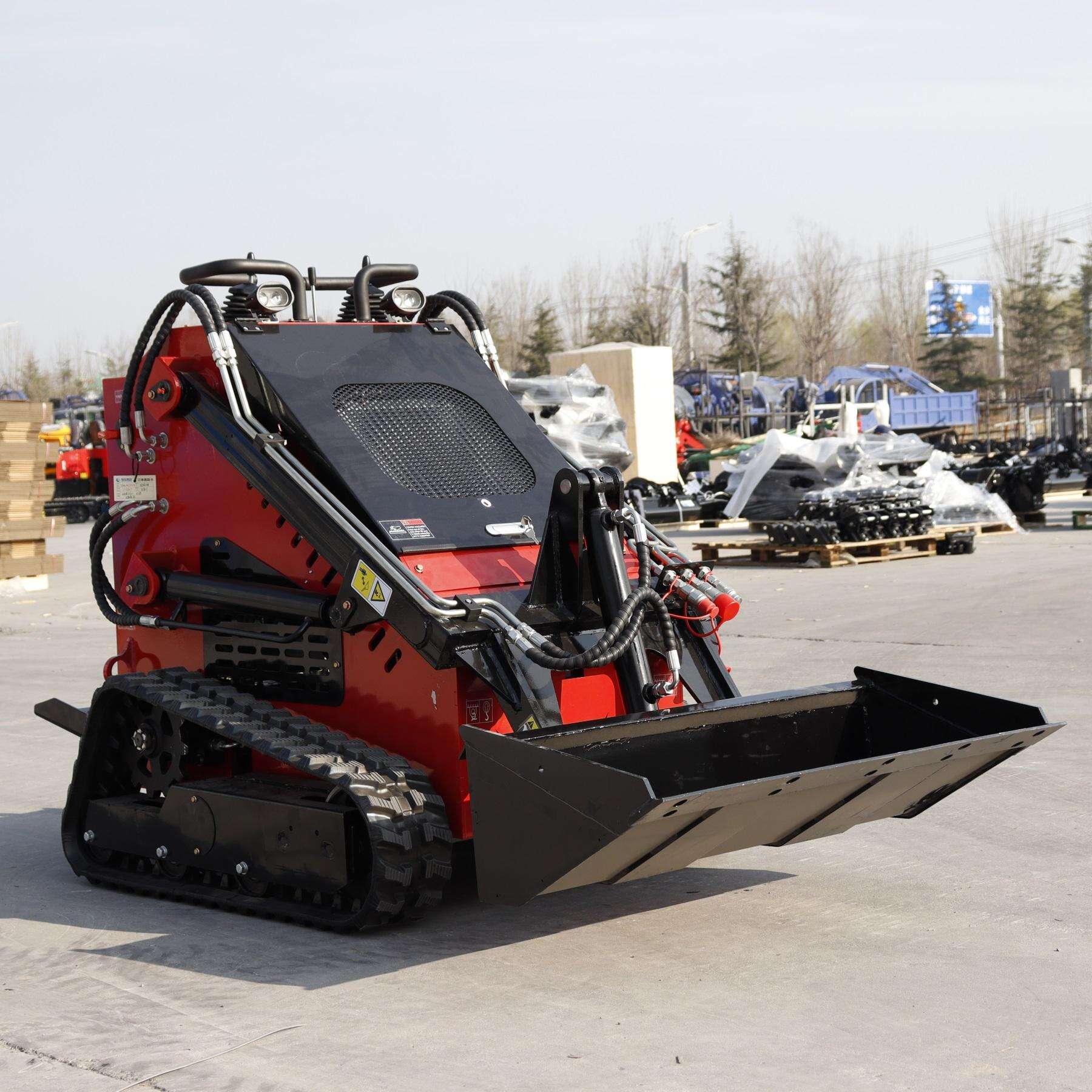

The Hightop HT320 skid steer loader is a versatile all-rounder designed for efficient operation in confined spaces. Combining a compact chassis with robust power output, it is tailor-made for sites with limited access and diverse operational requirements. Widely applicable across construction, municipal maintenance, landscaping, and agricultural production, its core advantage of multi-purpose functionality makes it a flexible support machine for engineering tasks.
Construction sector:
In confined spaces such as building sites, basement works and tunnel construction, its compact frame enables agile manoeuvring through narrow passages to handle material transfer (aggregates, cement, bricks), excavation of foundation pits and trenches, site levelling, and basement backfilling. When fitted with a breaker hammer, it can undertake minor foundation demolition. Following project completion, it rapidly clears construction waste, filling operational gaps where larger machinery cannot access and significantly boosting construction efficiency.
Urban Operations Mainstay:

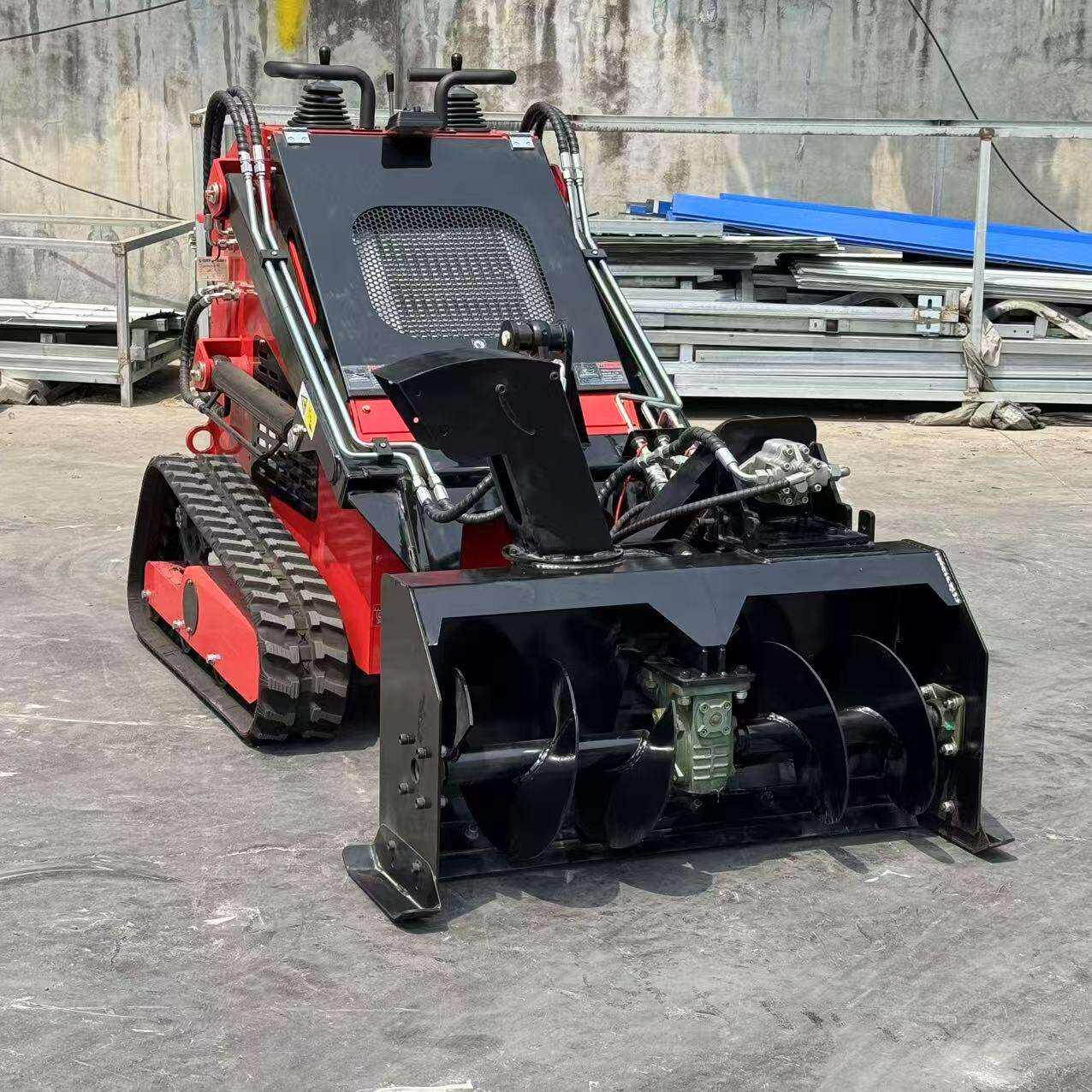

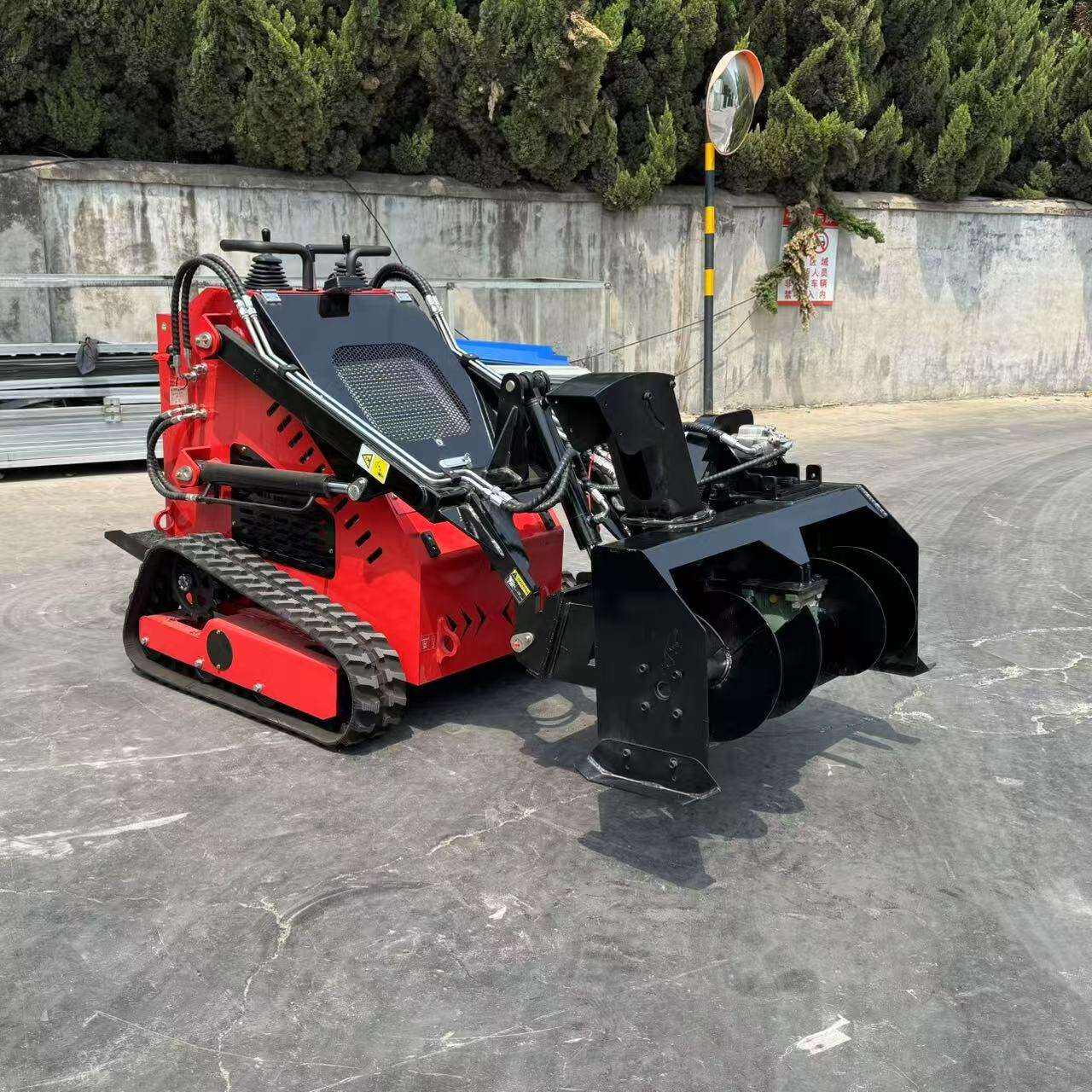

Suited for scenarios including road repairs, underground pipeline construction, and public facility maintenance. In road maintenance, paired with a milling machine, it precisely addresses potholes and root-cut damage to guardrail foundations. The recycling attachment transforms asphalt and concrete waste into reusable aggregate for backfilling, achieving resource circulation. During underground pipeline construction, it efficiently completes trench excavation and backfilling, minimising disruption to traffic and the surrounding environment. In winter, it can be fitted with snow ploughs and spreaders to clear road snow, ensuring safe passage.
Landscaping and Garden Construction Sector:
In settings such as parks, residential estates, and golf courses, it can perform precision tasks including site levelling, tree pit excavation, plant transplantation, and clearance of dead branches and fallen leaves. When paired with turf transplanters and cultivators, it enables efficient planting operations. It handles the transport of heavy items like landscape stones and garden ornaments, with its agile manoeuvrability adapting to complex terrain. It operates with precision without damaging existing vegetation, thereby supporting landscape creation.
|
Model |
HT320 |
|
Engine |
Rato Briggs&Stratton ( 10KW/13.5HP) |
|
Max working height (H3) |
2504 mm |
|
Max pin height (H2) |
1951 mm |
|
Max Dumping height (H1) |
1423 mm |
|
Max Dumping distance(E) |
100 mm |
|
Max Dumping Angle (a3) |
53° |
|
Rollback of bucket on ground (a2) |
32° |
|
Departure angle (a1) |
17° |
|
Total height (H) |
1210 mm |
|
Ground clearance (F) |
133.5 mm |
|
Wheel base (L1) |
653 mm |
|
Overall length without bucket (L3) |
1552 mm |
|
Total width (B2) |
1050 mm |
|
Bucket width (B1) |
1080 mm |
|
Total length with bucket (L) |
1992 mm |
|
Turn radius forward turning (R) |
1205 mm |
|
Rated Power (KW) |
10KW(13.5HP) |
|
Rotating speed (rpm) |
3600 |
|
Noise (Db) |
≤95 |
|
Operating Load |
260 Kg |
|
Bucket Capacity |
0.08 m³ |
|
Max Lifting Force |
300 Kg |
|
Travel Speed |
0-6 Km/h |
|
Operating Weight |
640 Kg |
The HT320 skid steer loader centres on ‘agile efficiency and versatile adaptability’. Its skid steering system enables turning on the spot, while the compact body design ensures unhindered manoeuvring in confined spaces and complex terrain. The quick-change system facilitates switching between buckets, breakers and other attachments within minutes, covering diverse operations including loading, breaking and sweeping. Equipped with a high-performance engine and stable hydraulic system, it delivers robust power output to effortlessly handle heavy-duty applications. Constructed from high-strength steel, the machine exhibits excellent impact resistance and wear tolerance, making it suitable for harsh environments such as high-dust or muddy conditions. The cab features ergonomic design for intuitive operation, unobstructed visibility, and comprehensive protection, reducing operator fatigue while ensuring workplace safety. This makes it the preferred choice for efficient operations across engineering, municipal works, agriculture, and other sectors.
