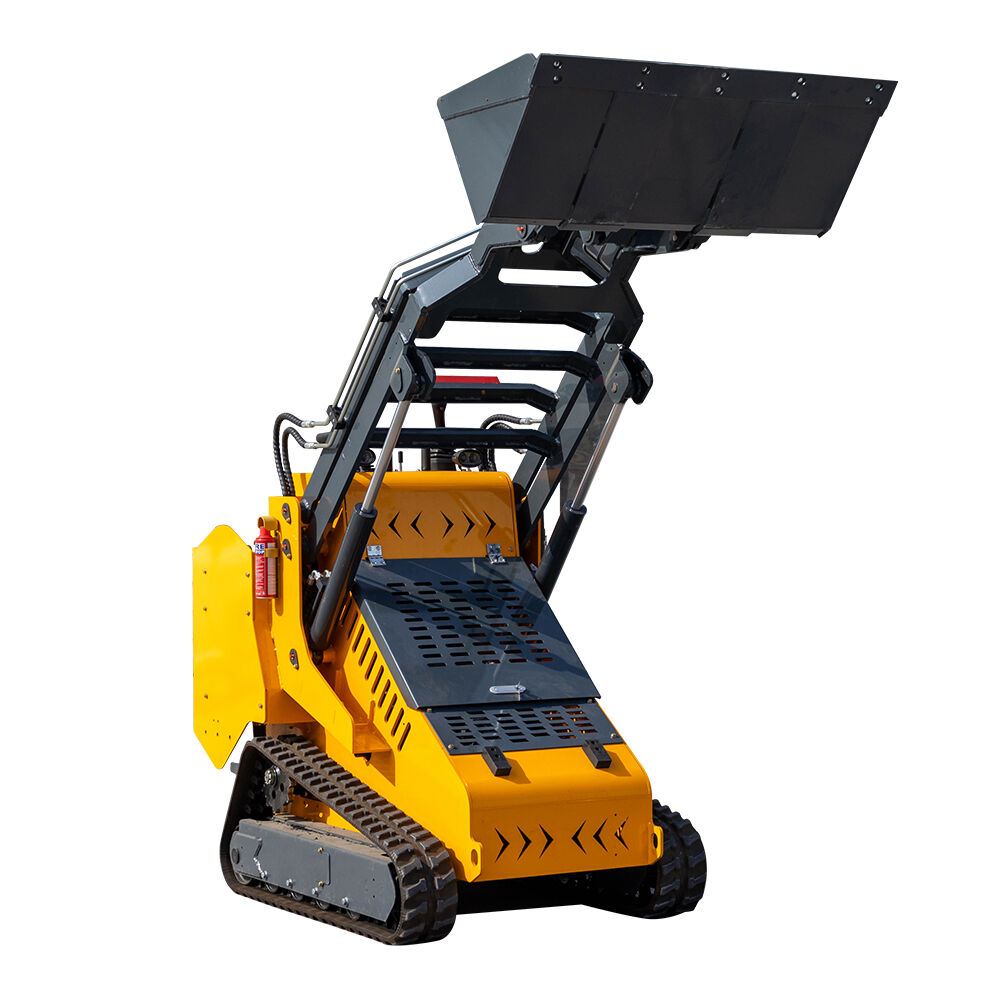

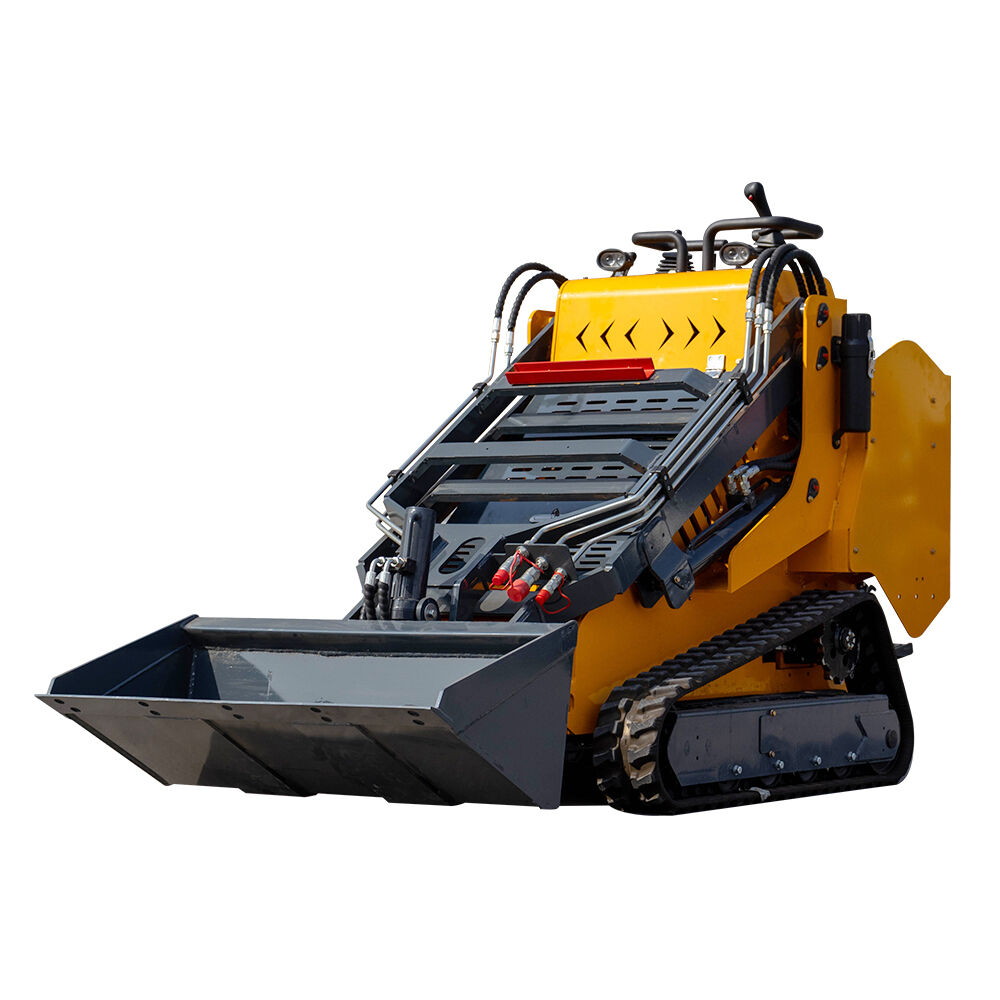

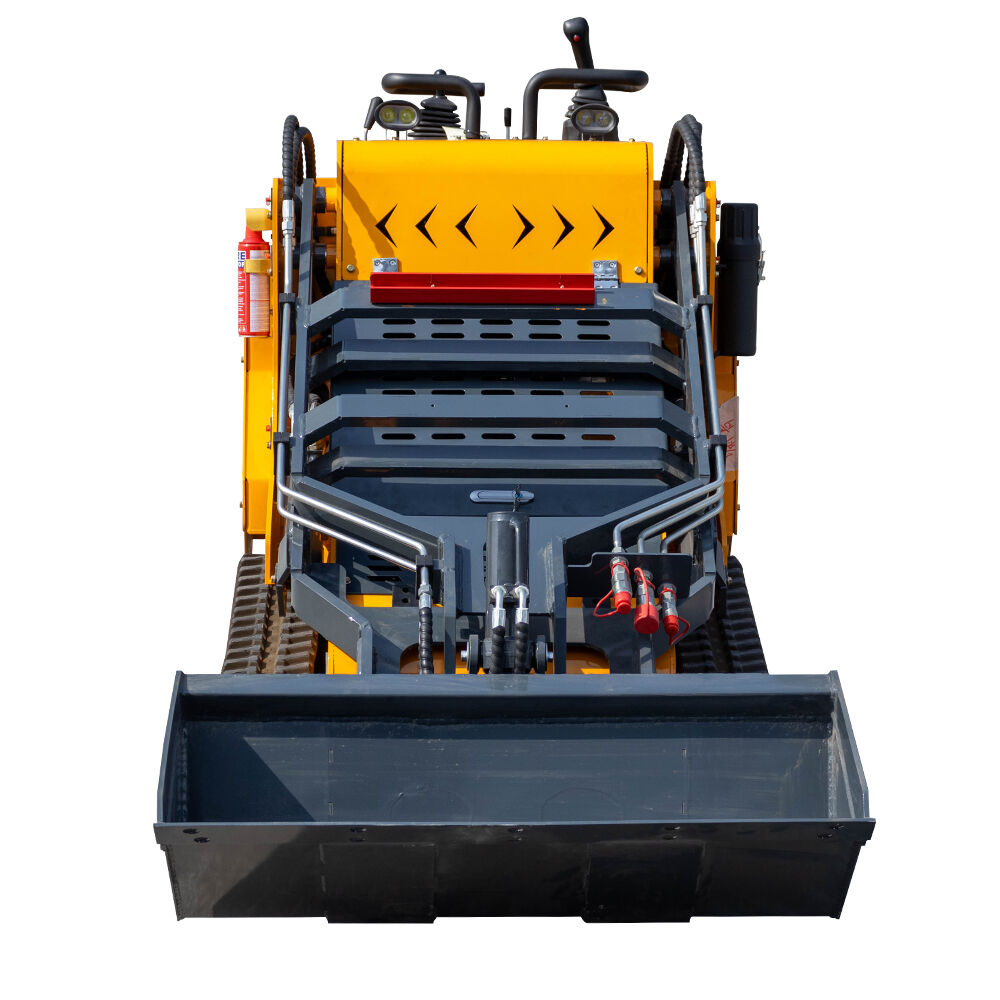

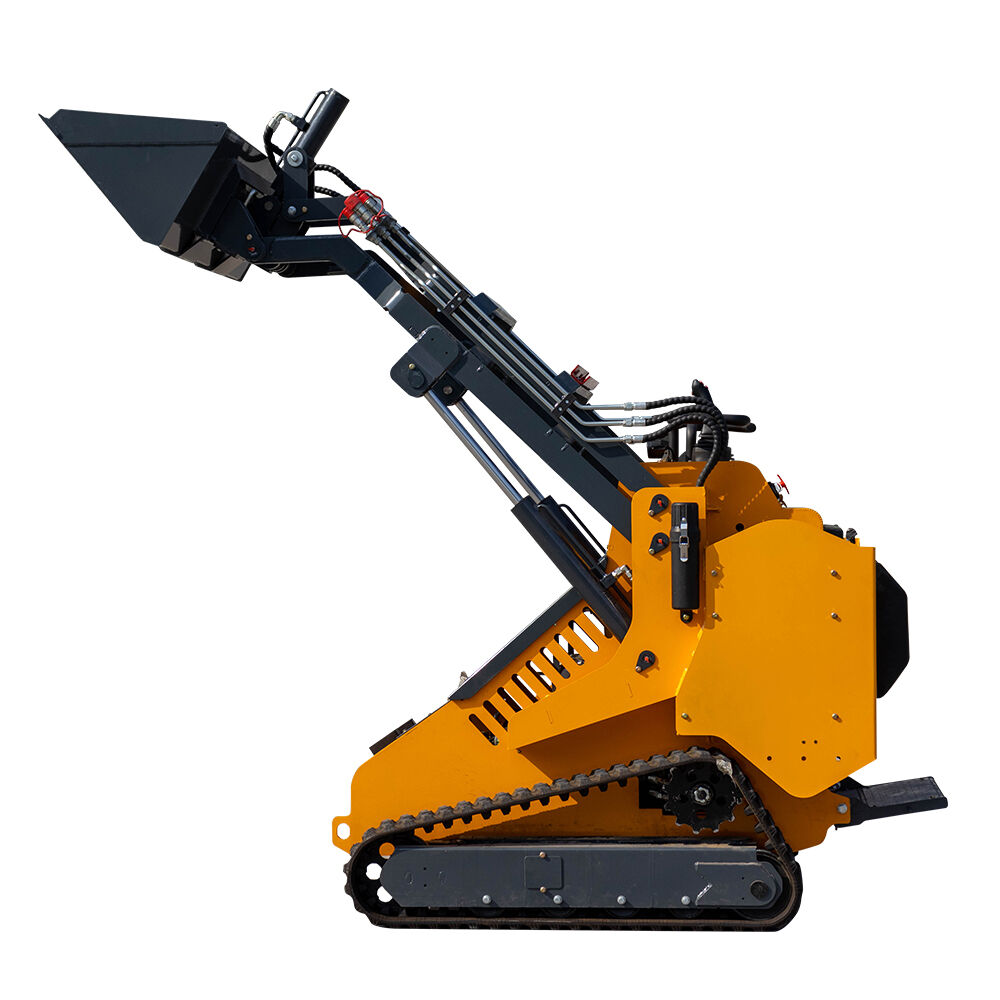

HT530 Compact Skid Steer Loader With Attachment

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT530

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

The HT530 is a tracked skid steer loader introduced by Shandong Haituo. With an operating weight of 1330kg, with an overall width of just 1050mm. With the folding footrest deployed and without the bucket, its length measures 2100mm. Powered by a Kubota D1105 three-cylinder diesel engine delivering a rated power of 14kW, it operates with a hydraulic system featuring a pressure range of 0-17MPa and flow rate of 0-32L/min. This combination ensures stable and robust power output, enabling it to handle heavy-duty tasks with ease. Fitted with high-buoyancy rubber tracks offering extensive ground contact area, slip resistance and durability, its 150mm ground clearance adapts to complex terrain. Agile turning enables effortless navigation through confined spaces. Equipped with internationally standardised hydraulic quick-change couplings, it swiftly switches between attachments including 0.2m³ buckets and forks, facilitating multifunctional operations such as loading, excavation and sweeping. Suitable for diverse scenarios including construction and agricultural farming. The machine employs ISO-standard joysticks and a standing operation design for precise, intuitive control. Its 30-litre fuel tank supports extended continuous operation, with noise levels maintained below 93 decibels. An open maintenance structure and cross-border export compatibility further enhance practicality and convenience.

Video

Applications

Construction Sector:
This model proves an invaluable asset for small to medium-sized building projects. Fitted with a bucket, it efficiently handles construction materials such as sand, gravel, bricks and cement. Its 2630mm working height facilitates effortless loading and stacking onto small lorries or material piles. When equipped with a breaker attachment, it can break up small concrete blocks and old road surfaces within the construction area, clearing obstacles for subsequent work. Simultaneously, its narrow frame and agile manoeuvrability permit operation within confined worksites inaccessible to larger machinery, such as factory interiors or redevelopment sites in older residential areas. It is also suitable for excavating small cable trenches and foundation pits, as well as clearing construction waste during project completion phases.

Agriculture and Livestock Sector:
It adapts to a wide range of fundamental tasks on farms and livestock holdings. On farms, buckets can be used to transport feed, fertilisers, and crops, while levelling attachments can be employed to smooth uneven plots of farmland, facilitating cultivation and irrigation planning. When tackling tasks such as stacking hay bales, its stable lifting and loading capabilities significantly reduce manual labour intensity.

Landscaping Applications:
This model is suited for diverse horticultural tasks including planting greenery and site preparation. By fitting attachments such as tree transplanters or buckets, it can precisely excavate tree pits, transplant small trees and flowers, and transport heavy items like landscape stones and sculptural features. When equipped with a sweeper attachment, it efficiently clears fallen branches, leaves, and weeds from landscaped areas.

Municipal and Storage Sector:
Within municipal maintenance, it handles diverse ad hoc tasks. During winter, fitted with snow ploughs and de-icing attachments, it clears accumulated snow and ice from residential lanes and municipal alleys – areas inaccessible to larger snow-clearing equipment. Routinely, its sweeping attachments clear rubbish and dust from streets and squares, while it also assists in excavating and backfilling minor trenches, aiding underground pipeline maintenance.

Parameters

Model	HT530
Max working height A	2630mm
Max pin height B	2090 mm
Max Dumping height C	1535 mm
Max Dumping distance D	715mm
Max Dumping Angle E	38°
Total height F	1630 mm
Ground clearance	150 mm
Overall length without bucket	2220 mm
Total width G	1050 mm
Bucket width H	1150mm
Total length with bucket K	2745 mm
overall length without the bucketafter folding the pedal Y	2100 mm
Engine	KUBOTA D1105
Optional engine	Perkins
Rated Power (KW)	14KW
Rotating speed (rpm)	2200
Noise (Db)	≤93
Pressure (Mpa)	0-17
Flow rate	0-32L
Operating Load	450 Kg
Bucket Capacity	0.2m3
Max Lifting Force	530 Kg
Travel Speed	0-4.5Km/h
Operating Weight	1330 Kg
Fuel tank	30L
Engine oil	4L
Hydraulic tank	35L

Features

HT530 mini skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering.

Advantages

Powerful yet highly energy-efficient

The engine holds dual certification to Euro V and EPA standards alongside CE and ISO accreditation. It delivers high fuel efficiency with low consumption, while the 30-litre capacity fuel tank supports extended continuous operation. Noise levels are maintained below 93 decibels, ensuring a more comfortable working environment.

Flexibly adapts to multiple operational scenarios

With an overall width of just 1050mm and a length of 2100mm when the folding footrest is retracted and without the bucket, it can easily pass through doorways and gateways, making it ideal for operation in confined indoor spaces such as factories and warehouses.

Versatile machine with effortless switching

With a working height of 2630mm, it is well-suited for high-level stacking operations. Boasting a rated load capacity of 530kg and a maximum lifting force of 1258kg, it serves multiple sectors including construction, agricultural breeding, and municipal maintenance, ensuring high equipment utilisation.

Maintenance-free and highly durable

The unit is equipped with a storage bin and fire extinguisher, featuring a specially reinforced chassis structure with wear-resistant components. Its core components offer high reliability and support cross-border export requirements, delivering lower long-term operating costs.
