HTJC430 Mini Small Crawler Crusher Machine with Petrol / Diesel Engines

HTJC430 Mini Small Crawler Crusher Machine with Petrol / Diesel Engines

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HTJC430

Inquire Now

Product Description

Parameters

Product Features

Advantages

Product Description

The HTJC430 Stone Crusher is a high-efficiency piece of equipment designed for large-scale crushing operations. Integrating advanced jaw crushing technology with modular design, it is specifically engineered for mining, building materials processing, and infrastructure projects. It can precisely process materials with a Mohs hardness rating of up to 8, such as granite, basalt, and limestone, with a maximum crushing compressive strength of 320 MPa. This provides a stable and reliable solution for the production of high-grade aggregates.

Parameters

Model	HTJC430
Power	18HP
Cutting thickness (max)	50mm
Weight	1800kg
Warranty	1 Year
Dimension(LWH)	7.5KN
Pump form	320010001620MM
Product name	Jaw Crusher
Shipping size (mm)	210010001750
Track type (mm)	1807241
Weight wheel diameter(mm)	126
Number of wheels (groups)	6
Feed port size (mm)	220*350
Maximum feed size (mm)	200
Certification	CE EPA EURO V
MOQ	1 SET
Production capacity (T/h tons/hour)	2T-5T/h
Verticalplateinner width(mm)	380
Total outer width of cover（mm)	960
Bunker volume (m3)	0.25
Stacking height (mm)	700-1150
Feeding conveyor(mm)	1500*500
Gravel range(mm)	15-50
Travel speed (km/h)	0-3
Conveyor belt width (mm)	400

Product Features

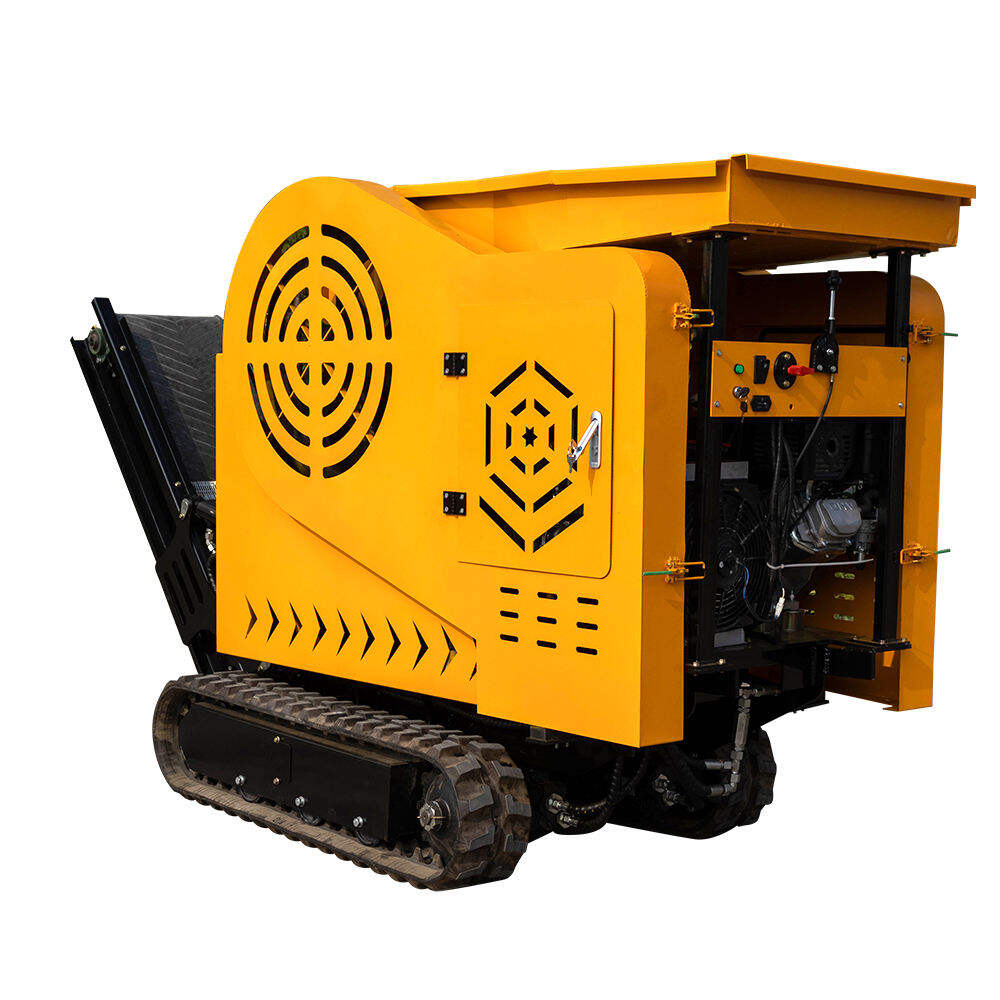

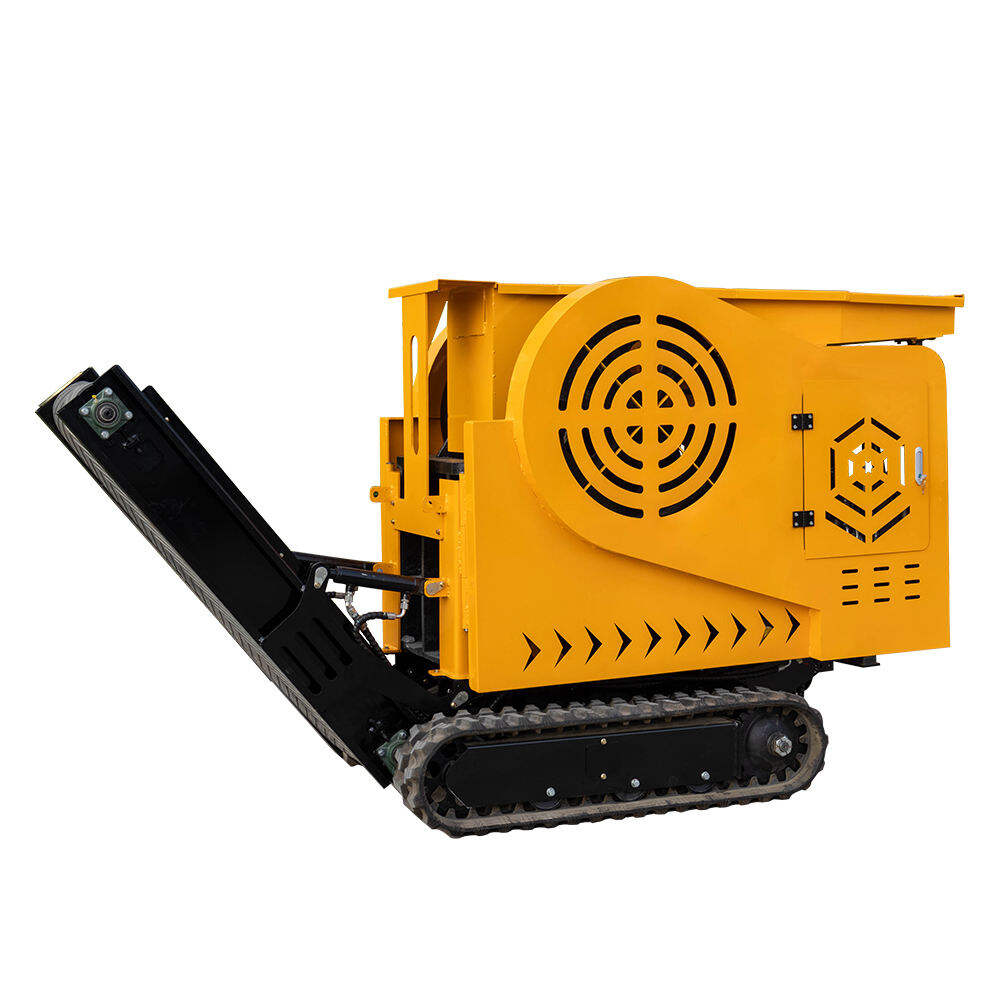

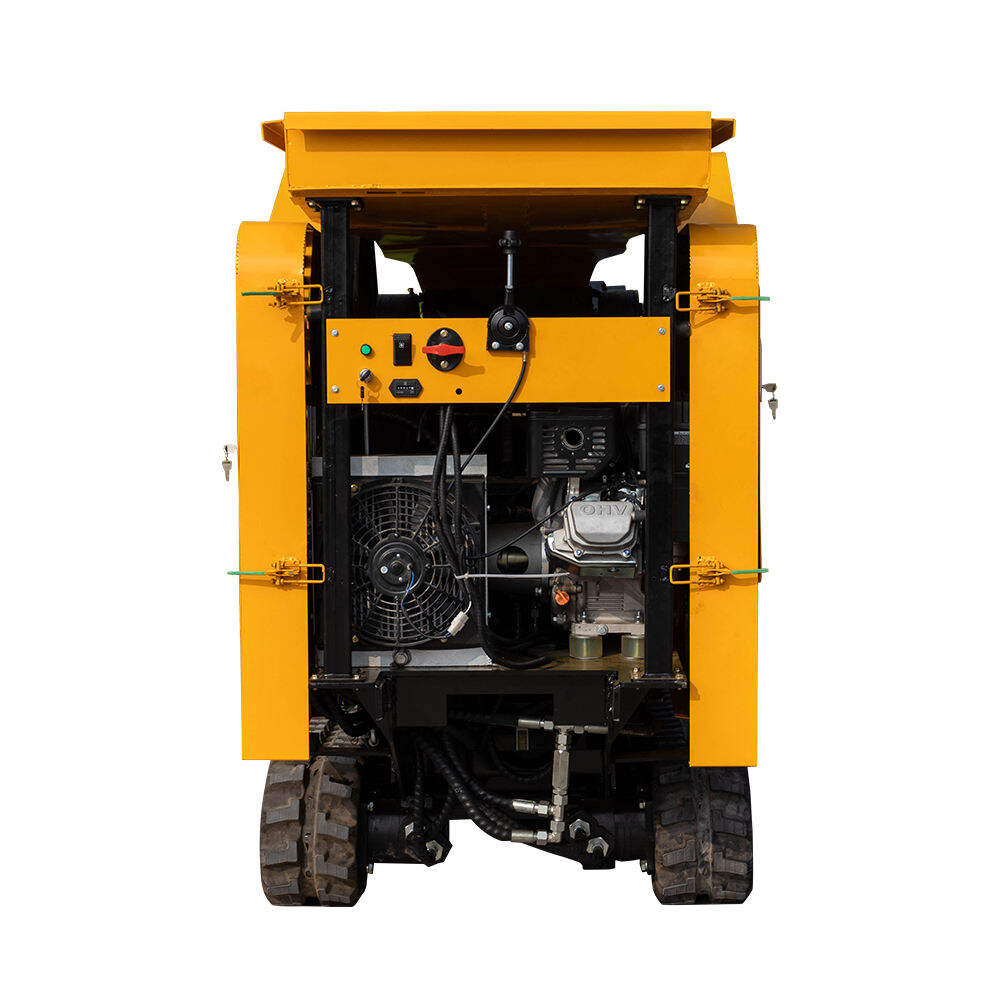

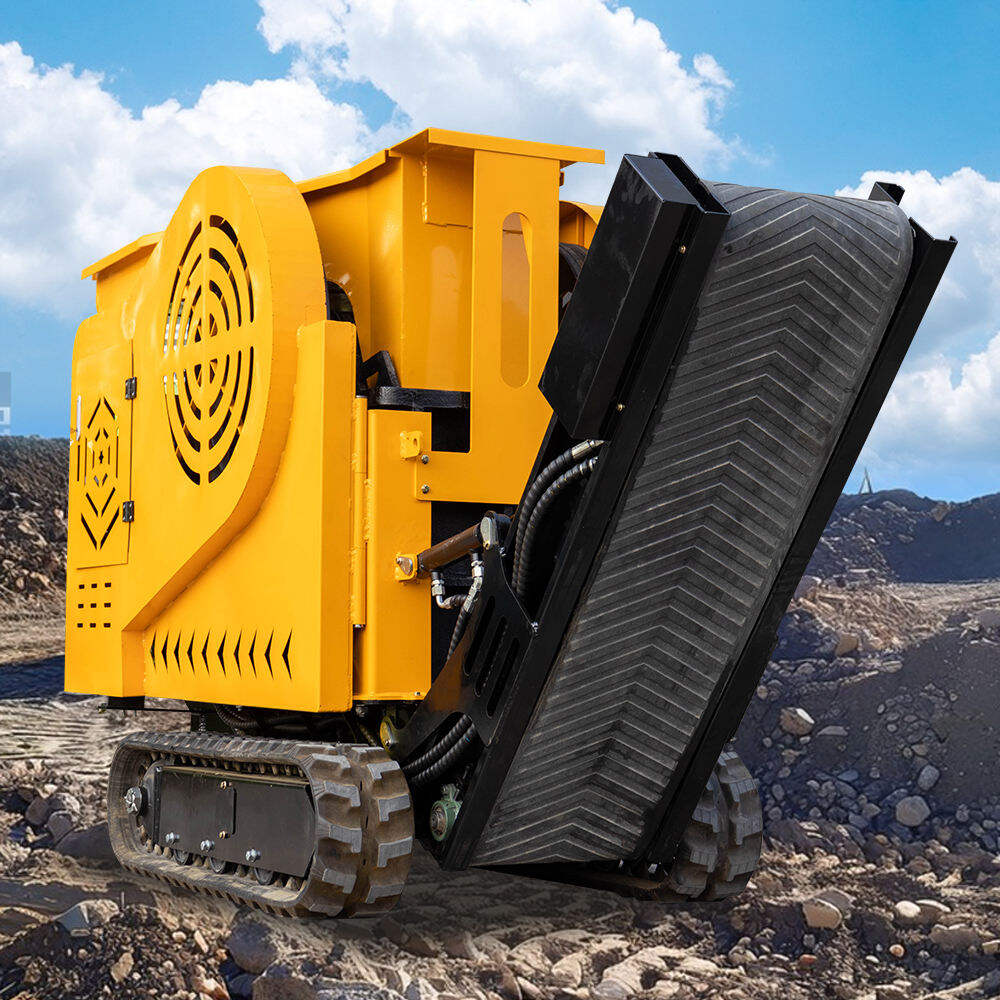

HTJC430 Crusher Machine

Advantages

High-efficiency crushing

Featuring an optimised V-shaped deep cavity design that creates multi-stage crushing zones, throughput increases by 15%-25% compared to conventional models, achieving a crushing ratio of up to 8:1.
Core crushing components are crafted from high-chromium cast iron or high-manganese steel with hardness reaching HRC48-62. Combined with a progressive tooth profile, this ensures 98% uniformity in final product particle shape.

Sturdy and durable

The frame employs heavy-duty welding techniques with stress-relief treatment, paired with forged alloy steel eccentric shafts, delivering a 20% increase in load-bearing capacity and enhanced impact resistance. Upgraded sealing protection effectively blocks dust and moisture ingress, adapting to harsh mining conditions such as high dust levels and humidity, with a comprehensive failure rate below 0.8%. Wear-resistant components exhibit a 2.5-fold increase in service life, with a single set of roller liners or liners achieving 1500-2000 hours in limestone applications, thereby reducing replacement frequency.

Intelligent and Convenient

Equipped with a PLC intelligent control system and pressure sensors, the overload protection response time is ≤0.3 seconds, automatically mitigating risks of material jamming and overpressure.
Featuring a hydraulic clearance adjustment system, it enables precise adjustment of discharge particle size under load conditions with an accuracy of ±5mm, allowing production requirements to be switched without shutdown. The modular design combined with a split-frame structure reduces core component replacement time to under 2 hours. Maintenance requires no complex tools, enabling even novices to get up to speed quickly.

Energy Conservation and Environmental Protection

The power system has undergone energy-saving calibration, reducing energy consumption by 12%-18% compared to conventional models. Long-term operation significantly lowers unit crushing costs. Equipped with high-efficiency dust suppression and noise reduction devices, combined with a deep cavity design to minimise material rebound and dust generation. Emissions and noise levels comply with environmental standards.
The automatic lubrication system and wear-resistant components reduce maintenance frequency by 30%, cutting annual maintenance costs by 40% and enhancing the equipment's overall return on investment.
