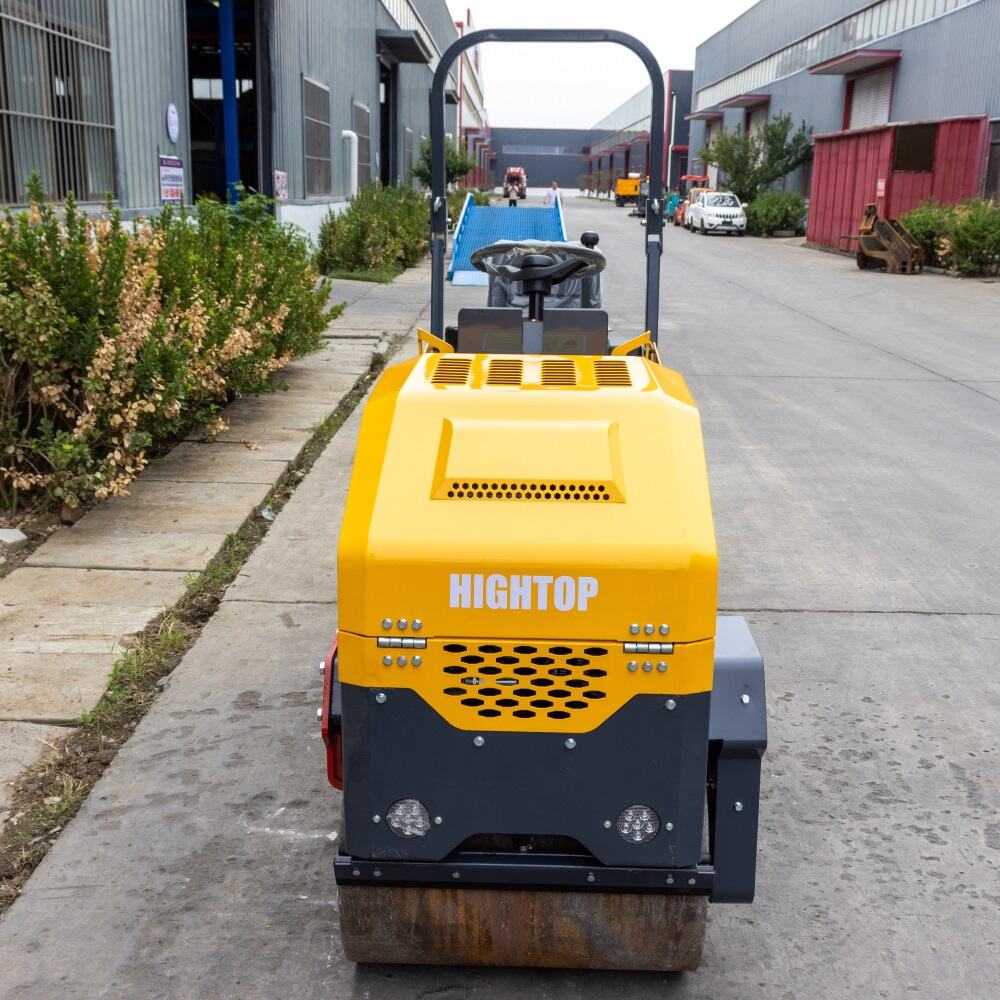

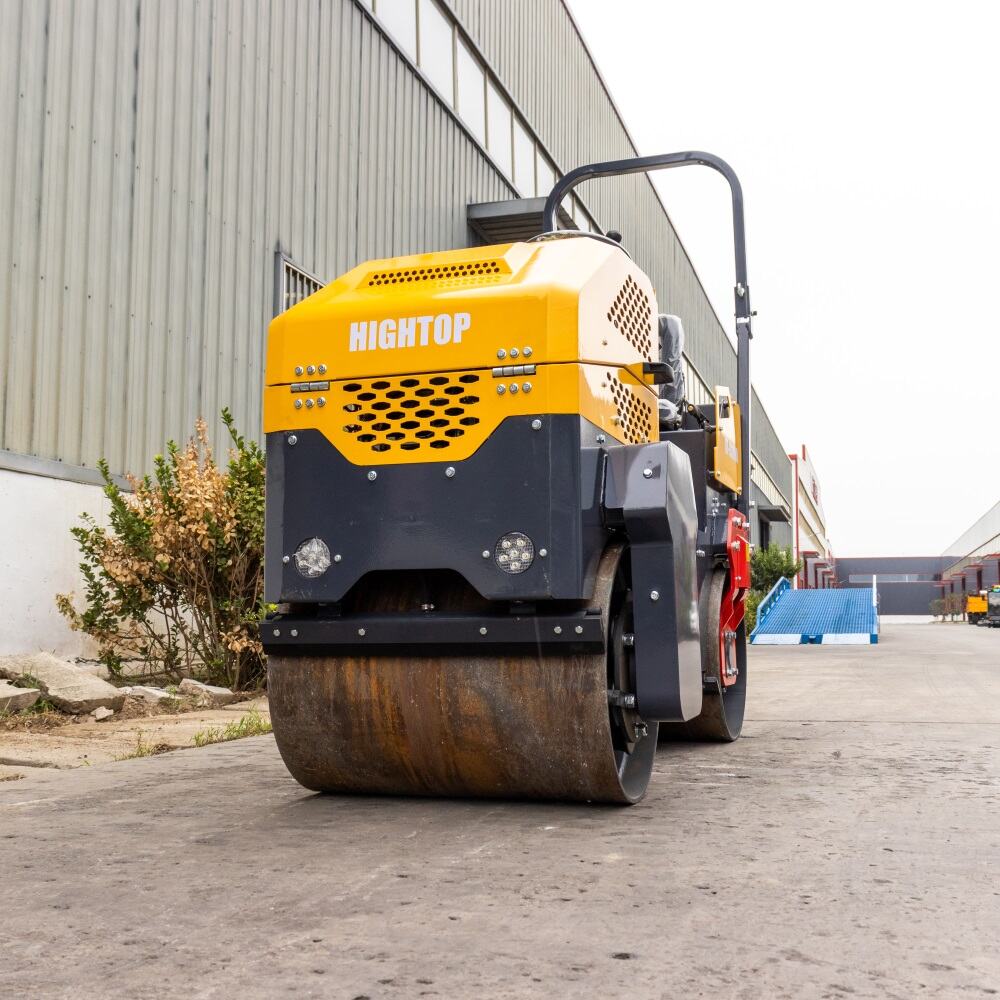

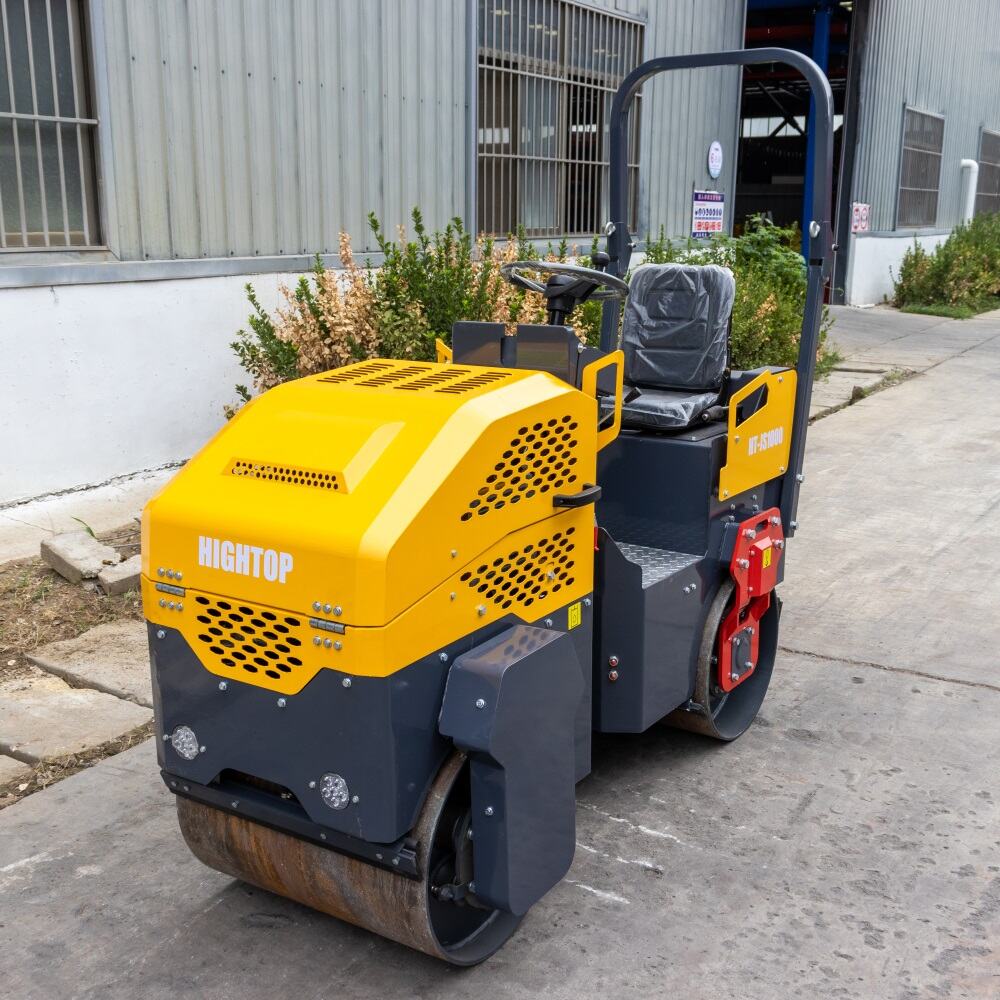

HT-JS1000 1-ton Hydraulic Dual-Drive Road Roller

HT-JS1000 1-ton Hydraulic Dual-Drive Road Roller

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT-JS1000

Inquire Now

Product Description

Applications

Parameters

Features

Advantages

Product Description

The HT-JS1000 is a 1-tonne ride-on vibratory road roller, expertly engineered for high-precision compaction in confined and challenging workspaces. Designed around the principles of compact agility, reliable performance, and user-centric operation, this road roller is a core solution for municipal maintenance, small-scale infrastructure projects, and auxiliary compaction tasks. With an operating weight of 1000kg, the HT-JS1000 boasts a streamlined, space-efficient frame measuring approximately 2100×1000×1650mm, making it exceptionally maneuverable in narrow passages, inter-building spaces, workshops, and utility corridors where larger machines cannot operate efficiently.

Equipped with a fully hydraulic steering system, a minimum turning radius of just 2600mm, and 30% gradeability, the HT-JS1000 enables smooth, stable operation on both level and sloped surfaces. Its dual steel drum design, combined with high-frequency vibration, ensures uniform compaction across diverse materials such as asphalt, soil, and granular aggregates. Renowned engines like Honda deliver dependable power with low fuel consumption, while the integrated hydraulic drive system provides consistent performance with minimal maintenance requirements. Lightweight yet durable, this road roller strikes an ideal balance between operational efficiency, versatility, and long-term reliability.

Applications

The HT-JS1000 excels in a wide range of compaction scenarios thanks to its lightweight chassis, compact dimensions, and high-frequency vibration capabilities.

Municipal Road Maintenance:
It is ideal for repairing urban roads, alleys, and pedestrian pathways. Its edge-compaction ability ensures thorough consolidation along curbs, sidewalks, and other tight spaces, maintaining quality standards while enhancing urban infrastructure.

Utility Trench Backfilling:
The machine efficiently completes trench backfilling tasks for water, gas, electricity, and telecom installations. The dual steel drums deliver consistent compaction along trench edges, avoiding under-compacted areas and ensuring the longevity of buried utilities.

Residential and Landscaping Projects:
Compact courtyards, gardens, and residential driveways benefit from its precise manoeuvrability. It can level and compact soil, gravel, or asphalt while avoiding damage to surrounding structures or landscaping features.

Small-Scale Industrial and Rural Projects:
The HT-JS1000 supports factory floor preparation, warehouse foundations, rural pathways, and farmyard levelling. Its high-frequency vibration and adjustable compaction depth allow operators to achieve professional-grade results in small or irregularly shaped areas.

Parameters

Model	HT-JS1000
Speed	0 - 8km/h
Turning radius	2000mm
Climbing Ability	30%
Model	Honda GX390/ Changfa CF186FAE
Type	Gasoline engine/diesel engine, air-cooled four-range
Power	13hp/9hp/3600rpm
Fuel tank capacity	5.5 L
Fuel consumption rate	300g/kw·h
Before/after static line load	77/56N/cm
Nominal amplitude	0.5mm
Vibration frequency	75Hz
Excitation force	30kN
Steel Wheel Width	700mm
Steel Wheel Diameter	530mm
Total Length	2100mm
Total Width	860mm
Total Height (Handle Upright)	1600mm
Packaging Dimensions	120mm
Max. Digging depth of blldozer blade	2200mmx950mmx1650mm
Operating Weight	1100kg
Drive	Hydraulic drive/Front and rear wheel drive
Vibration	One-click vibration and electromagnetic clutch
Turn	Hydraulic steering
Sprinkling method	Electrically controlled pressure water spray

Features

The HT-JS1000 is characterized by its “flexible adaptability, efficient compaction, reliable stability, and operator-friendly design.”

Compact and Agile Design:
Measuring approximately 2100×1000×1650mm, with a minimum turning radius of 2600mm and 30% climbing capability, this roller navigates confined and complex environments with ease.

Dual Steel Drum System:
Engineered for complete edge-to-edge compaction, the steel drums prevent dead zones and ensure uniform material consolidation, even on narrow or irregular surfaces.

High-Frequency Vibration:
Operating at 70Hz with 25–30 kN vibratory force, the HT-JS1000 achieves layered compaction depths up to 25cm, supporting both soil and asphalt compaction requirements.

Reliable Powertrain:
Powered by Honda or equivalent engines with integrated hydraulic transmission and electromagnetic clutch vibration control, the roller delivers stable, consistent force with low failure rates and minimal maintenance.

Water Spray System:
A 60L water tank suppresses dust and protects steel drums during asphalt compaction, enhancing operator safety and material quality.

Operator Comfort:
Ergonomic controls, adjustable seating, and intuitive operation reduce operator fatigue and facilitate rapid familiarisation, even for new personnel.

Advantages

Flexible and mobile

Working weight: 1000kg. With its compact chassis and minimum turning radius of just 2600mm, it effortlessly navigates confined spaces inaccessible to larger machinery—such as trenches, narrow building gaps, and pavements.
Boasting 30% superior climbing capability and fully hydraulic steering, it maintains stable operation even on complex terrain, making it ideal for diverse applications including utility trench backfilling and renovation projects in older residential areas.

Compact and efficient

The dual steel-wheel design, coupled with 70Hz high-frequency vibration, delivers an excitation force of 25-27 kN, achieving a layered compaction depth of 25cm. This enables rapid enhancement of compaction density for materials such as soil and asphalt.
The steel wheels exhibit excellent edge-following capability, precisely conforming to boundary features like kerbstones to eliminate compaction dead zones. This ensures operational quality meets relevant standards for municipal engineering and similar projects.

Stable and durable

Equipped with engines from renowned brands such as Honda, coupled with imported hydraulic transmission units and premium components including NSK bearings, it delivers stable power output with low failure rates.
The chassis features a spray-coated finish for rust and corrosion resistance, and incorporates a gravity-fed water sprinkling system. This reduces dust generation during operation while protecting the steel wheels, thereby extending the equipment's service life.

User-friendly operation

Fully hydraulic continuously variable transmission design, coupled with electromagnetic clutch vibration control, features simple and intuitive operating logic, enabling novices to master it in a short time.
Equipped with an adjustable deluxe seat and a human-centred cab layout, it ensures smooth and bump-free operation, effectively reducing fatigue during prolonged use.
