HT360 Large Crawler Excavator For Heavy-Duty Applications

HT360 Large Crawler Excavator For Heavy-Duty Applications

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT360

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

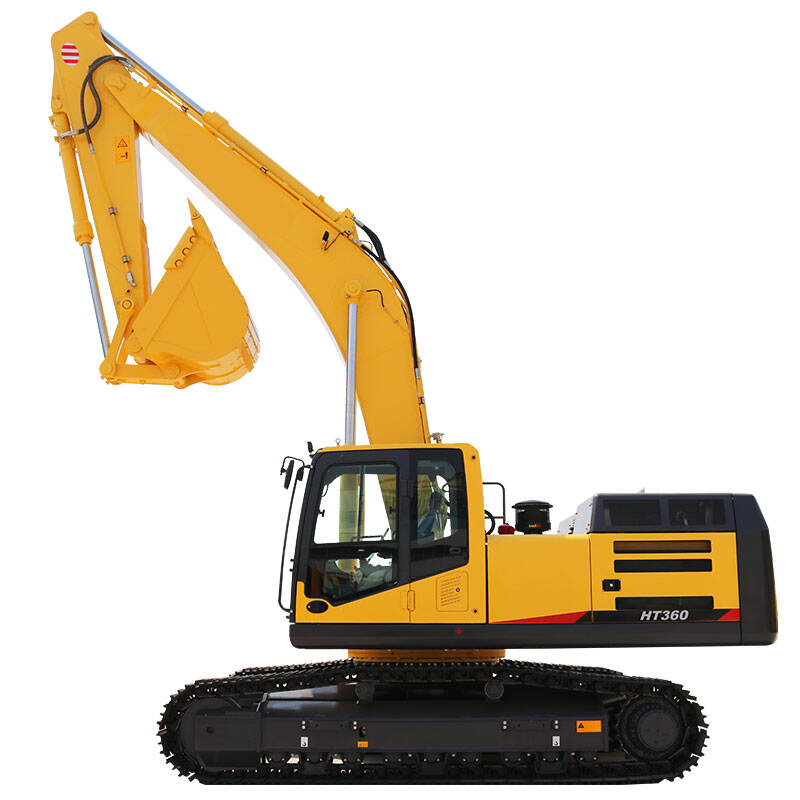

The HT360 equipment has a total weight of 36 tons, with overall dimensions designed to balance operational flexibility and stability: total length 11,187 mm, total width 3,190 mm, cab height 3,165 mm, minimum ground clearance 498 mm, and rear swing radius 3,525 mm, enabling adaptation to diverse complex working environments.

Video

Applications

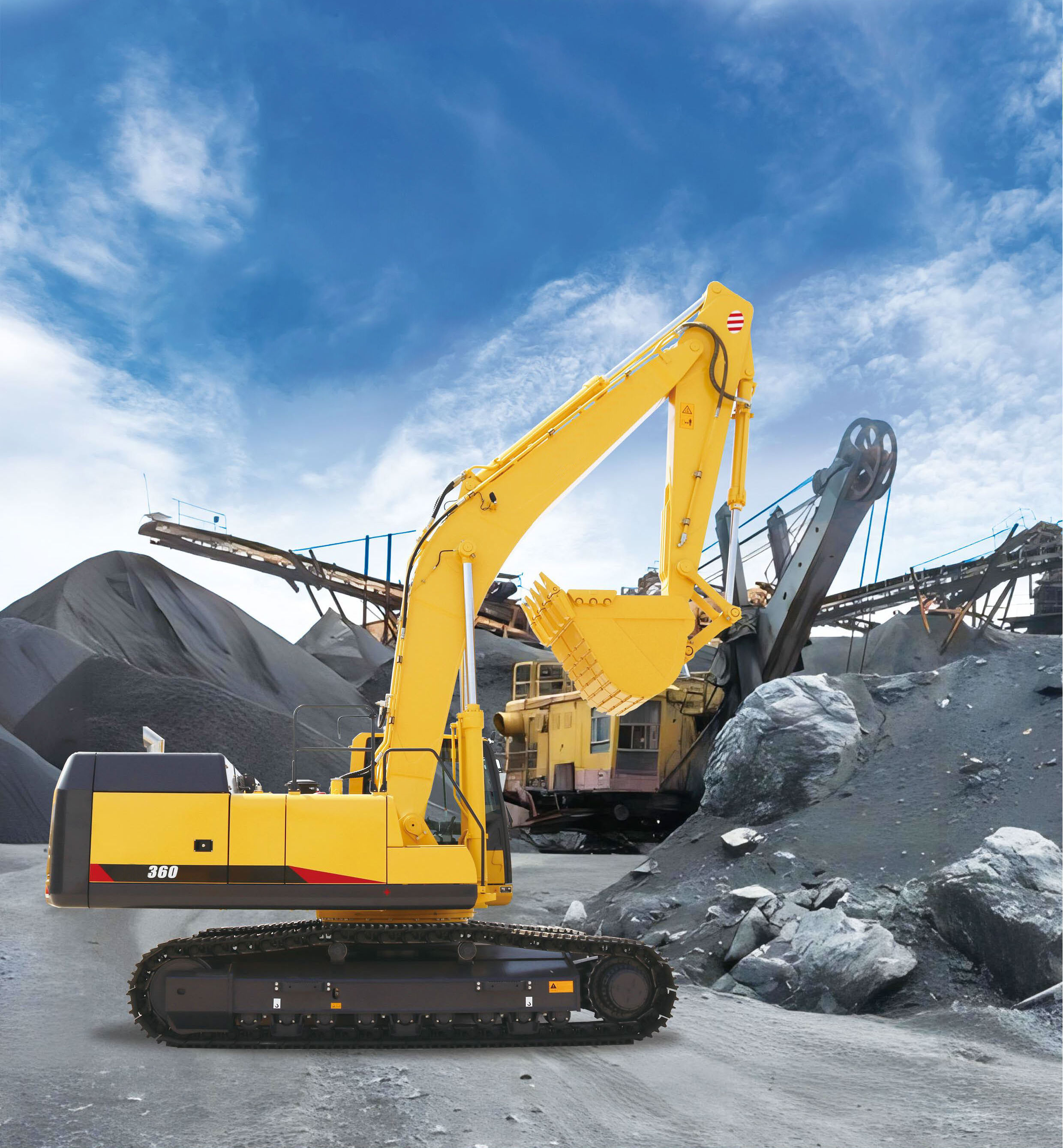

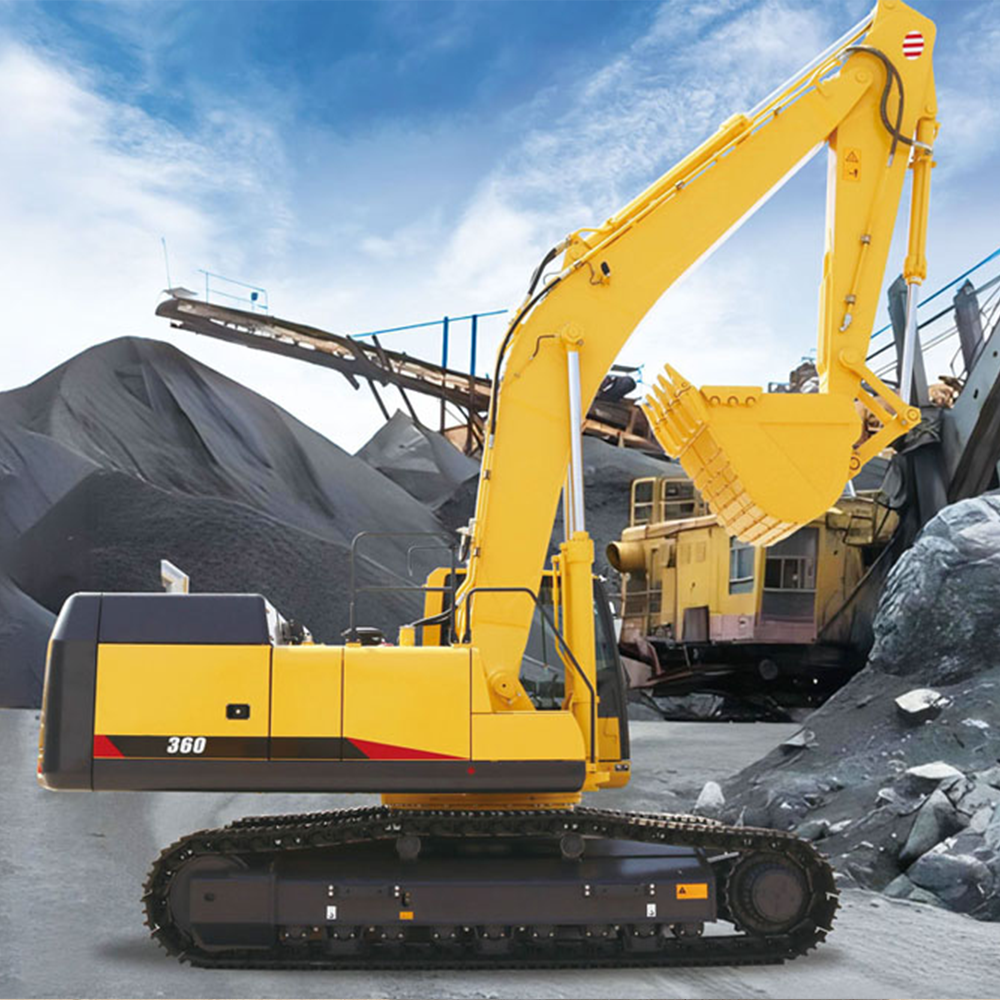

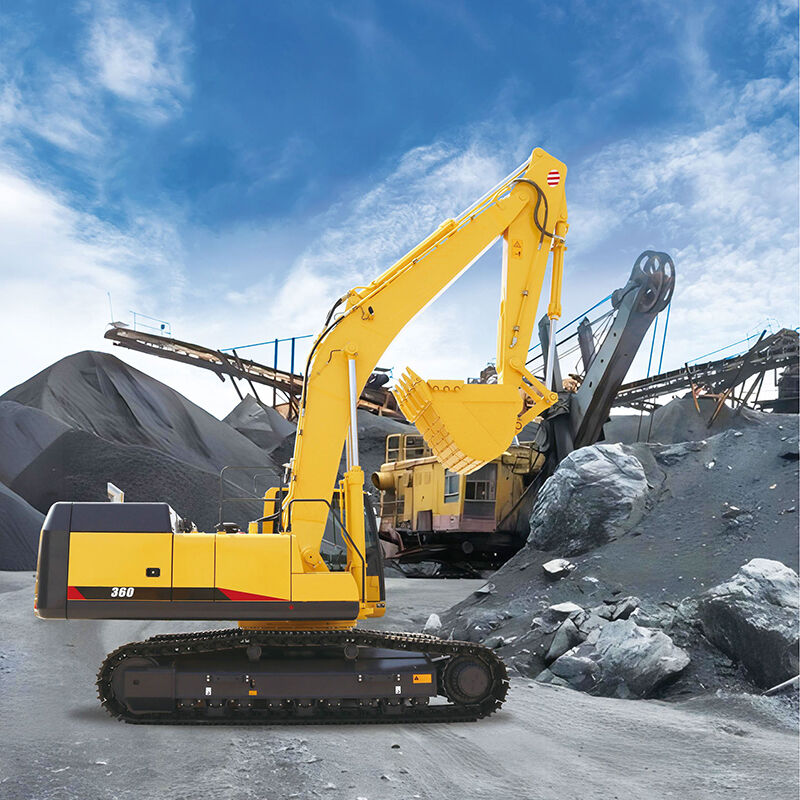

Mining and Quarrying Operations:
Capable of efficiently undertaking the extraction, overburden removal and loading of minerals such as coal and limestone, featuring a robust structure designed to withstand high-intensity impact loads and adapt to the harsh conditions of mining environments.

Large-scale infrastructure projects:
Suitable for road subgrade excavation, railway tunnel portal preparation, and large bridge foundation excavation, with a maximum digging depth of 7370mm to meet deep-level operational requirements. It can also undertake large-scale earthmoving and site levelling in new urban development projects.

Port and Waterway Operations:
At port terminals, it can undertake bulk cargo handling and site clearance tasks; in hydraulic engineering projects, it can participate in heavy-duty operations such as river dredging and desilting, reservoir and dam reinforcement, and the excavation of large-scale irrigation channels.

Demolition and crushing operations:
When fitted with attachments such as a breaker hammer, it can undertake high-intensity operations including large-scale building demolition, rock breaking, and concrete pile head removal, significantly enhancing construction efficiency and shortening project timelines.

Parameters

Model	HT360
Total Weight	36t
Track grounding length	4030mm
Bucket capacity	1.6-1.8m³
Track length	4945mm
Engine model	Cummins QSC8.9
Rail guage	2590mm
Rated power	242kw/2000r/min
Track width	3190mm
Fuel tank volume	650L
Track shoe width	600mm
Walking speed	6.2/4km/h
Swing speed	8.2r/min
Distance from the center of rotation to the rear end	3525mm
Climbing ability	35°
Track tooth thickness	30mm
Bucket digging force	245kn
Counterweight height	2627mm
Arm digging force	185kn
Max. Digging depth of blldozer blade	200mm
Grounding length during transportation	5875mm
Ground pressure	70.8kpa
Arm length	3185mm
Traction	247.8kn
Boom length	6470mm
Hydraulic pump model	K5V160DT
Max.excavation height	10200mm
Max.flow rate	270*2+30L/min
Max.unloading height	7135mm
Work pressure	37mpa
Max.digging depth	7370mm
Hydraulic tank volume	310L
Max.vertical digging depth	6380mm
Total length	11187mm
Max.digging depth when digging out 2.5m level	7190mm
Overall width	3190mm
Max.digging distance	11100mm
Total height (boom top)	3180mm
Max.excavation distance on the ground	10910mm
Overall height(top of cab)	3165mm
Min.turning radius	4265mm
Counterweight ground clearance	1190mm
Max.height at minimum turning radius	8500mm
Minimum ground clearance	498mm
Tail turning radius	3525mm

Features

Compact and agile with exceptional narrow-area adaptability:
Measuring just 1540mm in total length without attachments and standing 1390mm tall, featuring 150×36×72mm tracks. It navigates effortlessly through residential areas, historic streets, greenhouses and other confined spaces. Its minimal ground clearance accommodates lightly undulating surfaces, minimising ground disturbance during operation.
Powerful and environmentally friendly, compliant with cross-border standards: The 13.5kW Briggs & Stratton engine employs natural aspiration, delivering stable power output at a calibrated 3000rpm. Meeting stringent Euro 5 and EPA emission standards, it satisfies demanding environmental requirements both domestically and internationally. The 5-litre fuel tank capacity provides sufficient endurance for small-scale operations.

Highly versatile with multiple attachments and exceptional functional scalability:
Supports rapid interchangeability of over 30 attachments including buckets, snow ploughs, sweepers, grapples, and augers. With a breakout force of 350 kN, it handles light excavation, loading, and clearing tasks. Equipped with a three-point linkage and 9-second lift cycle for enhanced operational efficiency.

User-friendly operation with manageable maintenance costs:
The upright operating design streamlines procedures, while key maintenance components are neatly arranged. Core parts utilise proven models, with high-wear items such as tracks offering strong interchangeability. This facilitates straightforward procurement and replacement of spare parts, thereby reducing equipment downtime costs.

Stable tracks with excellent adaptability to working conditions:
The tracked travel design, combined with a well-balanced ground pressure ratio, minimises slippage and bogging on slippery surfaces or soft farmland. The 0-6 km/h travel speed accommodates on-site manoeuvring requirements and suits operation across diverse terrain.

Advantages

Cummins engine

HT360 Excavator adopts advanced technology and design, can be equipped withhigh-performance Cummins engine or lsuzu engine, and is matched with awell-known brand hydraulic system to ensure strong power output and stableoperating performance. lts low fuel consumption not only reduces operatingcosts, but also reduces the impact on the environment, in line with the develop-ment concept of green and environmental protection.

Large-diameter hydraulic main valve

It adopts engine direct-drive integrated radiator, large-diameter hydraulic mainvalve, small system pressure loss, large-torque swing motor, and fast swingstart speed. This enables it to maintain efficient and stable operating conditionsin harsh working environments, and can quickly complete large-scale miningand earthworks, greatly improving production efficiency.

Scope of the major assignment

This Hightop excavator boasts a maximum digging height of 10,200mm and a maximum digging depth of 7,370mm, meeting diverse operational demands such as deep pit excavation and high-altitude unloading. Its maximum digging reach at ground level extends to 10,910mm, offering extensive coverage without frequent repositioning. Additionally, the 498mm minimum ground clearance and 1190mm counterweight ground clearance minimise impact damage to the undercarriage and counterweight, thereby extending the equipment's service life.

High-efficiency task combination

The HT360 excavator's hydraulic system employs a K5V160DT hydraulic pump, delivering a maximum flow rate of 270*2+30 litres per minute. Coupled with an operating pressure of 37MPa, it ensures swift and precise response to commands. Travel speeds of 6.2/4 km/h deliver superior relocation efficiency compared to comparable models, while a swing speed of 8.2 r/min ensures agile manoeuvring. The 1.6-1.8m³ bucket capacity accommodates substantial earthmoving demands, enabling higher single-bucket productivity and significantly enhancing overall construction efficiency.
