1200kg HT1200 Gasoline Motor Powered Rotation Hopper Mini Dumper

1200kg HT1200 Gasoline Motor Powered Rotation Hopper Mini Dumper

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT1200

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

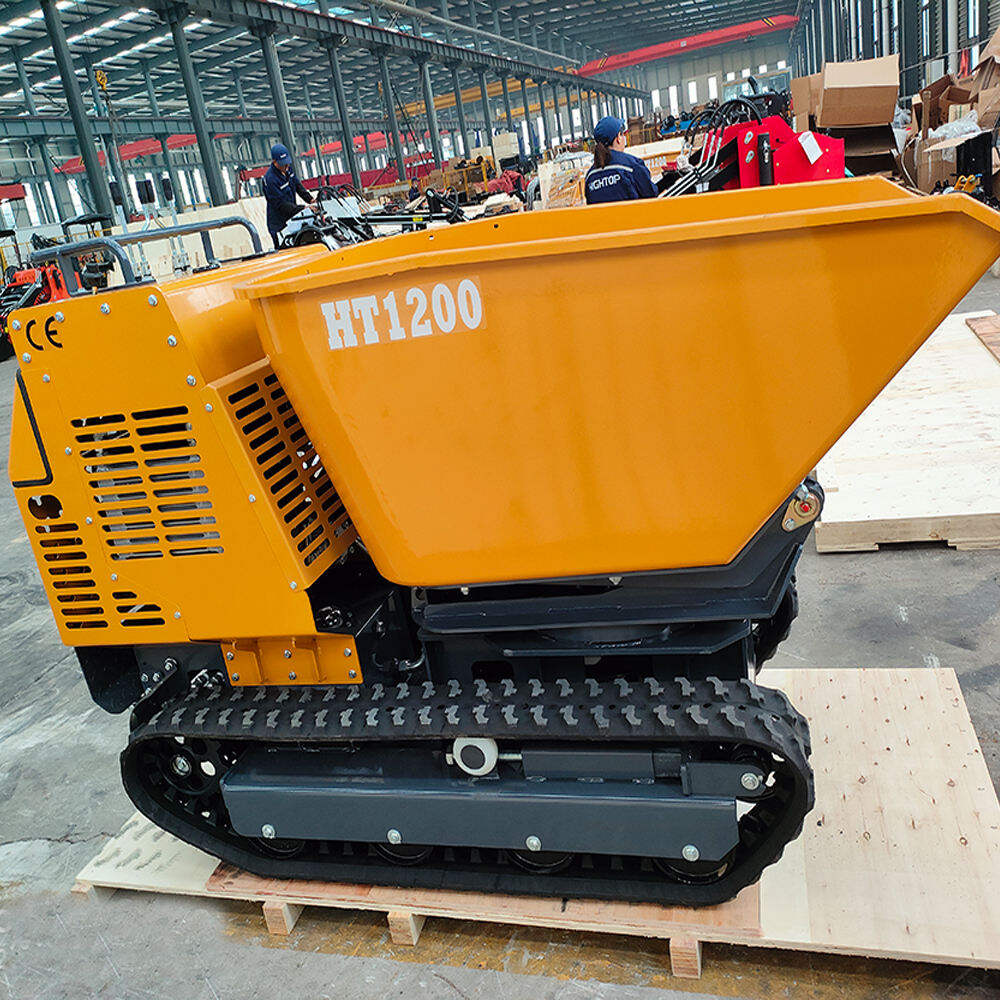

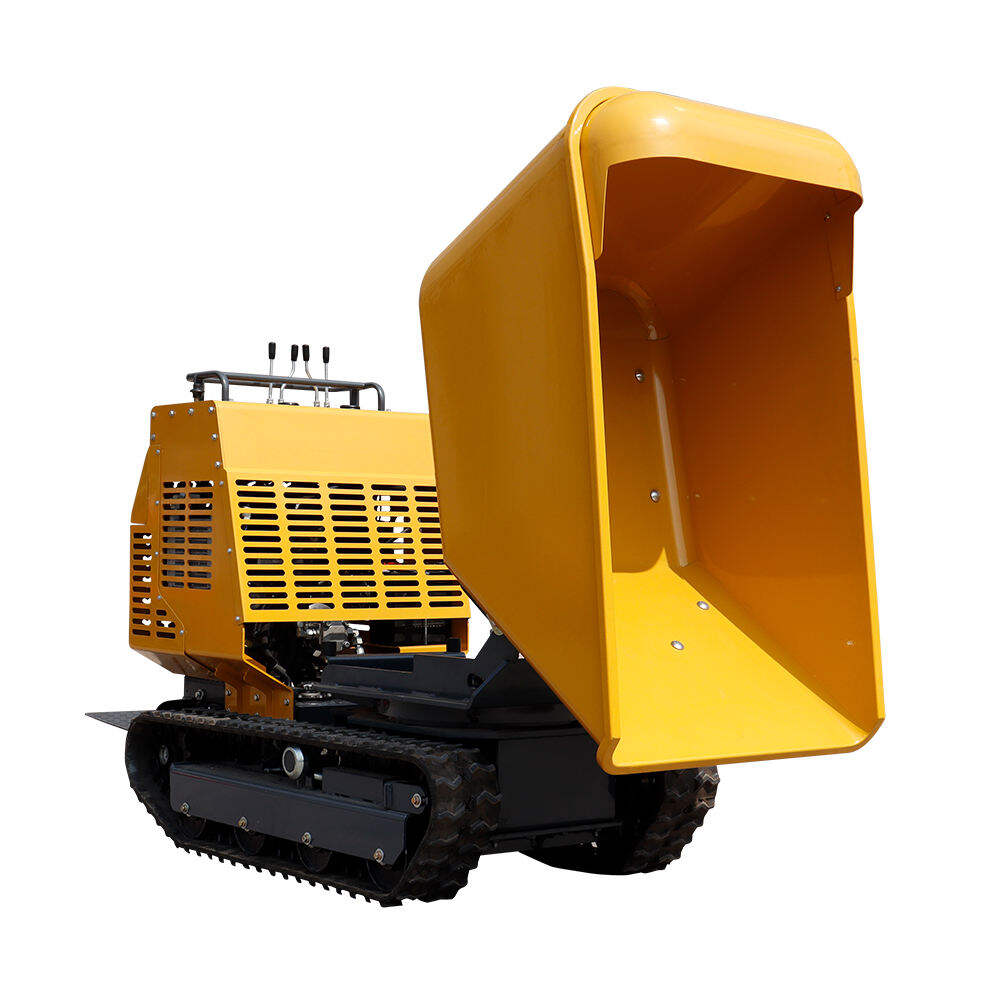

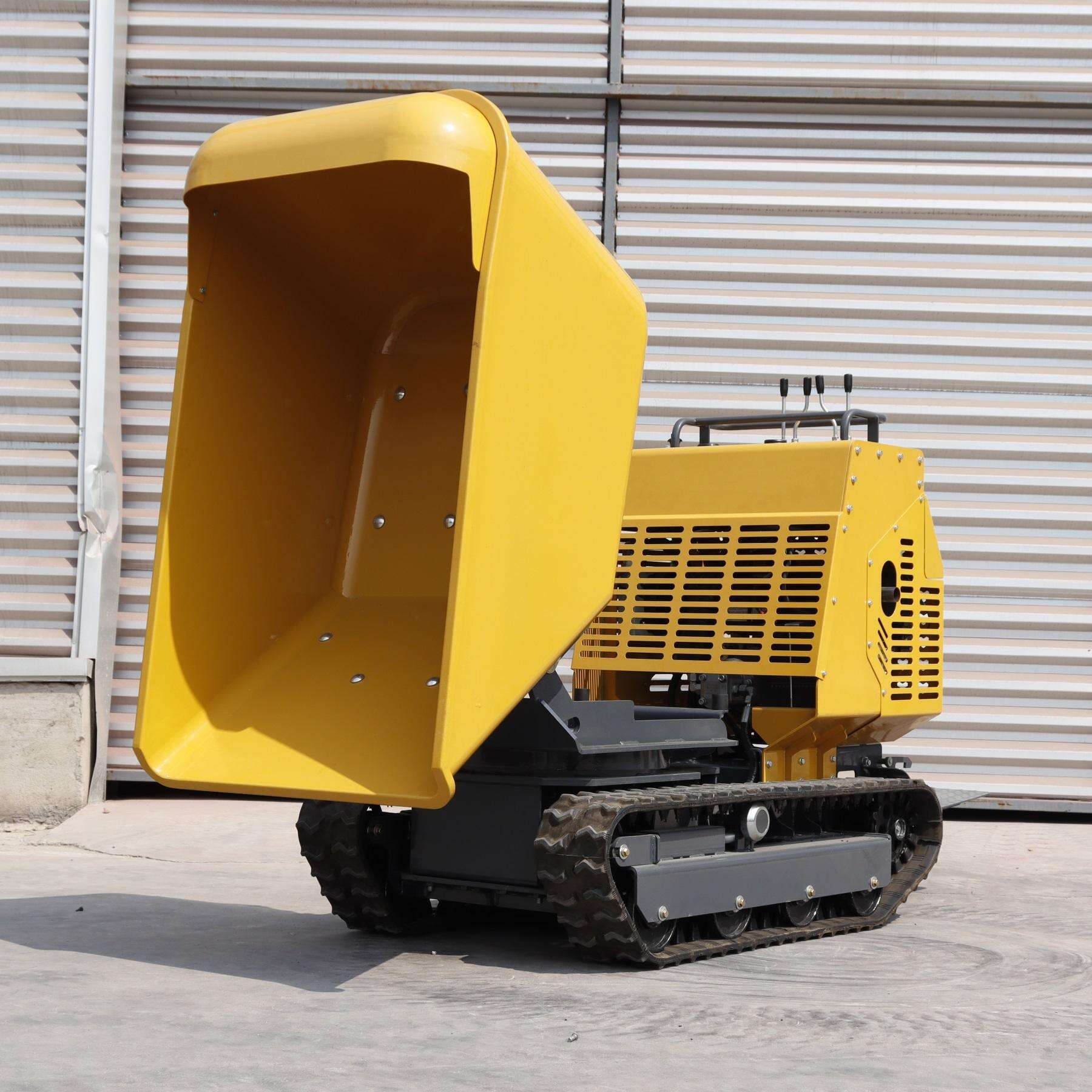

The HT-1200, as a heavy-duty high-efficiency transport vehicle, is specifically engineered for medium to large-scale operational environments. Integrating advanced engineering design with comprehensive performance specifications, it precisely meets the high-intensity material handling demands of core sectors such as mining operations, large-scale infrastructure projects, and municipal works. This equipment stands as a pivotal asset for enhancing operational efficiency.

Additionally, the HT-1200 is designed with versatility and operator convenience in mind. Its reinforced chassis and stable frame allow for consistent performance under heavy loads, while the rotation hopper mechanism ensures precise and controlled material discharge, reducing manual handling and accelerating workflow. The vehicle’s compact dimensions combined with reliable traction make it suitable for navigating uneven terrain, tight access points, and confined workspaces, extending its application to challenging sites such as urban construction zones, landscaped areas, and industrial facilities. Durable components and a robust gasoline engine ensure continuous operation with minimal downtime, making the HT-1200 a dependable solution for both intensive daily use and long-term project demands.

Video

Applications

Mining field:
It is suitable for medium and large mining areas such as open-pit coal mines and metal mines, and is responsible for the batch transportation of ores, gangue and waste rocks. The strengthened body and four-wheel drive system can cope with the rough roads and high-dust environment in the mining area, and work efficiently with the loading equipment to increase the average daily transportation volume.

Large-scale infrastructure projects:
Serving key projects such as high-speed railways, motorways, and industrial parks, transporting earthworks, aggregates, asphalt mixes, and construction materials. Its heavy-duty, high-efficiency characteristics align with intensive operational rhythms, shortening material transfer cycles and accelerating project timelines.

Municipal and Road Engineering:
Participate in new urban district development, river dredging, main thoroughfare refurbishment and pipeline network installation projects. Its agile design enables manoeuvring through congested construction sites, facilitating the transfer of excavated earth, pipework materials and construction waste, while adapting to diverse municipal operational requirements.

Water Resources and Energy Development:
Assisting in outdoor projects such as reservoir reinforcement, embankment construction, and wind/solar power station development. Capable of reliably transporting heavy construction materials including boulders, cement, and aggregates, maintaining dependable passage through challenging terrain including muddy conditions and slopes. Suited to the demanding conditions of water conservancy and energy engineering projects.

Parameters

Model	HT1200
Engine Model	Briggs&Stratton
Optional engine	KOOP Euro5, RATO
Engine Type	Single cylinder, OHV,4-stroke, air cooling
displacement (ML)	420CC
Rated Power (kw/rpm)	13.5HP/3600rpm
Fuel Type	92 # Gasoline
Fuel Tank capacity(L)	6.5
Net weight (KG)	850
Maximum load capacity(KG)	1200
Body size (MM)(Footboard not included)	20609001400
Pedal machine size included (MM)	24709001400
Container size (MM)	1400800600
Chassis width (MM)	900
Maximum rotation Angle (°）	260
Rotation mode	Hydraulic rotation
Tipping interval (MM)	320mm
track width (MM)	180
Track groundinglength (MM)	1000
Chassis ground dearance(MM)	140
Cargo boxCapacity (dm³)	594
Tipping systme	Hydraulic Tipper
Tilting Angle (°）	90
Clearance after tipping container (MM)	300
Walking Speed (km/h)	5
Climbing abillty(°）	25

Features

The HT-1200, as a core piece of medium-to-large heavy-duty transport equipment, boasts the essential characteristics of heavy-load capacity, robust reliability, intelligent safety, and comfortable convenience. Its reinforced chassis and wear-resistant alloy cargo box significantly enhance load-bearing and damage resistance capabilities. The golden power chain, paired with a high-pressure hydraulic lifting system, enables highly efficient operations. The four-wheel drive system adapts to complex working conditions such as rugged mining areas and soft terrain. Intelligent safety features, including IMU attitude monitoring and a high-strength cab, establish comprehensive protective defences. Meanwhile, the saloon-style interior and intelligent monitoring system balance operational comfort with maintenance convenience, perfectly meeting the demands of large-scale heavy-duty transport across multiple sectors.

In addition, the HT-1200 offers versatile attachment compatibility, allowing operators to equip it with various accessories such as reinforced side panels, additional protective guards, and specialized material handling tools. This adaptability further extends the operational scope of the vehicle, enabling efficient handling of diverse cargo types, from loose aggregates to construction materials. Its precision-engineered hydraulic system ensures smooth and controlled tipping operations, reducing spillage and minimizing downtime. The ergonomic layout of the control interface enhances operator efficiency, while the durable, corrosion-resistant components ensure a long service life even under continuous heavy-duty usage, making the HT-1200 an indispensable asset for demanding industrial and construction environments.

Advantages

Heavy-duty and highly efficient

Equipped with a high-power Euro IV engine and intelligent transmission, it delivers superior overall power performance, effortlessly handling heavy-load starts and inclines while balancing power with fuel efficiency.
The high-pressure hydraulic lifting system responds swiftly, minimising unloading times and maximising operational cycle efficiency. It coordinates seamlessly with loading equipment to accelerate overall construction progress.

Robust and dependable

The cargo box is constructed from high-manganese steel wear-resistant material, offering impact resistance and abrasion tolerance to withstand prolonged exposure to heavy-duty materials such as ore and gravel.
Equipped with a four-wheel drive system and reinforced drive axles, it effortlessly navigates challenging mining terrains, soft ground conditions, and high-dust environments, ensuring stable operation without compromise.

Intelligent Safety

The cab features a high-strength reinforced sheet metal design, complemented by a rollover protection system and a dual-stage braking system, delivering quicker braking response and comprehensive protection against operational hazards.
Certain configurations incorporate regenerative braking functionality, enhancing fuel efficiency while providing additional braking support to further bolster safety.

Comfortable and convenient

The cab features a saloon-style interior design, equipped with four-airbag ergonomic seats and a wraparound console. Its spacious layout and excellent sealing significantly reduce fatigue during extended operations.
Key components are logically arranged, complemented by a fully rear-folding electric lift hood for straightforward servicing and reduced downtime.
Long-life wear parts and a pre-compressed air filter minimise maintenance frequency. Support for multiple operating modes adapts to diverse scenarios, lowering overall operating costs.
