HT-L28 Telescopic Boom Mini Wheel Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT-L28

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

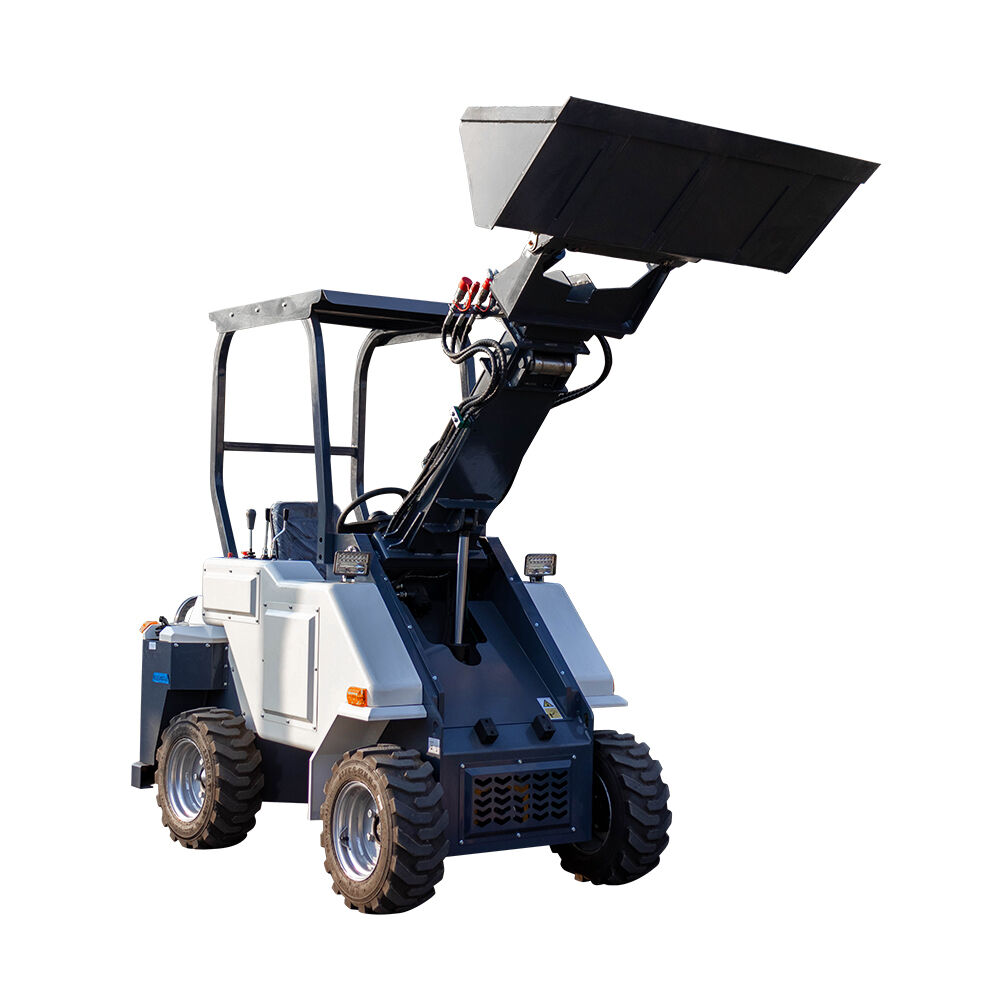

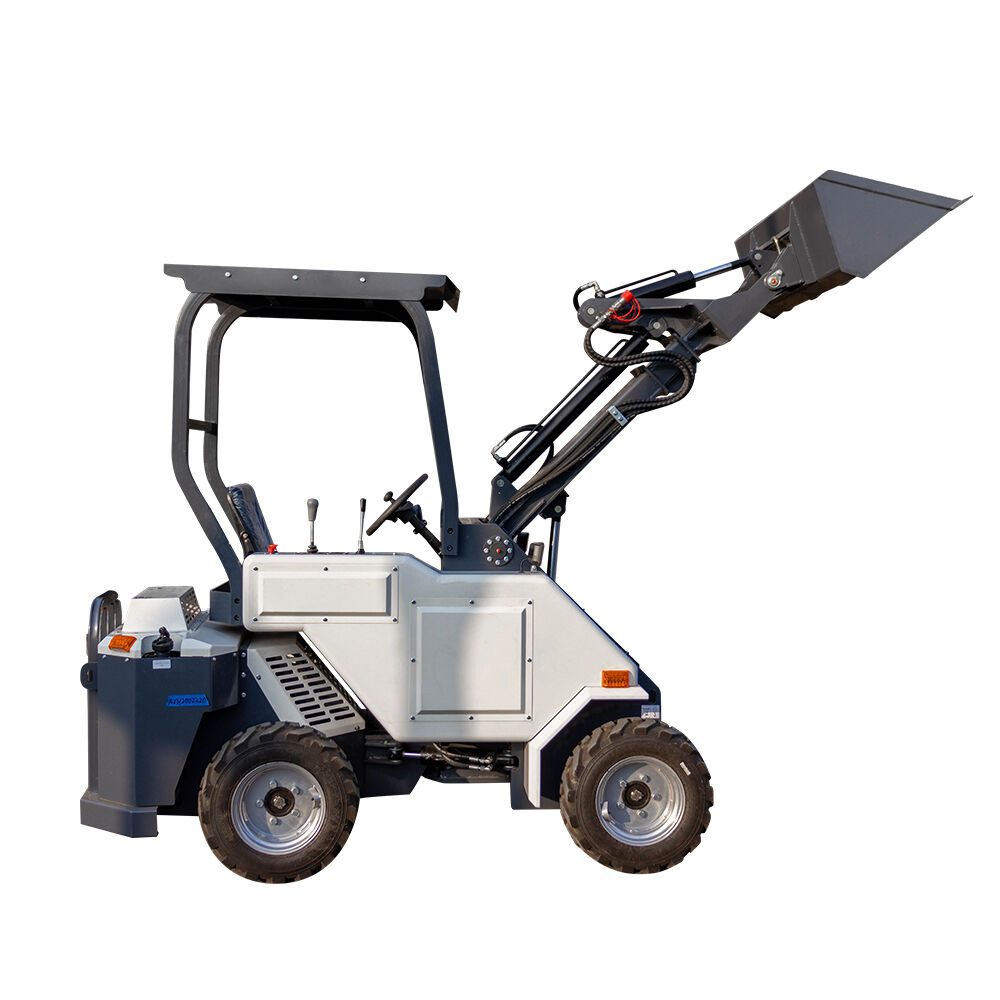

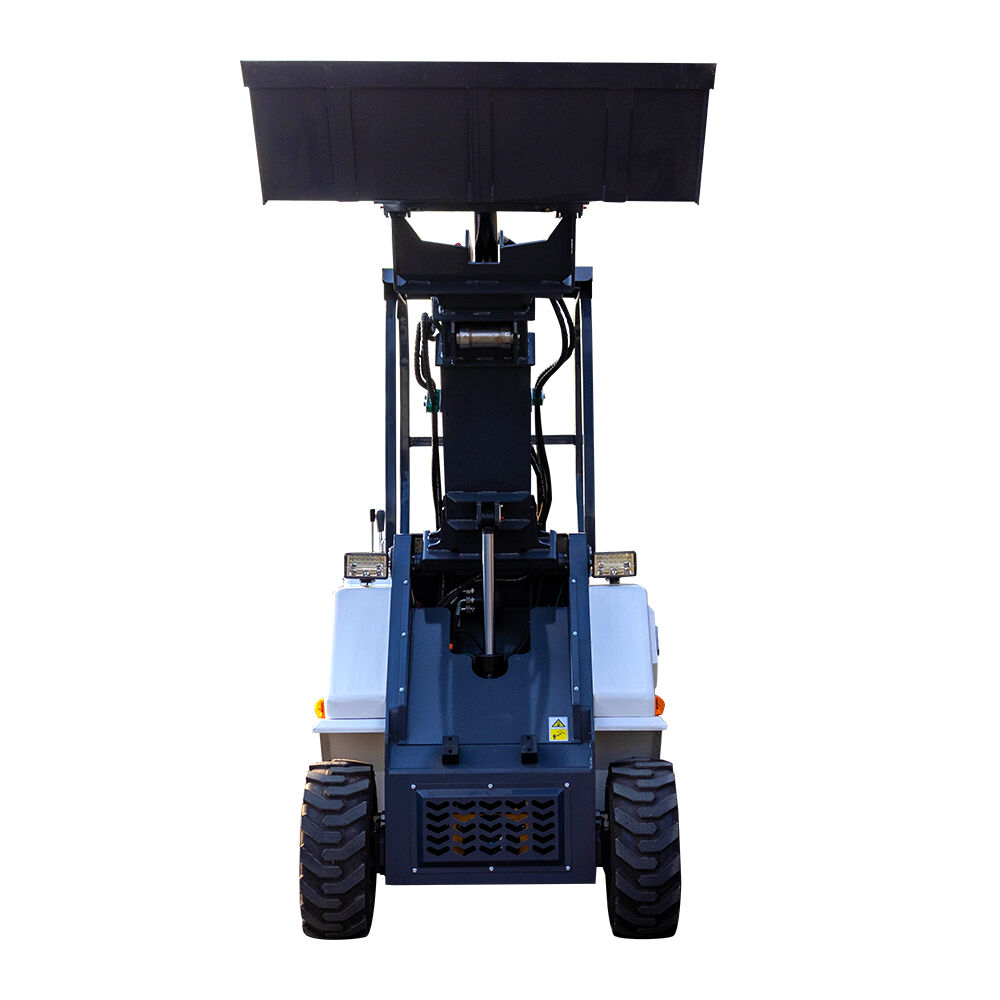

The HT-L28 is a compact articulated loader featuring a telescopic boom, with dimensions of 3380×1240×2250mm and an operating weight of 2000kg. Its 2600mm turning radius enables operation in confined spaces. Powered by a 23-horsepower engine from a renowned manufacturer, it boasts a rated load capacity of 800kg and a maximum lift height of 3350mm, supported by a stable and efficient hydraulic system. The machine facilitates rapid attachment changes for diverse tools, enabling precise handling of loading/unloading, material transfer, and light excavation tasks. Its durable construction and user-friendly operation make it widely applicable across construction, agriculture, municipal works, warehousing, and other varied working conditions.

Video

Applications

Building Construction and Minor Infrastructure Works:
Suitable for confined worksites such as older estate refurbishments and interior renovations, handling construction materials including sand, gravel, bricks and cement, clearing construction debris, and addressing blind spots where larger equipment cannot operate. Participates in rural road construction and small-scale pipeline laying, undertaking roadbed excavation and filling, earthwork backfilling, and material transfer. Operates flexibly without occupying excessive workspace.

Agriculture and Horticulture:
In greenhouses and orchards, it transports fertilisers, fruit, vegetables and other supplies, while its grab attachment clears branches and moves fodder. Its compact frame prevents damage to crops and structures.
For landscaping, it handles tree transplanting, soil levelling and nutrient-rich soil transport, making it ideal for park and residential estate landscaping. Quick attachment changes boost operational efficiency.

Municipal Maintenance and Urban Operations Management:
During urban alleyway and pavement repairs, it transports patching materials and clears road debris, while its snow plough/sweeper attachment handles accumulated snow and fallen leaves with minimal disruption to traffic.
It participates in trench excavation and backfilling for underground utility network upgrades, alongside routine material transport for municipal landscaping maintenance, aligning with the demands of refined urban operations and maintenance.

Parameters

Model	HT-L28
Max lifting height	3350mm
Maximum pin height	2680mm
Dumping Height of main boom( dumping angle 45°)	2000mm
Dumping reach of main boom	800kg
Lifting height of small boom	2680mm
Dumping height of small boom (dumping angle 45°)	2300mm
Max. Loading capacity of small boom	600kg
Overall length (bucket on ground position)	3380mm
Overall width	1240mm
Overall Height	2250mm
Wheel base	1360mm
Tread	20mm
Min. Ground clearance	190mm
Turning radius	2600mm
Engine model	Rato739/Briggs&Stratton3864/Honda GX690/Kubota D1105
Engine type	Gasoline engine,Air cooled/Diesel oil,Water cooled
Rated power	23HP/18.2kw
Rated speed (rpm)	3600/3000
Max. Torque	71.5
Speed at Max. Torque(rpm)	2200
Number of cylinders	2/3
displacement	739/627/690/1123ML
Rated fuel consumption	240g/kw·h
System Pressure (Mpa)	25MPa
Pump Pressure(Mpa)	31MPa
Driving	4 wheel drive
Steering type	All hydraulic steering
Tire model	23*8.5-12
Brake drum diameter	300
Carrying capacity	500Kg
Bucket volume	0.3m³
Max. Speed	12 Km/h
Net weight	1446/1552Kg
Working weight	2000KG
Gradeability	30%

Features

The HT-L28 Telescopic Boom Compact Articulated Loader features a compact design (3380×1240×2250mm) with a turning radius of just 2600mm, enabling nimble manoeuvring in confined spaces. Equipped with a 23-horsepower engine from a renowned brand, coupled with a stable hydraulic system, it delivers an 800kg rated load capacity and 3350mm lift height to meet diverse loading and unloading demands. Supports rapid attachment changes for versatile task switching. Its durable construction and user-friendly operation combine off-road capability with precision handling, making it suitable for multiple working environments.

Advantages

Core Advantages of Telescopic Arms

The telescopic arm offers flexible adjustment of length and height, combined with a maximum lifting height of 3350mm, enabling precise control over loading and unloading positions to minimise material wastage and subsequent sorting work. With a main arm load capacity of 800kg and a secondary arm capacity of 600kg, paired with a 0.3m³ bucket, it effortlessly handles bulk material handling, light excavation, and elevated work requirements.

Flexible and Mobile

Compact chassis dimensions (3380 × 1240 × 2250 mm), 2600 mm turning radius + fully hydraulic steering enable effortless manoeuvring through confined spaces such as construction site corners, warehouses and orchards. Four-wheel drive combined with 190 mm minimum ground clearance and 30% gradient climbing capability ensures stable operation even on challenging terrain, eliminating operational blind spots.

Strong Power

Equipped with engines from renowned brands such as RATO and Honda, delivering a rated power of 18.2kW (23 horsepower), and paired with a 25MPa high-pressure hydraulic system, it offers stable power output and rapid operational response. Core components utilise domestically renowned hydraulic pumps and valves, featuring a durable structural design capable of withstanding high loads and complex working environments, resulting in low failure rates.

Multi-functional Adaptation

Supports quick replacement of various attachments such as grabs, hooks, and breakers, and can switch between multiple operation modes including loading, crushing, lifting, and cleaning, meeting cross-field demands.
The whole machine is easy to maintain, equipped with a one-year warranty, and its multi-functional attributes reduce the idle rate of the equipment. The comprehensive usage cost is more advantageous, taking into account both practicality and economy.
