HTS25 Hydraulic Control Crawler Skid Steer Loader

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HTS25

Inquire Now

Product Description

Parameters

Product Features

Advantages

Product Description

HTS25 mini skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering, enabling agile manoeuvring in confined spaces and complex terrains. Its compact design ensures operations in narrow alleys, urban construction sites, and indoor projects without sacrificing performance.

Equipped with a high-performance engine and advanced hydraulic system, the HTS25 delivers stable power output, smooth operation, and precise control across diverse engineering tasks. Its multifunctional capability allows rapid attachment changes for buckets, breakers, sweepers, and other tools, covering excavation, loading, demolition, material handling, and landscaping operations.

The all-wheel drive system combined with slip steering ensures exceptional traction and mobility on muddy, uneven, or slippery surfaces, while the dedicated chassis and wheel train design provide durability, reliability, and long service life. Ergonomically designed operator controls and safety features improve efficiency and minimize fatigue during prolonged work hours, making the HTS25 a practical and versatile solution for municipal works, small-scale construction, agriculture, and landscaping projects.

Parameters

Model	HTS25
Operating load	380 kg
Overall operating height	3400 mm
Rated flux	50 L/min
Height to top of cab	1813mm
Tire(track)model	6.5-10
Dumping height	2000mm
Rated power	Kubota 25hp/2800rpm
Bucket width	920 mm
Fuel tank capacity	28L
Dumping reach	441mm
Machine Weight	1300 kg
Tread width	785mm
Bucket capacity	0.2 m3

Product Features

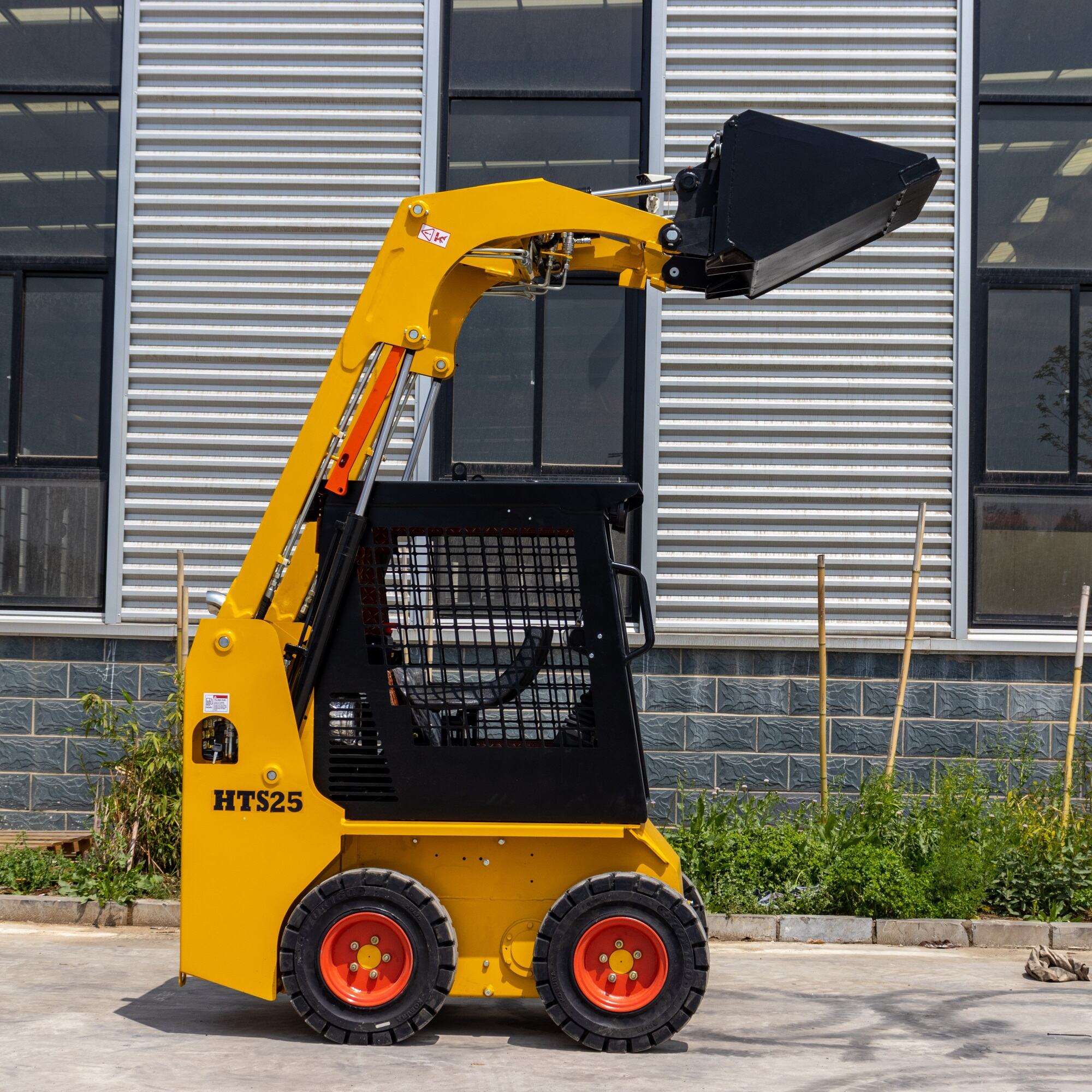

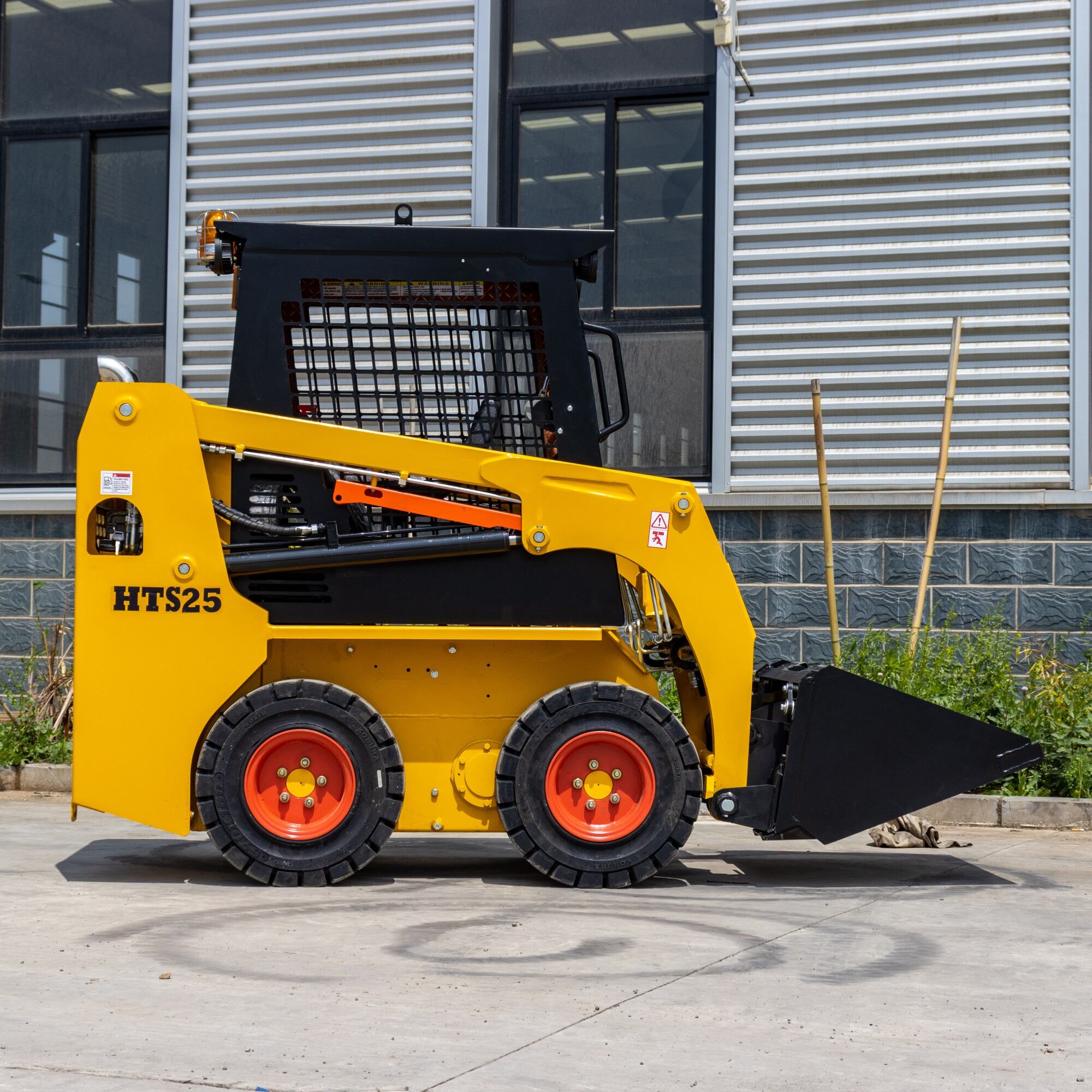

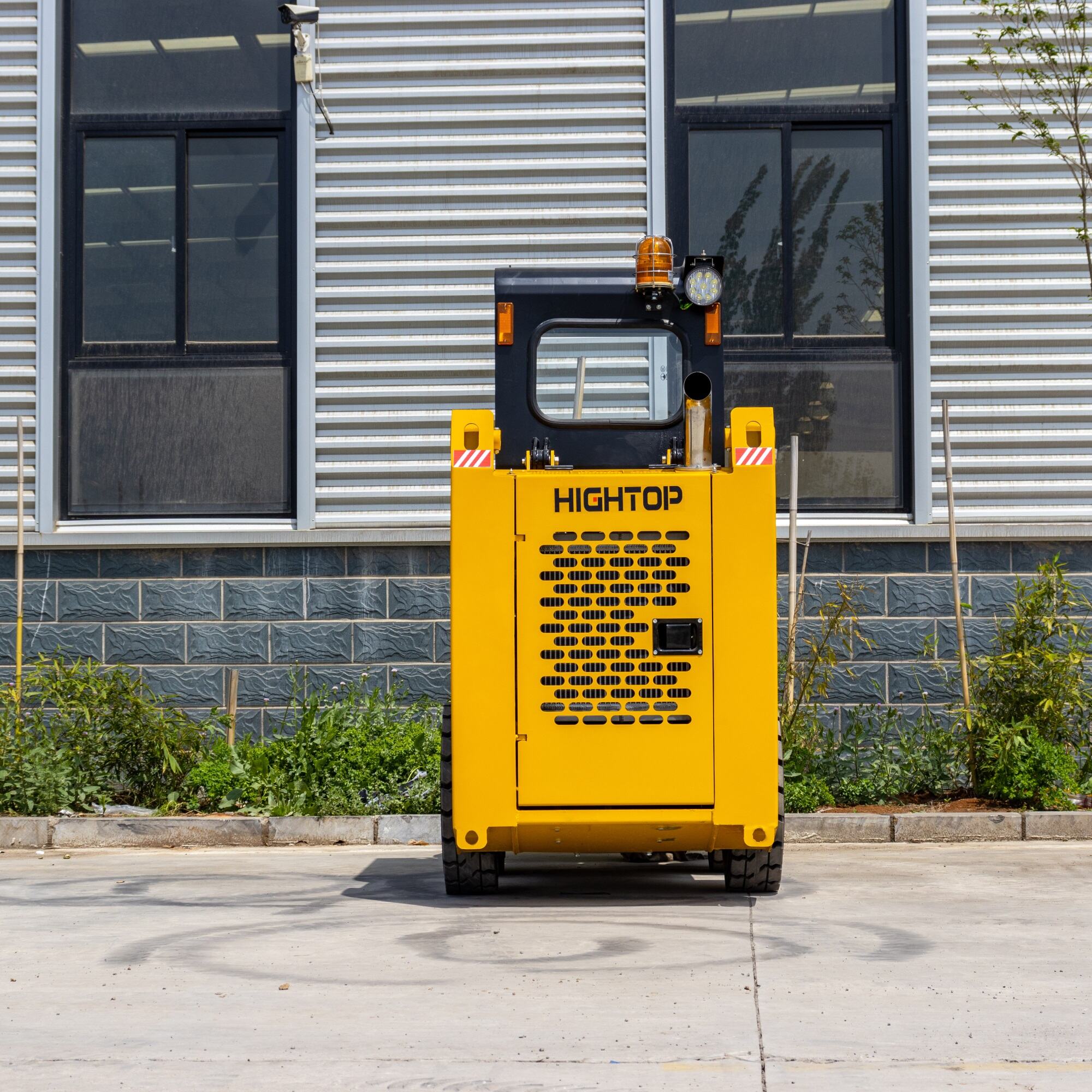

HTS25 Skid Steer Loader

Advantages

Power Drive System.Famous Brand Engine

The engine is imported from the international famous brand with strong power and environmental protection, complying with EPA Tier 4/Euro Stage V, configured with independent intelligent radiation and maintenance-free chain wheel case.

Compact Excellent Passability

The compact design of this series, the width of the main machine is quite small in all the skid steer products, with good passability, can meet the requirements of special scene operation.

Luffing Arm.Higher Load Capacity

Self-innovative vertical elevating mechanism with strong power and general fast-changing device.The adoption of the variable width working arm ensures that a higher load carrying capacity is realized with a smaller width.

Electrical System

Electro-hydraulic control, multi-mode switching (ISO/H), speed management (climbing), handle sensi tivity control, bi-directional leveling of moving arm, electrical interlocking security (interlocking surpass, parking brake).
