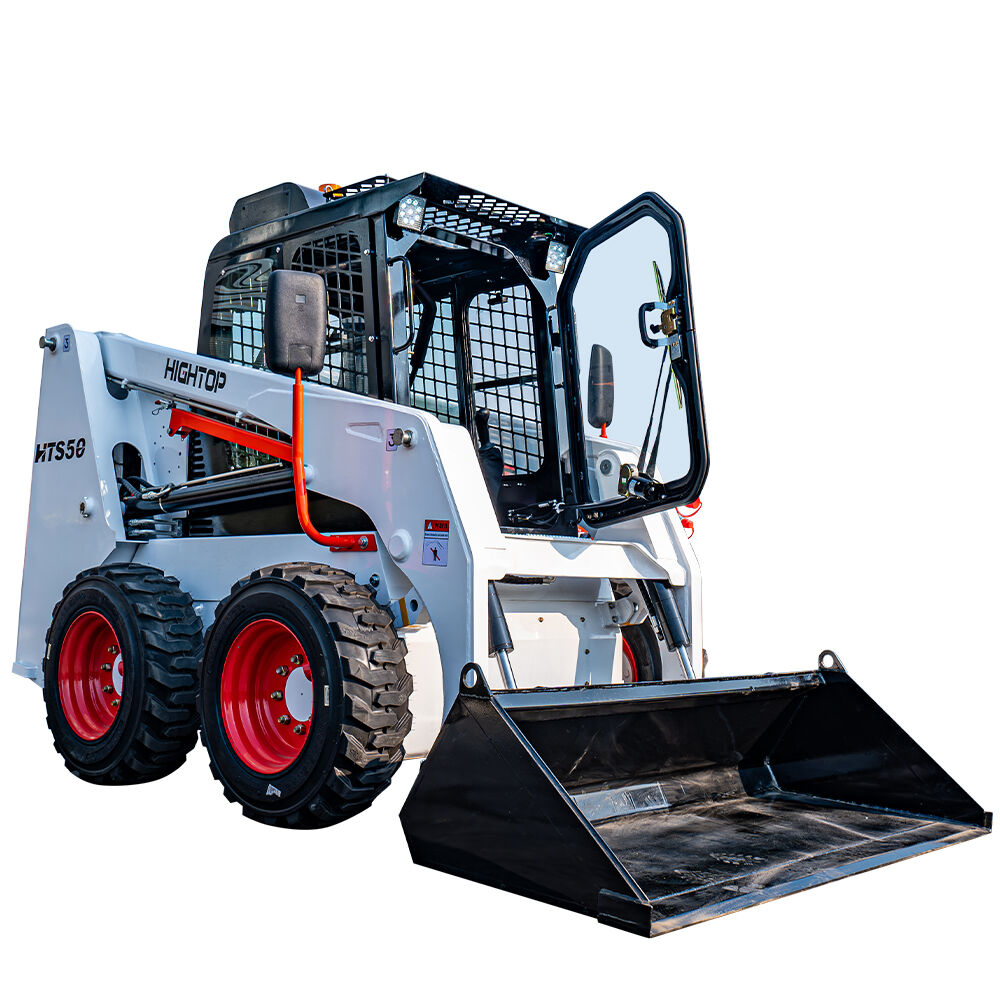

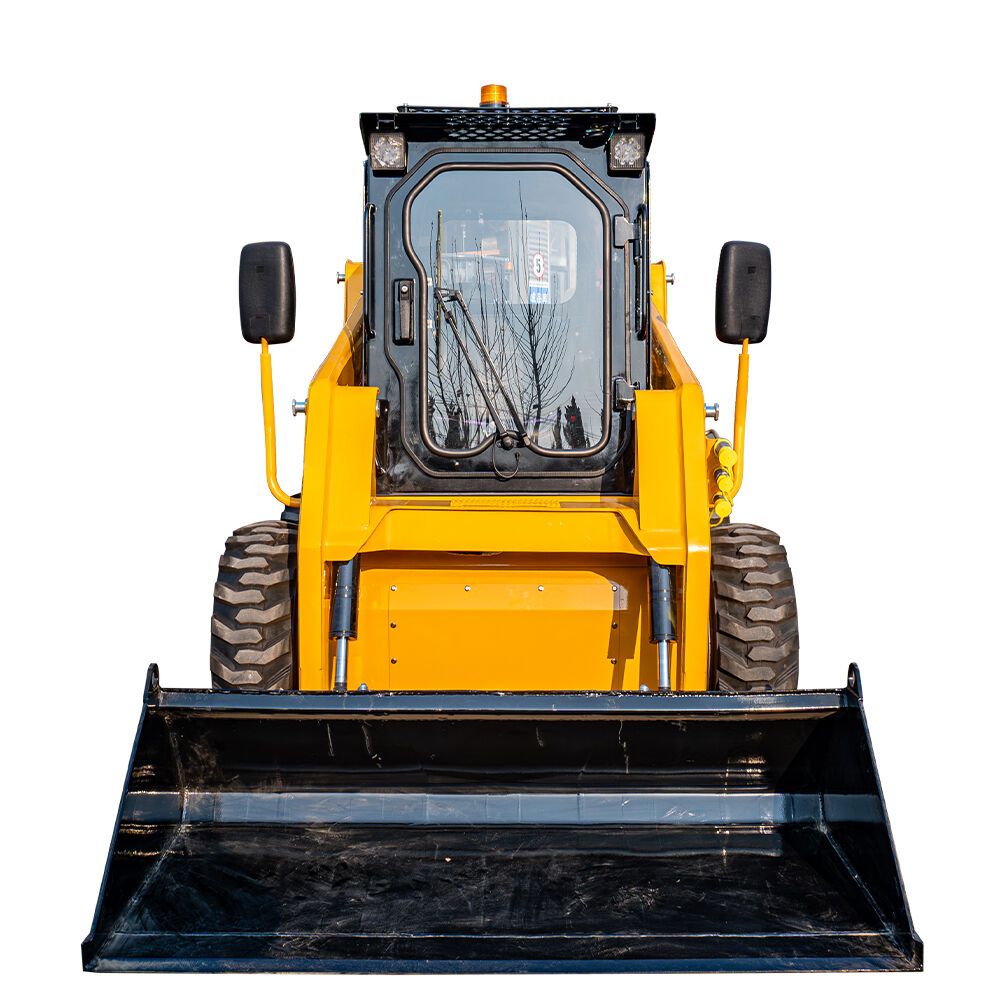

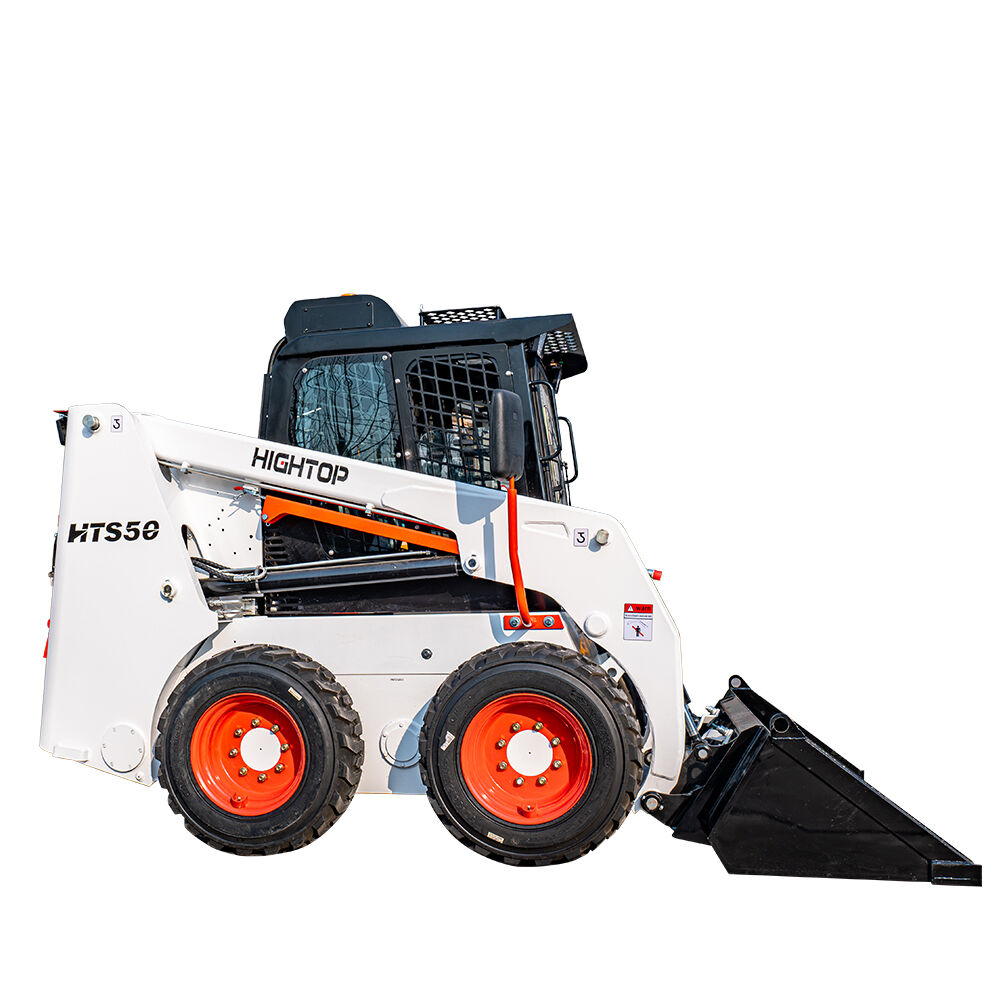

HTS50 Mini Skid Steer Loader With Low Price

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HTS50

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

The HTS50 tracked skid steer loader weighs 3200kg, featuring a 36kW engine from a renowned brand and a premium hydraulic system, delivering stable and efficient power for demanding work conditions. With a 700kg load capacity and a 0.3m³ bucket, it is suited for heavy-duty applications including material handling, site preparation, excavation, and debris removal. Its versatile tracked design ensures superior traction and stability across uneven, muddy, or rugged terrain, while the quick-change interface allows seamless swapping of multiple attachments, such as breakers, augers, grapples, and buckets, to support a wide range of tasks. The compact yet robust chassis meets multiple international certifications, providing reliability and safety for operators. Designed for adaptability, the HTS50 excels in various operational environments including construction sites, municipal maintenance, landscaping, and agricultural projects, combining efficiency, durability, and multi-functional capability in a single engineering machine.

Video

Applications

The HTS50 tracked skid steer loader, renowned for its heavy-duty capability, agile manoeuvrability, and compatibility with multiple attachments, finds extensive application across construction, municipal works, mining operations, and agricultural cultivation. Designed to combine power, efficiency, and adaptability, it is a reliable solution for modern engineering and industrial projects requiring compact yet robust machinery. Equipped with a bucket, it efficiently handles heavy materials such as aggregates, sand, gravel, and building supplies; fitted with a breaker, it shatters concrete, rock, and other hard surfaces with ease, while attachments like sweepers, trenchers, and augers enable comprehensive site clearance, trench excavation, and backfilling tasks. Its tracked undercarriage ensures exceptional stability and traction on uneven, muddy, or rugged terrain, making it highly effective in mining zones and farmland operations, where conventional wheeled loaders may struggle. The compact chassis allows it to navigate confined construction sites, urban streets, and tight industrial areas with precision and minimal disruption, while the skid-steer design ensures smooth, responsive manoeuvring even in restricted spaces. Additionally, the HTS50 serves as an indispensable auxiliary machine for large-scale projects, supporting logistical operations, material transport, and final construction stages, thereby significantly enhancing overall project efficiency. Its quick-change interface and compatibility with a wide range of attachments allow operators to seamlessly switch between excavation, demolition, lifting, clearing, and landscaping tasks, maximizing machine versatility. With its durable construction, high-strength steel components, and premium hydraulic system, the HTS50 maintains reliable performance in prolonged heavy-duty operation, reducing downtime and maintenance requirements. Ideal for contractors, municipalities, and agricultural enterprises, this multi-functional skid steer loader delivers superior productivity across diverse scenarios, effectively combining agility, strength, and operational flexibility in one compact, high-performance machine.

Parameters

Max.Operation height	4058mm
Height of the bucket hinge pin	3077mm
Height to Cabin top	2007mm
Max.horizontal height of the bucket bottom	2908mm
Length without bucket	2700mm
Length with bucket	3413mm
Max. unloading height	2303mm
Unloading distance	675mm
Wheelbase	999mm
Departure angle	23°
Ground clearance	185mm
Rear turning radius	1627mm
Machine width	1469mm
Width of the tire edge	1740mm
Width of the bucket edge	1780mm
Bucket capacity	0.35m³
Diesel fuel tank capacity	88L
Hydraulic fuel tank capacity	70L
Rated working capacity	750kg
Overturning working capacity	1500kg
Operation weight	3003kg
Max. working speed	12km/h
Standard Engine	Xinchai490
Power	36.8KW/2500rpm
Operation Method	Mechanical/ Hydraulic control

Features

The HTS50 is a tracked skid steer loader designed for heavy-duty operations and multi-scenario adaptability. With an operating weight of approximately 3200kg, with dimensions of 2950×1402×2050mm. It is equipped with a 36kW (50hp) diesel engine from renowned brands such as Kubota or Yanmar, paired with a high-efficiency hydraulic system from Rexroth or Eaton (60L/min rated flow). delivering robust and stable power output. With a rated load capacity of 700kg and a bucket volume of 0.3m³, it effortlessly handles demanding tasks such as aggregate handling and concrete demolition. Fitted with 300×52.5 specification tracks and 140mm ground clearance, it boasts low ground pressure and excellent manoeuvrability, enabling stable operation on rugged, muddy terrain. Its compact chassis and agile steering design also suit confined construction spaces, facilitating easier relocation and transport.

Advantages

Strong power

Equipped with a 36kW (50 horsepower) diesel engine from renowned brands such as Kubota and Yanmar, and paired with high-quality hydraulic systems from Rexroth or Eaton, it achieves precise power transmission at a rated flow rate of 60L/min. With a rated load of 700kg and a bucket capacity of 0.3m³, it can easily handle harsh working conditions such as sand and gravel transportation and concrete crushing, and maintain stable output even during high-intensity continuous operations.

All-terrain adaptation

Featuring 300×52.5 specification tracks, this design offers a large ground contact area and low ground pressure ratio. Combined with 140mm ground clearance, it ensures stable operation across complex terrains such as rugged mountainous areas and muddy sites while minimising ground disturbance. Its compact dimensions of 2950×1402×2050mm and tight turning radius enable agile manoeuvring within confined worksites, indoor warehouses and other restricted spaces, while also facilitating more convenient relocation and transport.

One machine with multiple uses

Equipped with an internationally standardised quick-change interface, enabling swift switching between attachments such as breakers, sweepers, and trenchers to perform diverse operations including loading, demolition, and trench excavation. With a bucket pivot height of 2770mm and an unloading height of 2100mm, it caters to multiple sectors including construction, municipal works, mining support, and agricultural planting, significantly enhancing equipment utilisation.

Effortless and dependable operation

Featuring a pure joystick control system that aligns with excavator operating logic, eliminating the need for foot controls and enabling rapid familiarisation even for novices. The open cab ensures unobstructed visibility and operational safety. The machine holds multiple authoritative certifications including TUV, ISO, and CE. Core components are logically arranged for straightforward maintenance, backed by a one-year warranty. It also complies with cross-border export regulations, offering long-term peace of mind.
