Auger Hightop Mini Excavator Accessories

Auger Hightop Mini Excavator Accessories

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Inquire Now

Product Description

Applications

Parameters

Features

Advantages

Product Description

The Auger Hightop mini excavator accessory is a versatile and high-performance attachment designed to enhance the drilling capabilities of Hightop mini excavators. As a core accessory, it provides precise, efficient, and reliable drilling for a wide range of applications, significantly expanding the operational versatility of mini excavators.

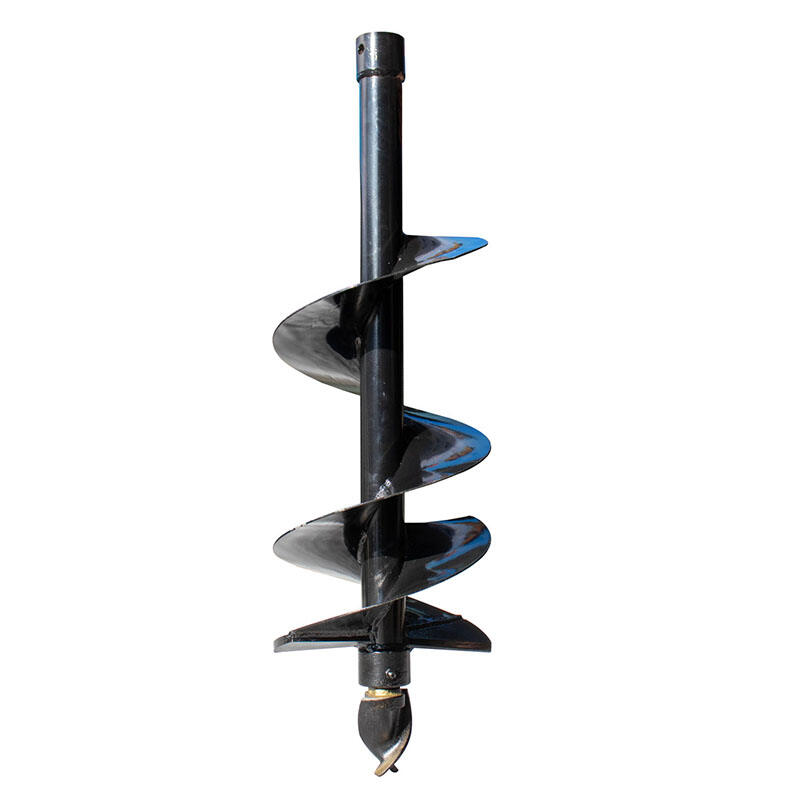

The spiral drill, available in multiple specifications, includes three different drilling diameter models: 200mm, 300mm, and 400mm. Each model is engineered with carefully calibrated flow and pressure parameters to ensure stable and continuous drilling operations. The uniform flow rate of 53 LPM and a stable pressure range of 124–138 bar deliver reliable power, allowing operators to maintain consistent performance even under demanding working conditions.

Different drilling diameters correspond to varying speeds and depths. The 200mm and 300mm augers can achieve a drilling depth of up to 1000mm, whereas the 400mm auger reaches a depth of 800mm. Rotational speeds vary according to the drill diameter, with 200mm specifications rotating at 329 RPM, 300mm at 266 RPM, and 400mm at 213 RPM. The design ensures the optimal balance of speed and depth for each diameter, enabling operators to select the best auger for specific project requirements.

In terms of weight, the 200mm, 300mm, and 400mm models weigh 46.4kg, 48.8kg, and 52kg respectively. These weights are carefully managed to maintain operational flexibility while ensuring stability during drilling. This allows Hightop mini excavators to maintain precise control and efficient handling across diverse drilling tasks, whether in construction, municipal works, agriculture, or landscaping projects.

Applications

Construction Engineering
In construction applications, the Auger Hightop mini excavator accessory excels at drilling holes for building foundations. It is particularly effective for small building pile foundations, allowing precise preparation for subsequent pile foundation construction. Beyond structural foundations, it can perform exploration drilling to assess underground geological conditions, providing valuable data to ensure safe and efficient project planning.

Municipal Engineering
For municipal engineering projects, this auger is an ideal solution for drilling and burying pipelines, cables, and other underground utilities. In road construction, it facilitates accurate drilling operations for roadbed preparations and the installation of road sign posts or barriers. Its precise depth control and reliable performance make it a dependable tool for complex urban construction projects where space and accuracy are critical.

Agricultural Applications
The Auger Hightop mini excavator accessory is highly suitable for agricultural water conservancy construction, such as drilling water wells in farmland or orchards. It can also be used for planting operations, facilitating the installation of seedlings or saplings with minimal disturbance to surrounding soil. Its efficient soil removal and controlled drilling depth make it ideal for repetitive tasks in agricultural environments.

Landscaping and Green Spaces
In landscaping projects, the spiral drill is perfect for basic drilling tasks such as installing landscape lamp posts, sculptures, or decorative stone bases. Its ability to efficiently remove soil while drilling ensures smooth operation and high-quality installation. The auger is especially useful in parks, gardens, golf courses, and other outdoor areas where precision and minimal environmental disruption are required.

Parameters

Specifications	Traffic	Pressure	Drill Diameter	Depth	Speed	Weight
200	53LPM	124-138bar	200mm	1000mm	329RPM	46.4kg
300	53LPM	124-138bar	300mm	1000mm	166RPM	48.8kg
400	53LPM	124-138bar	400mm	800mm	213RPM	52kg

Features

Excellent Material

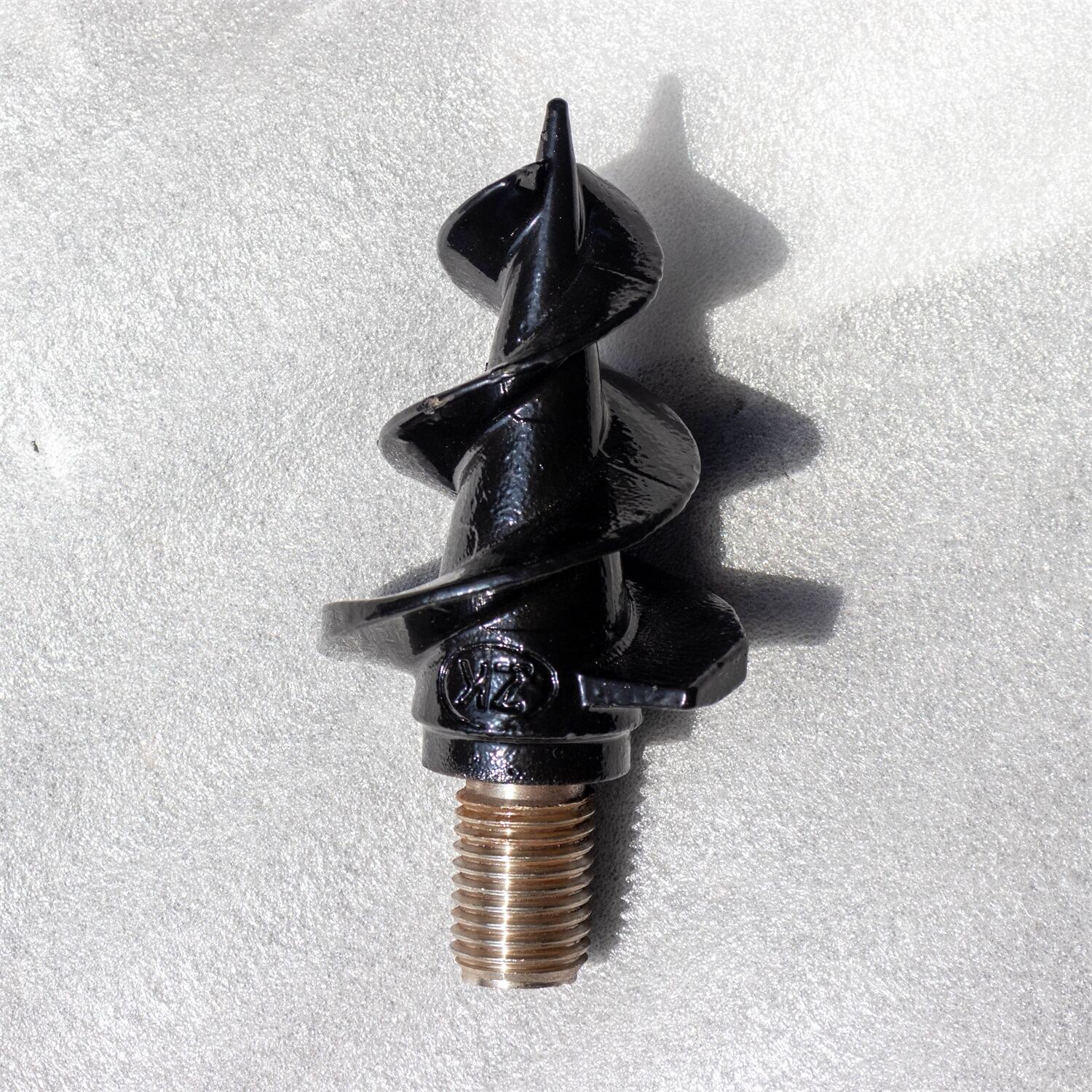

The auger’s core drill rod and drill bit are manufactured from high-strength alloy steel, providing exceptional wear resistance and torsional strength. This ensures that the attachment can withstand complex drilling conditions, including rocks, hard soils, and uneven terrain. The robust material construction extends the service life of the auger, reducing maintenance requirements and operational costs.

Structural Optimization
The spiral blade adopts an equidistant spiral design that maximizes soil discharge efficiency. During drilling, soil is rapidly expelled from the hole, preventing accumulation that could impede progress or reduce drilling quality. This optimized design ensures clean, accurate holes, allowing operators to maintain productivity and achieve precise results with minimal effort.

Strong Compatibility
The Auger Hightop mini excavator accessory features standardized quick-change interfaces, enabling fast and secure attachment to Hightop excavators without large-scale modifications. This design saves time during setup and reduces operational downtime, allowing operators to seamlessly switch between drilling and other tasks. Its compatibility with multiple mini excavator models ensures flexibility across different projects and operational requirements.

Adjustable Drilling Parameters
Operators can select the optimal drilling diameter and depth according to project needs, providing unmatched versatility. With the 200mm, 300mm, and 400mm options, the auger adapts to small-scale urban projects, medium agricultural operations, and larger construction tasks. The variable rotational speeds balance efficiency with precision, ensuring high-quality drilling across all applications.

Advantages

Various specifications

Multiple drilling diameter specifications can meet the drilling needs under different working conditions, and can be flexibly selected according to the actual aperture requirements of the operation.

Power stability

Unified and stable flow and pressure parameters ensure stable power output of the spiral drill during operation, and guarantee drilling efficiency and quality.

Efficient homework

Different specifications correspond to reasonable rotational speeds and drilling depths, which can efficiently complete drilling tasks and improve construction progress while ensuring drilling quality.

Flexible operation

Reasonable weight design ensures that the excavator can maintain good flexibility even when equipped with this accessory, and can operate in different terrains and narrow spaces.
