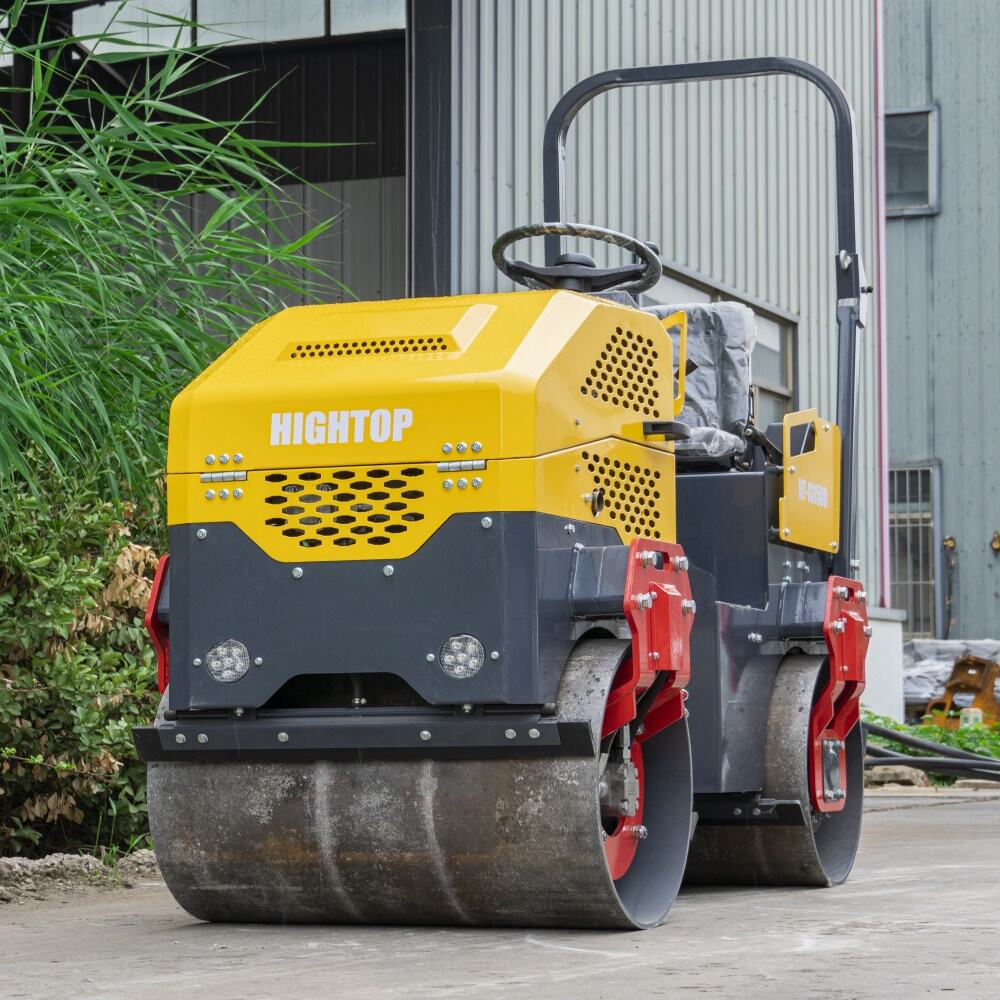

HT-JS1500 1.5-ton Full Hydraulic Dual-Drive Road Roller

HT-JS1500 1.5-ton Full Hydraulic Dual-Drive Road Roller

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT-JS1500

Inquire Now

Product Description

Applications

Parameters

Features

Advantages

Product Description

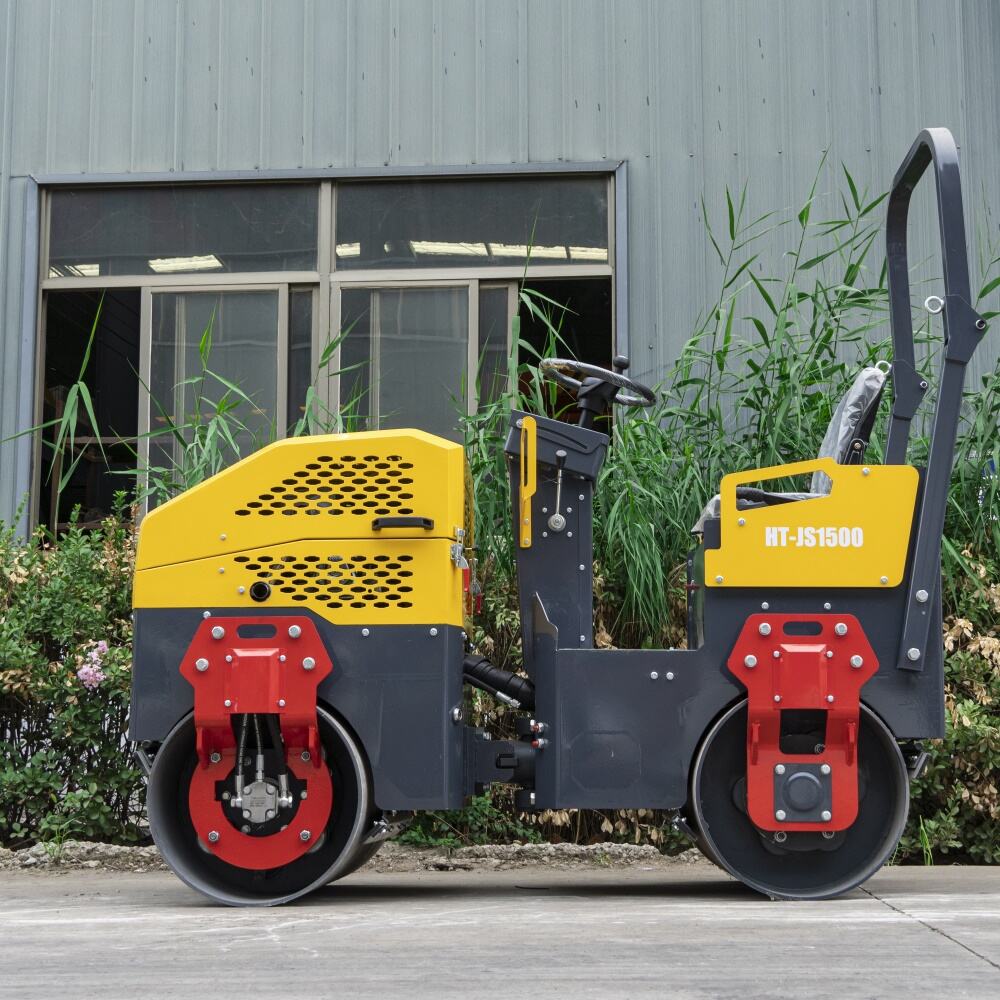

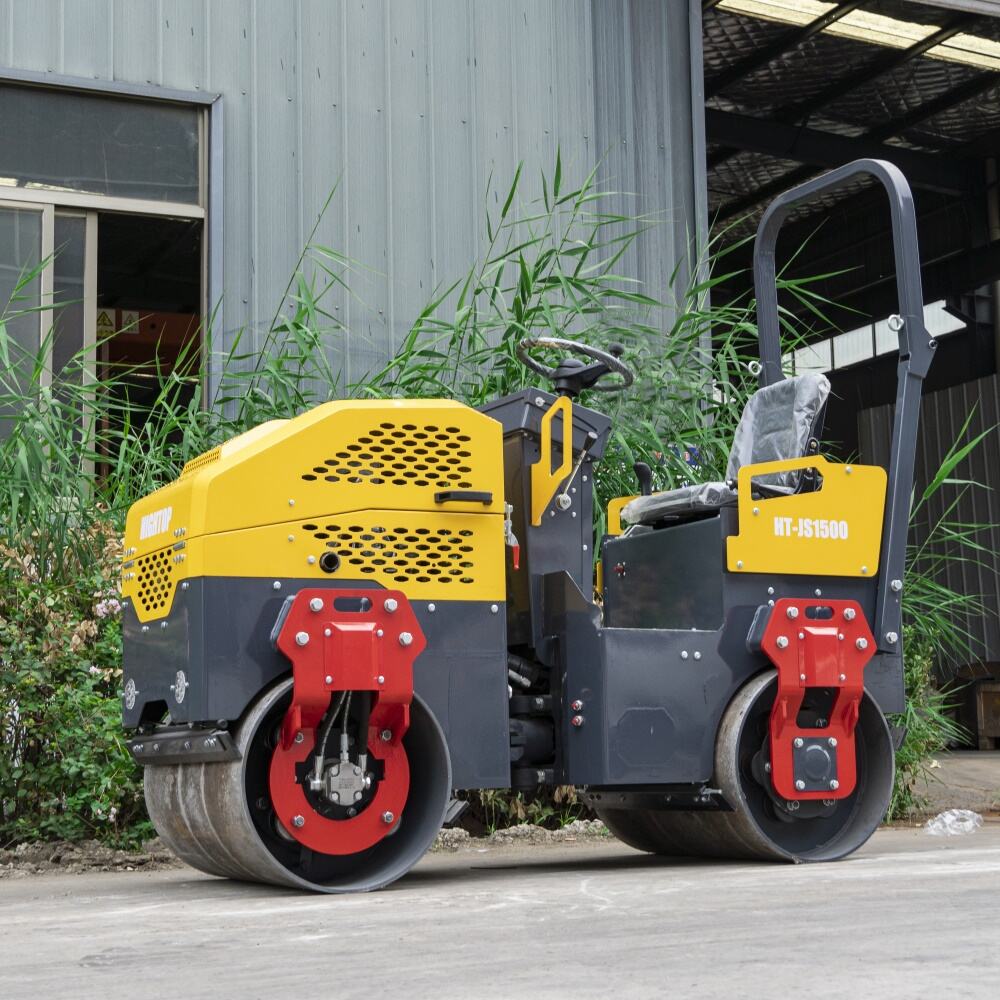

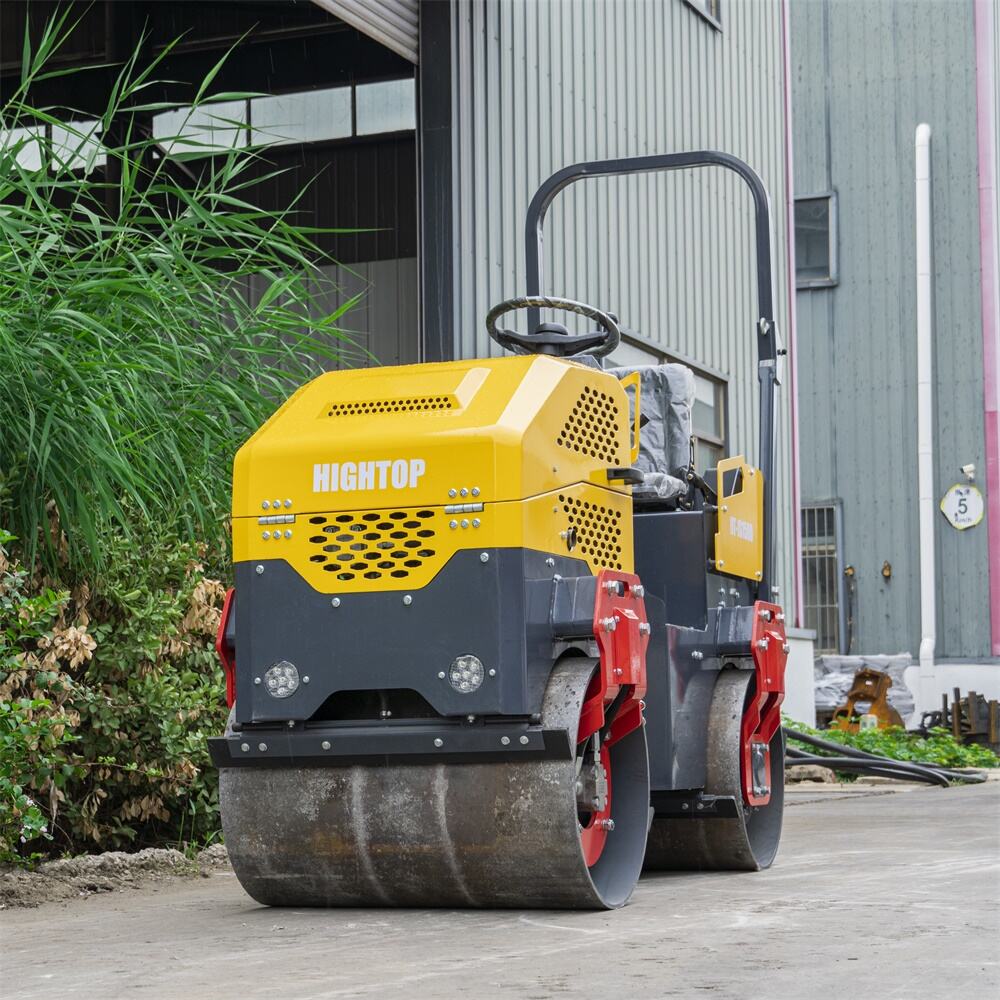

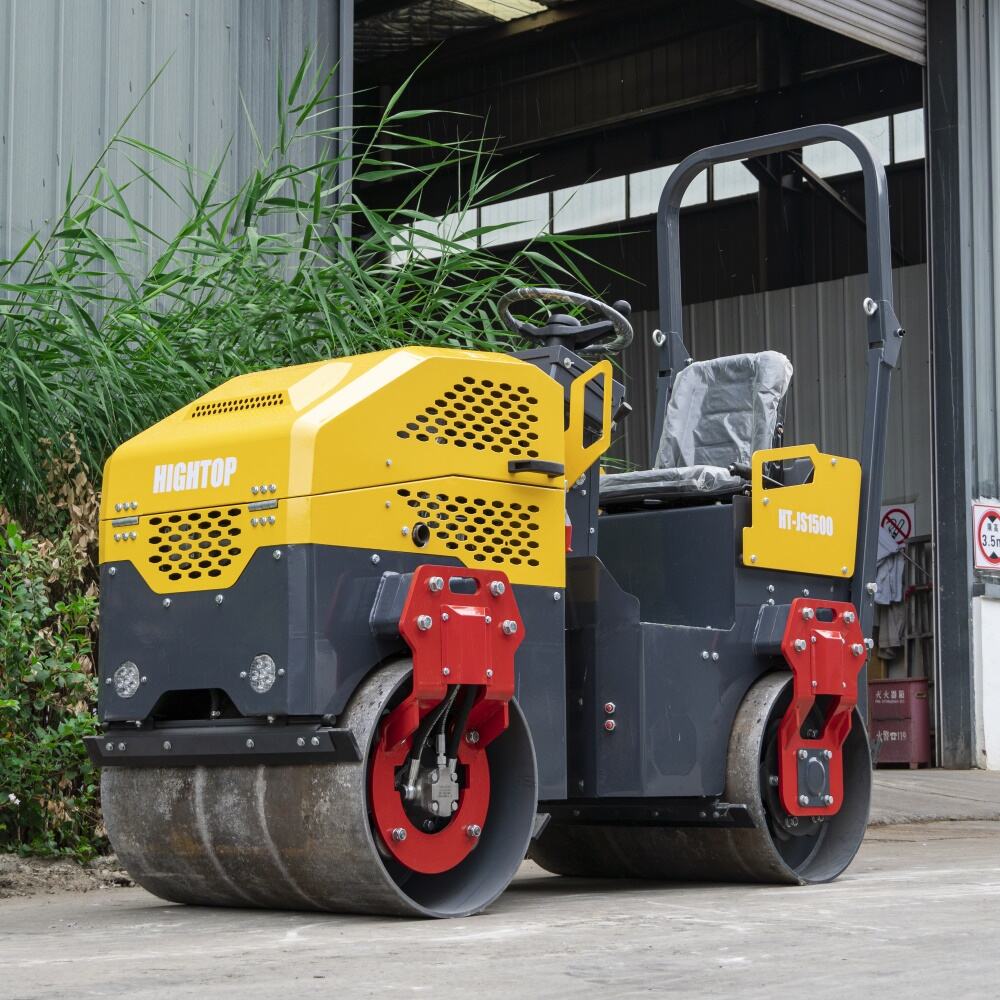

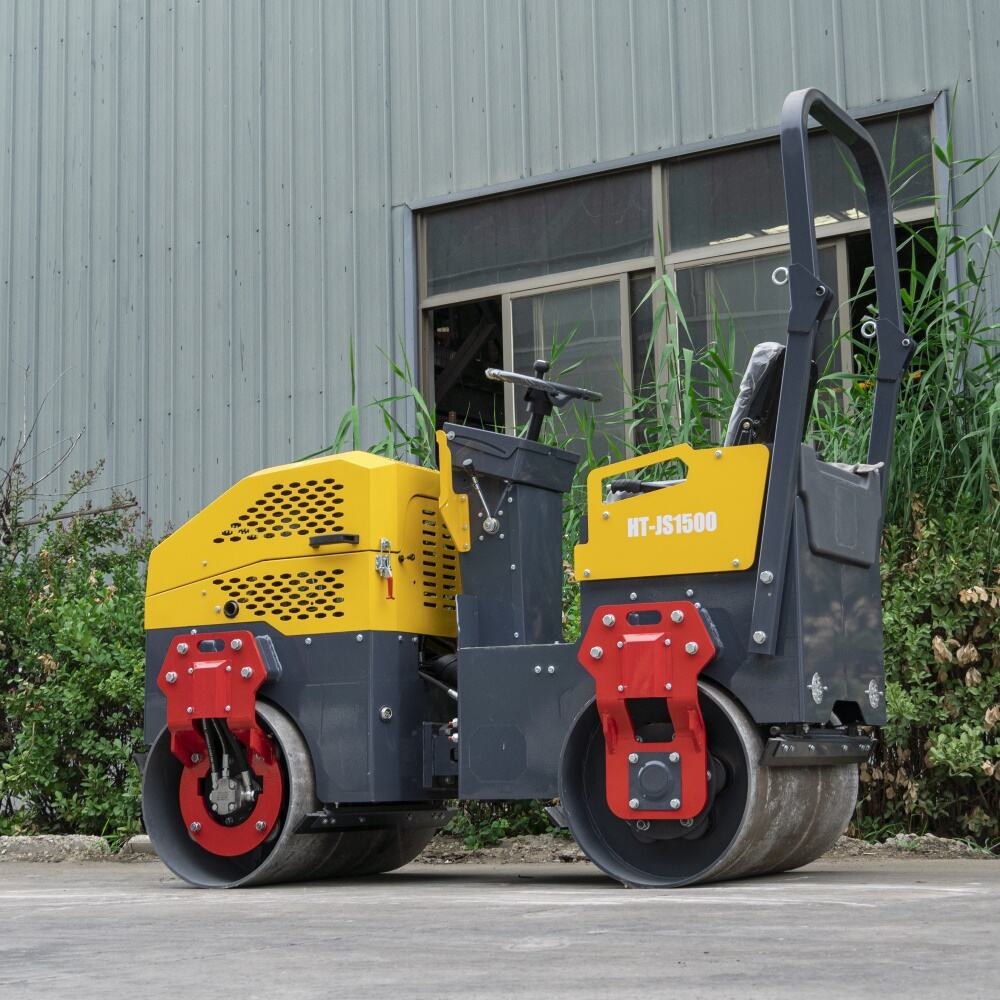

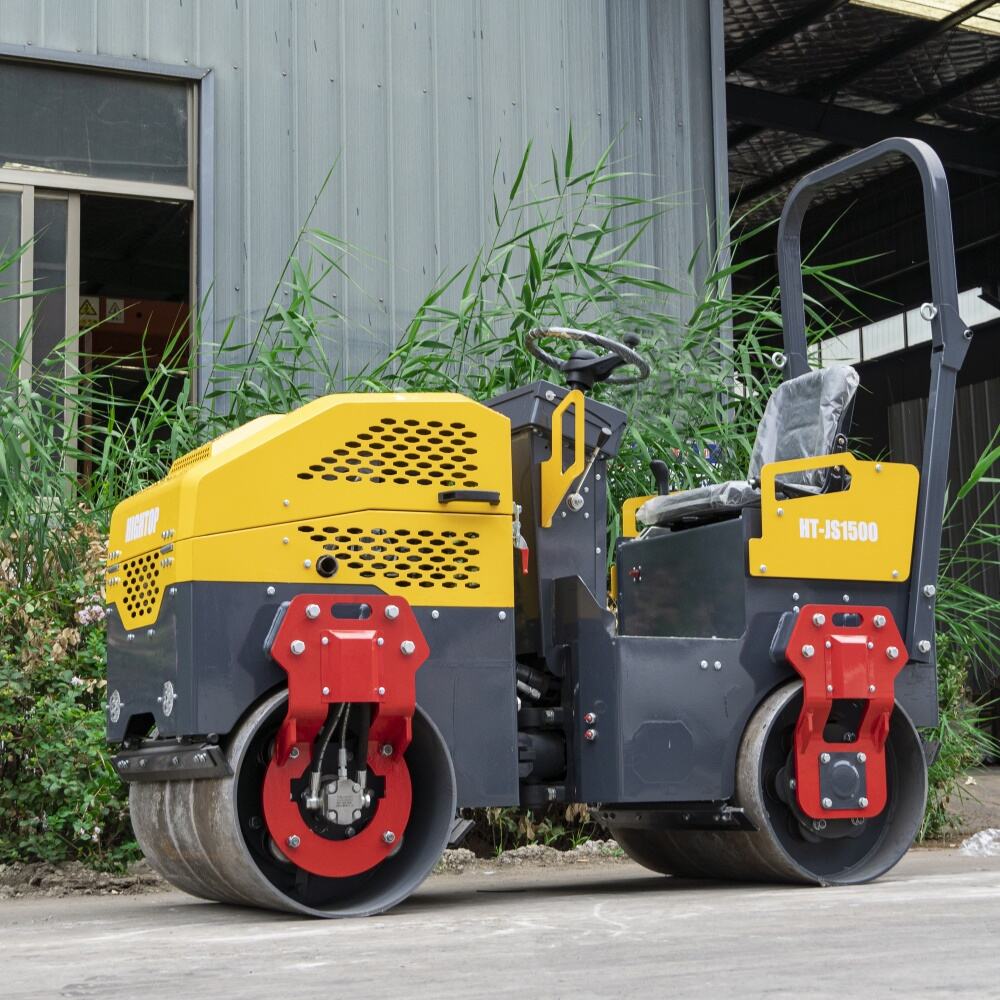

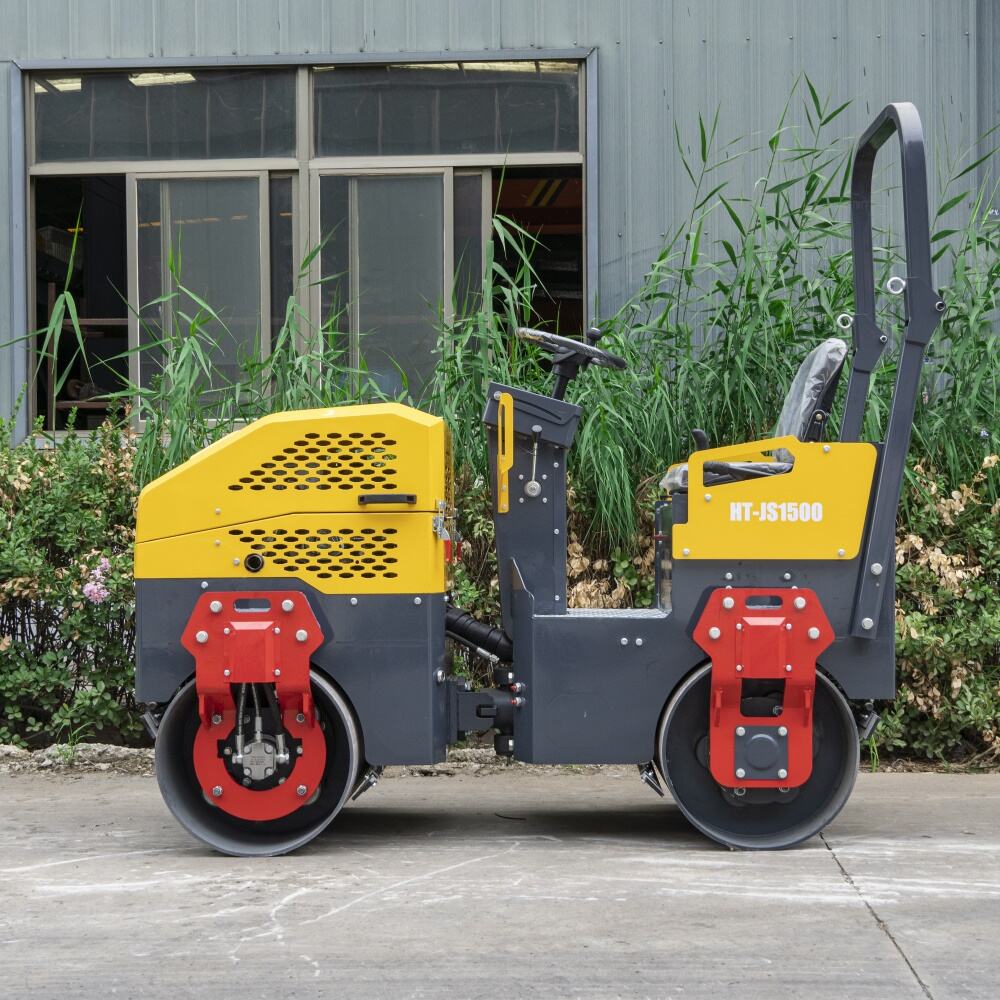

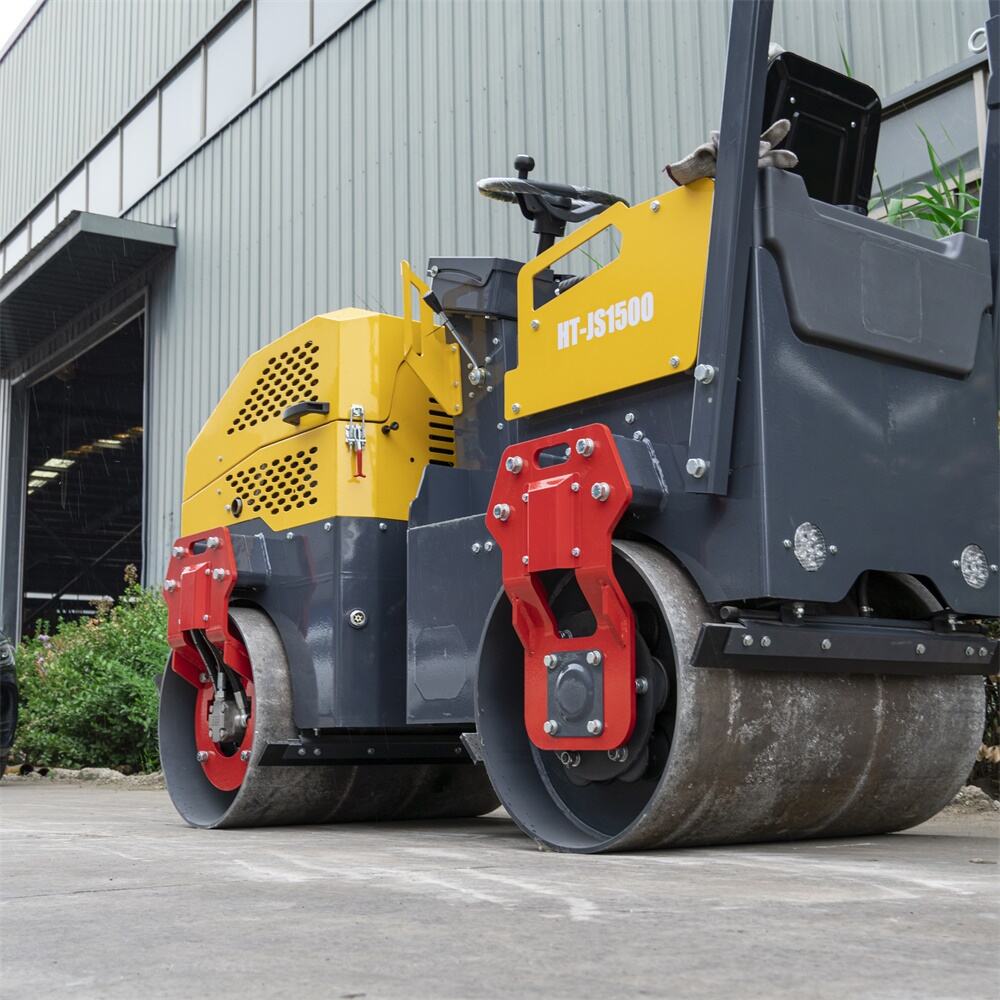

The Hightop HT-JS1500 is a 1.5-tonne ride-on double-drum roller specifically engineered for efficient compaction in confined spaces. Powered by premium domestic diesel engines such as Changchai, its robust 13HP output is paired with an optimised powertrain that balances power delivery with fuel efficiency. A fully hydraulic drive system, comprising an international-brand variable displacement piston pump and a cycloidal hydraulic motor, enables dual-wheel drive and agile steering. Its minimal turning radius accommodates complex working environments such as corners and trenches. The unit incorporates a front-wheel hydraulic vibration system, combining 30kN of robust excitation force with 75Hz high-frequency vibration. Paired with specially heat-treated high-strength alloy steel drums, it delivers exceptional compaction uniformity and outstanding wear resistance. This enables efficient compaction of diverse materials including soil, asphalt, and aggregate, achieving industry-leading compaction standards. The compact design, measuring 2200×920×1550mm with a weight of 1380kg, facilitates access to confined spaces like factory buildings and residential pathways. A 30% gradient capability and 0-8km/h travel speed accommodate mildly sloped terrain. Practical features include one-touch electric start, an electronically controlled water spray system (with automatic scraper cleaning to prevent material adhesion), and dual front/rear LED work lights. An 80-litre water tank extends continuous operation time, while an adjustable comfort seat and standardised, intuitive controls reduce operator fatigue. Modular construction facilitates future maintenance. Widely applicable for municipal road repairs, residential construction, bridge/culvert backfilling, sports ground surfacing, and diverse construction scenarios.

Applications

Municipal Engineering and Road Maintenance:
Suitable for compacting asphalt/concrete surfaces on urban side roads, pavements, and cycle lanes, with efficient operation in hard-to-reach areas such as corners and manhole edges where large equipment struggles to access.
Meets municipal requirements for backfilling utility trenches and compacting around manhole covers, effectively preventing subsequent road settlement and cracking to ensure stable traffic flow.
Suitable for road resurfacing and localised repair works, its 70Hz high-frequency vibration rapidly achieves material compaction, enhancing maintenance efficiency.

Building and Community Development:
For residential estate roads, car parks, and landscaped walkways, it can perform layered compaction of gravel sub-base, water-stabilised base, and surface courses, suitable for operation within narrow internal access routes.
Suitable for backfilling building foundations, compacting perimeter wall trenches, and performing compaction work on rooftop gardens and sunken courtyards within commercial complexes, with minimal impact on surrounding existing structures.
Complements large rollers to achieve precise compaction of ancillary property facilities (such as green belt paths and fire access routes), ensuring stable foundations.

Specialised Sites and Minor Infrastructure:
Suitable for compaction work on sports facilities (synthetic running tracks, football pitch turf foundations) and golf course cart paths, delivering high compaction uniformity to ensure surface flatness.

Parameters

Model	HT-JS1500
Speed	0 - 8km/h
Turning radius	2100mm
Climbing Ability	30%
Before/after static line load	83/72N/cm
Nominal amplitude	0.5mm
Vibration frequency	75Hz
Excitation force	14Mpa
Swing speed	30kN
Drive form	Hydraulic dual-wheel drive
Vibration form	Hydraulic vibration ,Front wheel vibration
Steering form	Hydraulic steering
Sprinkling form	Electrically controlled pressure water spray
Model	Changchai 192FA
Type	Diesel engine, air-cooled 4-stroke
Power	11hp,3600rpm
Fuel tank capacity	5.5 L
Fuel consumption rate	300g/kw·h
Steel Wheel Width	800mm
Steel Wheel Diameter	200mm
Dimensions	530mm
Total Length	2200mm
Total Width	920mm
Total Height (Handle Upright)	1620mm
Packaging Dimensions	2300mmx1000mmx1650mm
Operating Weight	1380kg

Features

The Hightop HT-JS1500 roller delivers core advantages of ‘high efficiency, flexibility and durability’, combining robust performance with practical design: Equipped with a premium diesel engine and an internationally branded fully hydraulic system, it delivers stable power output with economical fuel consumption. Its 30kN vibratory force combined with 75Hz high-frequency vibration, paired with specially heat-treated high-strength alloy steel drums, achieves compaction uniformity and wear resistance far exceeding industry averages, rapidly attaining high-standard compaction results. Its compact and agile chassis features a minimum turning radius ideal for confined spaces. With 30% gradeability and travel speeds from 0-8km/h, it effortlessly handles complex terrains including corners, trenches, and slopes. Operational convenience is maximised through features like one-touch electric start, an electronically controlled water spray system (preventing roller material adhesion), and front/rear dual LED work lights. An 80-litre water tank extends continuous operation time, while an adjustable comfort seat reduces driver fatigue. Modular and reinforced chassis design facilitates easy removal and replacement of core components, minimising maintenance costs and downtime. The streamlined powder-coated body offers rust and corrosion resistance, delivering comprehensive adaptability for long-term operation across diverse scenarios.

Advantages

More robust and efficient compaction performance

With a high excitation force of 30 kN coupled with high-frequency vibration at 75 Hz, this machine significantly exceeds the conventional excitation force range of 20–50 kN typical for compact rollers. It delivers superior compaction depth and density, enabling rapid compaction of diverse materials including asphalt, gravel, and soil.

More flexible and comprehensive scene adaptation

The 1.5-ton compact chassis with its tight turning radius effortlessly navigates narrow spaces such as residential alleyways, factory interiors, and manhole edges, resolving the common issues of large equipment being unable to access confined areas or exert sufficient pressure.

Operation and maintenance are more hassle-free and convenient

One-touch electric start and hydraulic steering design ensure low operational barriers, enabling novices to master the controls swiftly. The standardised operating layout, complemented by an adjustable comfort seat, minimises fatigue during extended working hours.

Offers greater value for money and enhanced durability

Reinforced chassis with streamlined powder coating process, offering robust rust and corrosion resistance for sustained outdoor operation; Overall weight of 1380kg ensures compaction stability while facilitating transport and relocation, thereby reducing logistics costs.
