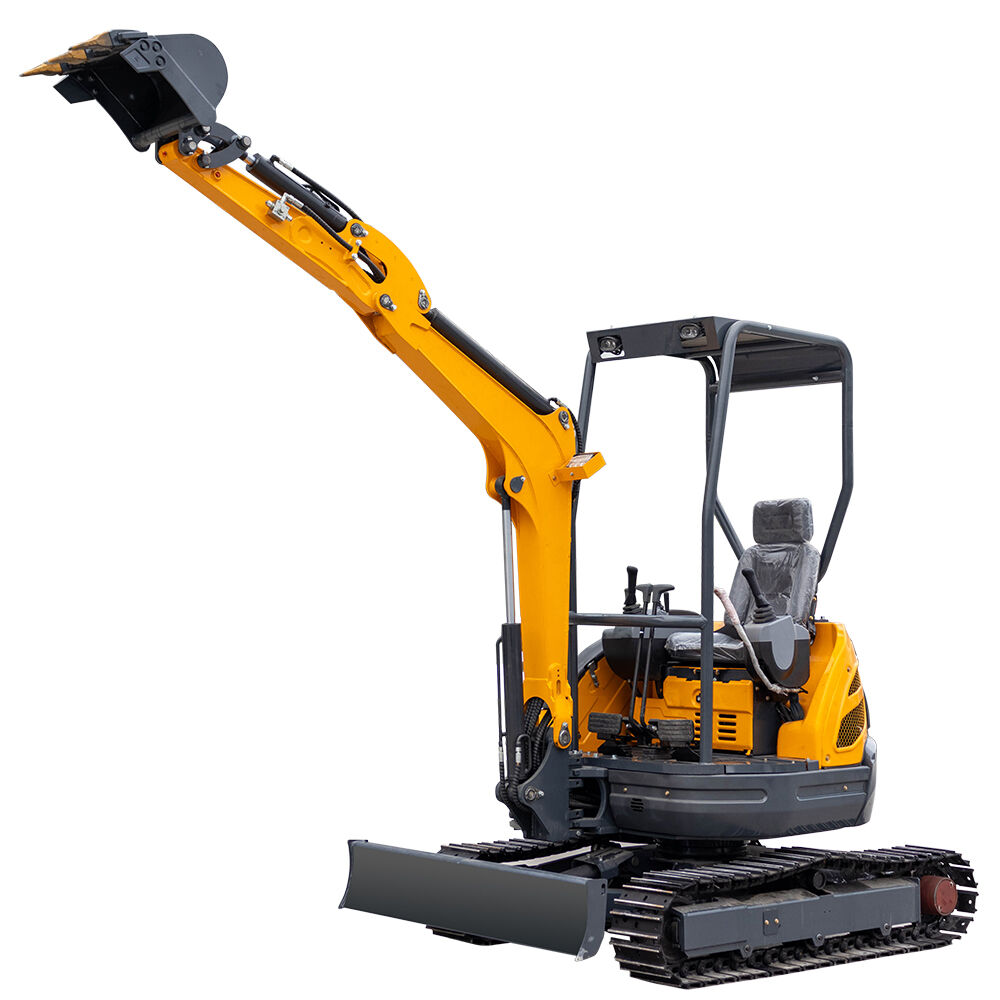

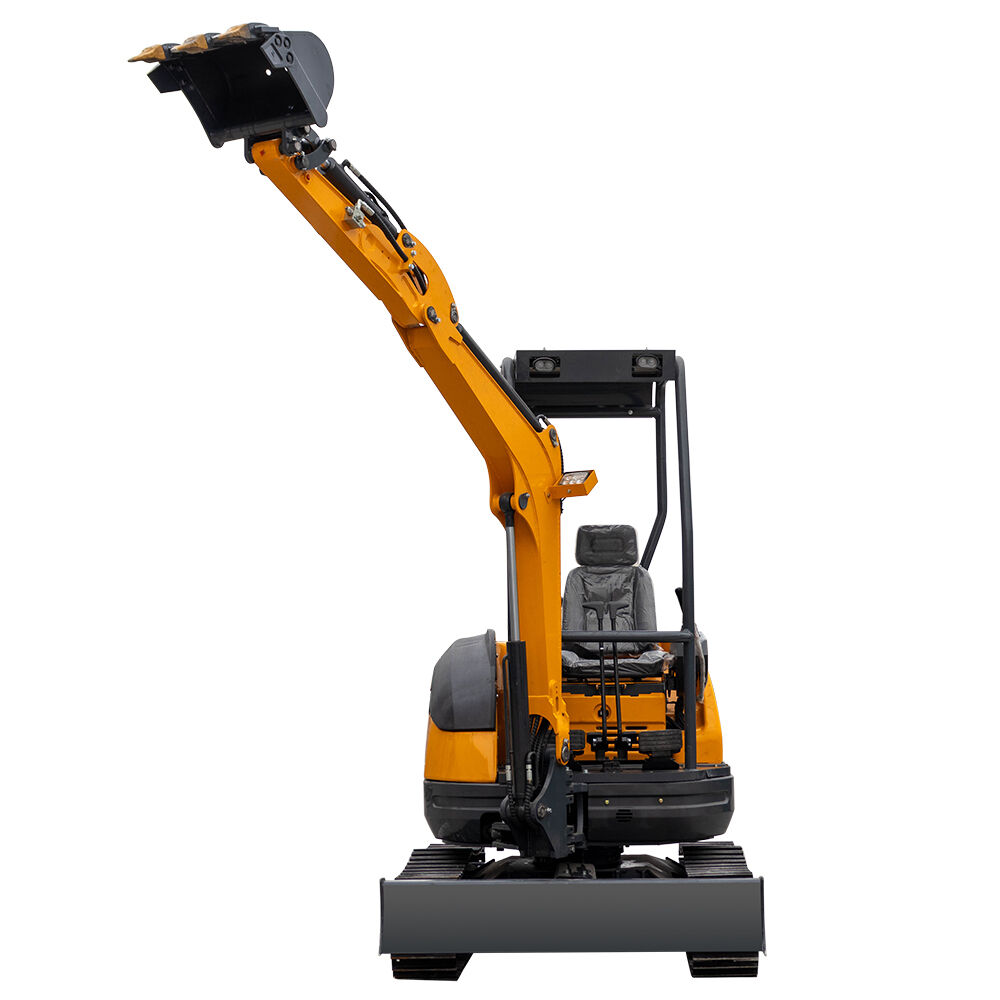

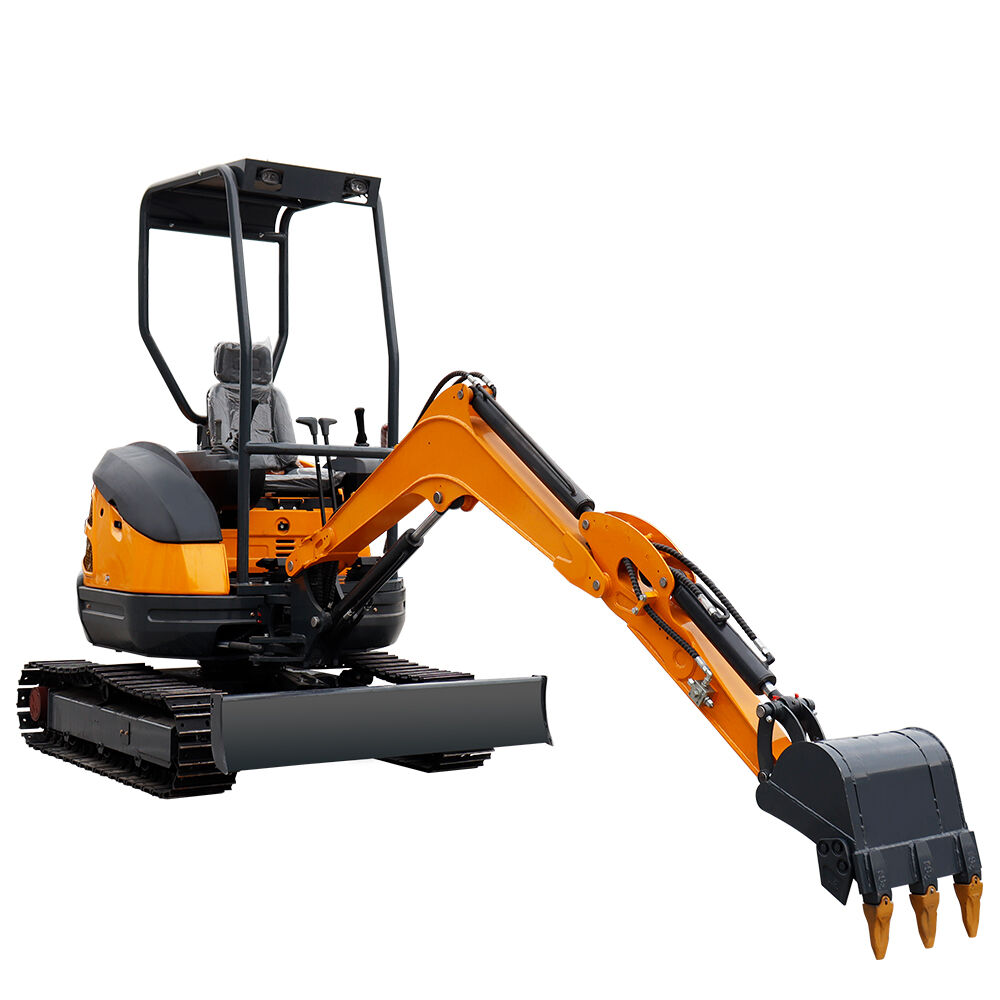

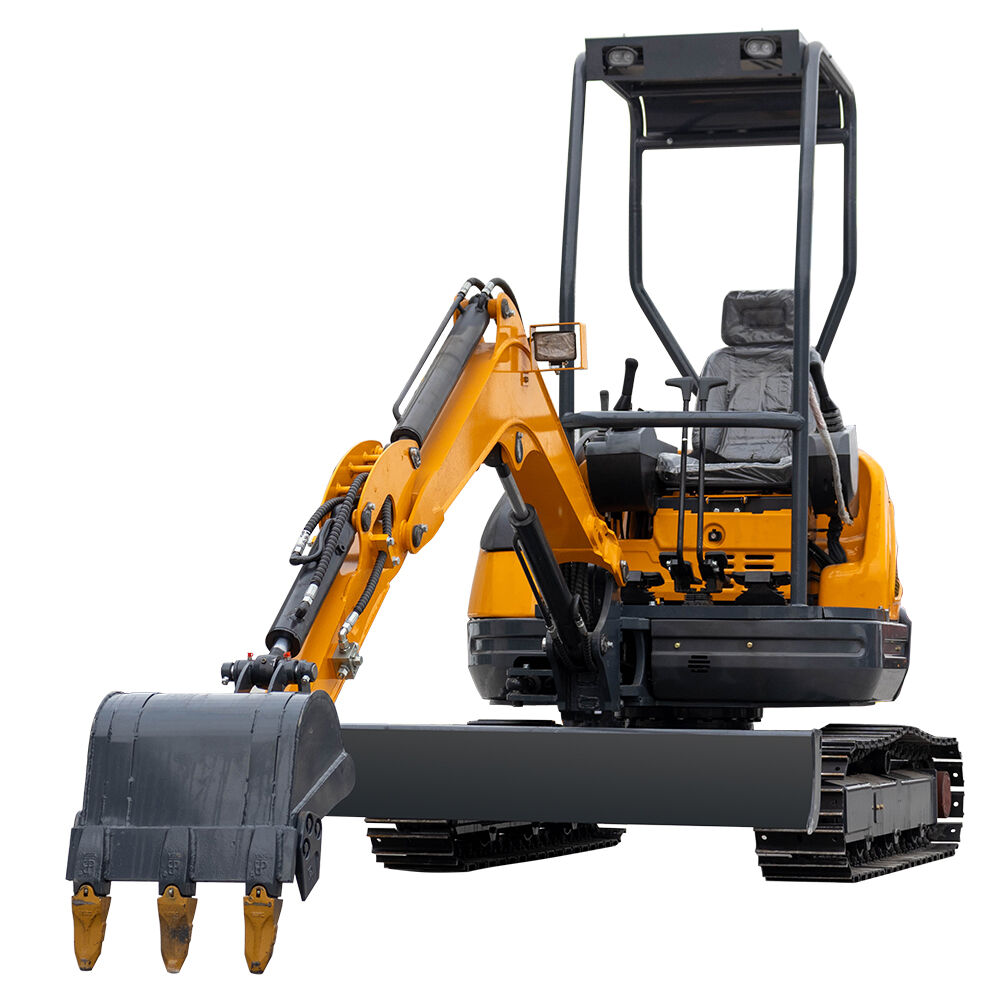

HT25 2.5 Ton Small Garden Excavator

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT25

Inquire Now

Product Description

Video

Applications

Parameters

Features

Advantages

Product Description

The HT25 is a 2.5-tonne compact excavator, available with premium engines such as the Kubota D1105 (rated power 14-22.1kW), paired with hydraulic components from brands like Eaton and featuring fully hydraulic pilot operation. Delivering stable power and precise control, its 700mm compact tail swing radius combined with independent boom swing capability, alongside an extendable undercarriage and 1480mm track ground contact length, enables agile manoeuvring in confined spaces and effortless navigation of complex terrain. Standard auxiliary lines facilitate rapid attachment of various tools such as breakers and augers. The integrated sheet metal body and cylinder protection design, alongside customisable colour and component options, combine safety, durability and operational convenience. This makes it an efficient solution for small-scale municipal, agricultural, forestry and building renovation projects.

Video

Applications

Agricultural, Forestry and Horticultural Settings:Suitable for orchard trenching and fertilisation, tree planting and hole digging, weeding and soil mounding, as well as deep ploughing of vegetable greenhouse soil and drainage channel excavation. Its compact frame avoids crushing crops, ensuring precise operation.

Building Renovation and Interior Work Scenarios:Undertaking confined-space operations including interior demolition, old property refurbishment, and basement backfilling. Featuring a 700mm compact tail swing radius and boom side swing design, it flexibly handles tight corners such as wall bases while minimising damage to surrounding structures.

Rural and small-scale infrastructure scenarios:Suitable for rural farmland renovation, terraced field restoration, river dredging, and homestead levelling. With a 40° climbing ability and long ground-contact tracks, it effortlessly handles complex terrain such as muddy and rugged surfaces without track slippage.

Parameters

Model	HT-25
Engine model	Kubota 1105
Bucket Capacity	0.07 m3
Rated power	14kw/2400rpm
Total Weight	2510Kg
Engine form	Water-cooled in-line three-cylinder engine
Machine width	1300/1500mm
Hydraulic pump	Plunger pump
Max.digging force	19.5KN
Walking motor	Li Kechuan
Swing speed	9.5rpm
Rotary motor	Eaton motor
Walking speed	2.6/4.5Km/h
Max.digging height	3980mm
Fuel tank capacity	26L
Maximum loading and unloading height	2610mm
Maximum flow	1.216L/cc
Max.digging depth	2430mm
Rated work pressure	20.6MPa
Maximum Digging Range	4136mm
Operation method	hydraulic pilot
The maximum excavation range on the ground	4100mm
Track width	250mm
The minimum turning radius of the tail	750mm
Overall size	38501300mm/ 15002380mm
Working device turning radius	1850mm
Minimum ground clearance	230mm
Boom swing	75/55°

Features

Powerful and Efficient Performance:
Equipped with high-quality three-cylinder water-cooled diesel engines such as Kubota D1105 or Laidong LL385B, delivering a rated power of 14-22.1KW. It features stable power output, uniform heat distribution, and low fuel consumption, complying with environmental standards for energy-saving and eco-friendly operation.

Compact and Flexible Maneuverability:
Boasts a ultra-small tail swing radius of only 700-750mm, combined with a boom offset function (75° left swing and 55° right swing). This design allows unobstructed 360° rotation, making it easy to work in tight spaces like narrow alleys and indoor areas without colliding with surrounding structures.

Versatile Attachment Compatibility:
Standard-equipped with a hydraulic three-way shut-off valve, enabling quick oil circuit switching without pipe disconnection. It can be easily matched with various attachments such as hydraulic quick couplers, narrow buckets, hydraulic breakers, augers, rotating grapples, and tilt buckets.

Durable and Easy Maintenance:
Features a one-piece stamped sheet metal outer shell for high structural strength. It is equipped with upper cylinder protection devices, and the oil drain pipes adopt a hidden layout to avoid sun exposure and operational wear, extending the service life of the hydraulic system.

Advantages

Optional engines include renowned brands such as the Kubota D1105 or LianDong LL385B, delivering power outputs ranging from 14 to 22.1 kW. Featuring a three-cylinder water-cooled diesel configuration with uniform heat distribution, these engines provide robust power for demanding tasks like excavation and crushing while effectively reducing fuel consumption. This design strikes a balance between economic efficiency and environmental sustainability.

Short radius swing + boom slewing

Its tail swing radius measures a mere 700–750mm, while the boom achieves a 75°/55° slewing angle. Combined with its compact body dimensions, this enables operation within confined spaces such as indoor areas and narrow passageways without risk of collision with surrounding structures. It also facilitates flexible manoeuvring for tasks near walls, corners, and other tight locations.

Excellent chassis adaptability

Certain models feature an extendable chassis with adjustable width between 1300 and 1500mm. Combined with a track ground contact length of 1480mm and maximum ground clearance of 230mm, this design delivers exceptional traversability. It handles complex terrain such as muddy or rugged conditions with ease, minimises track slippage during incline ascents, and adapts to diverse outdoor operational environments.

Robust and well-protected

The machine body shell is formed as a single piece using sheet metal stamping dies, offering enhanced structural integrity. An upper cylinder protection device is incorporated to safeguard the boom cylinder effectively, preventing damage during operation. The drain line employs a concealed configuration, shielding hydraulic hoses from prolonged exposure to sunlight and operational wear, thereby extending the service life of the hydraulic system.
