2.2-ton Mini Excavator HT22 2200KG Mini Digger for Sale

2.2-ton Mini Excavator HT22 2200KG Mini Digger for Sale

Place of origin Shandong China

Brand Name Hightop

Certification CE, EPA, ISO

Model Number HT22

Inquire Now

Product Description

Parameters

Product Features

Advantages

Product Description

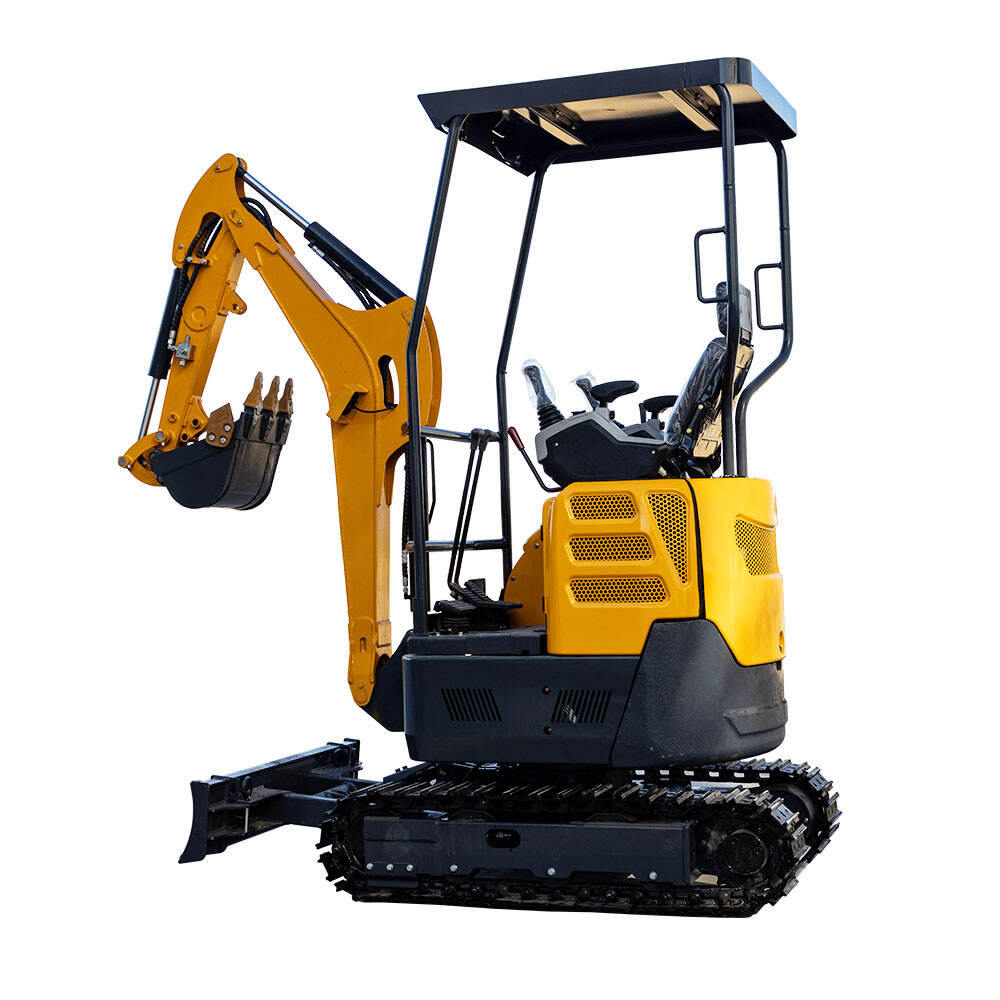

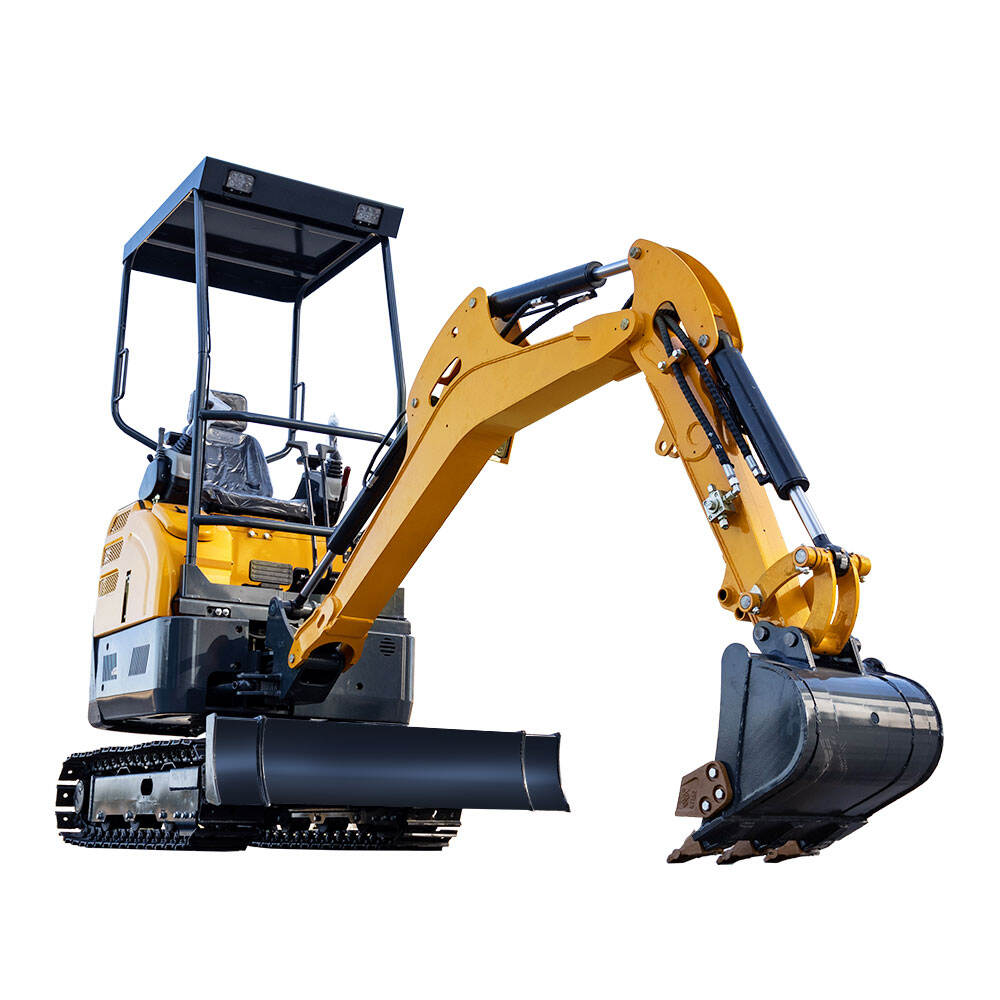

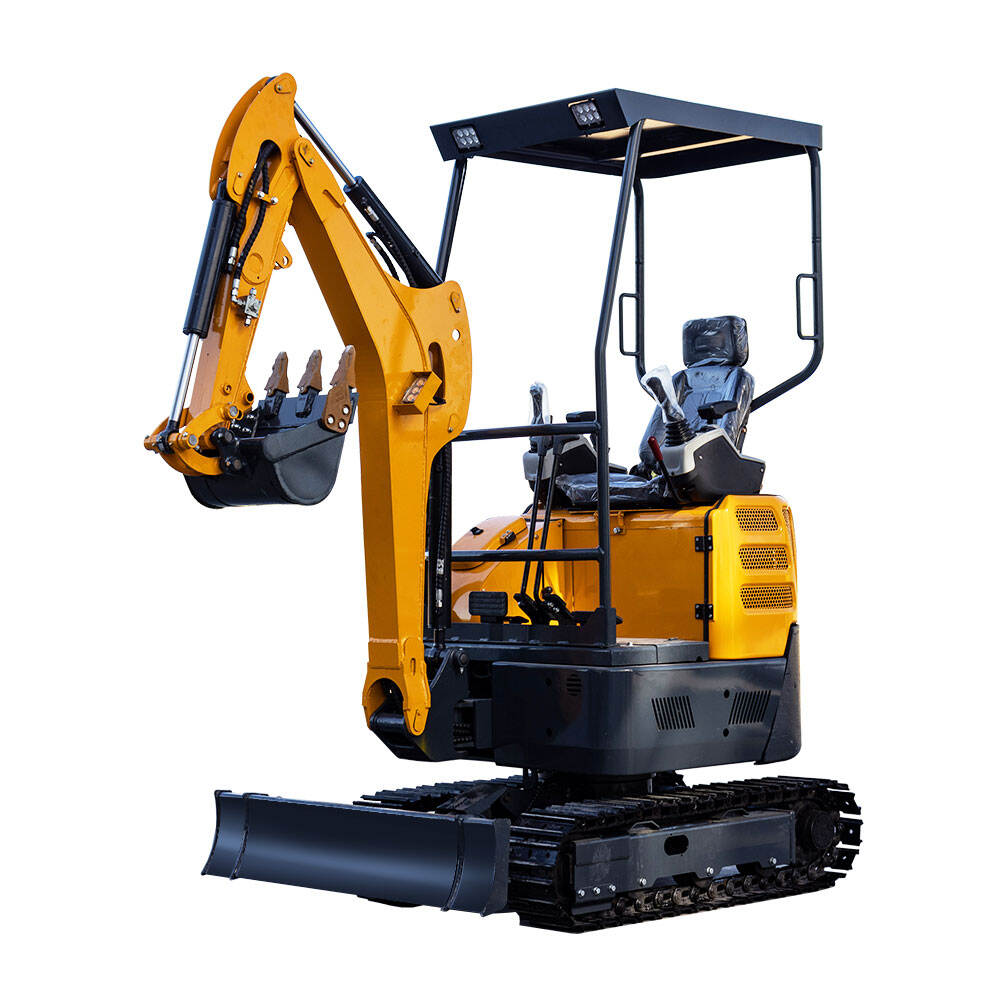

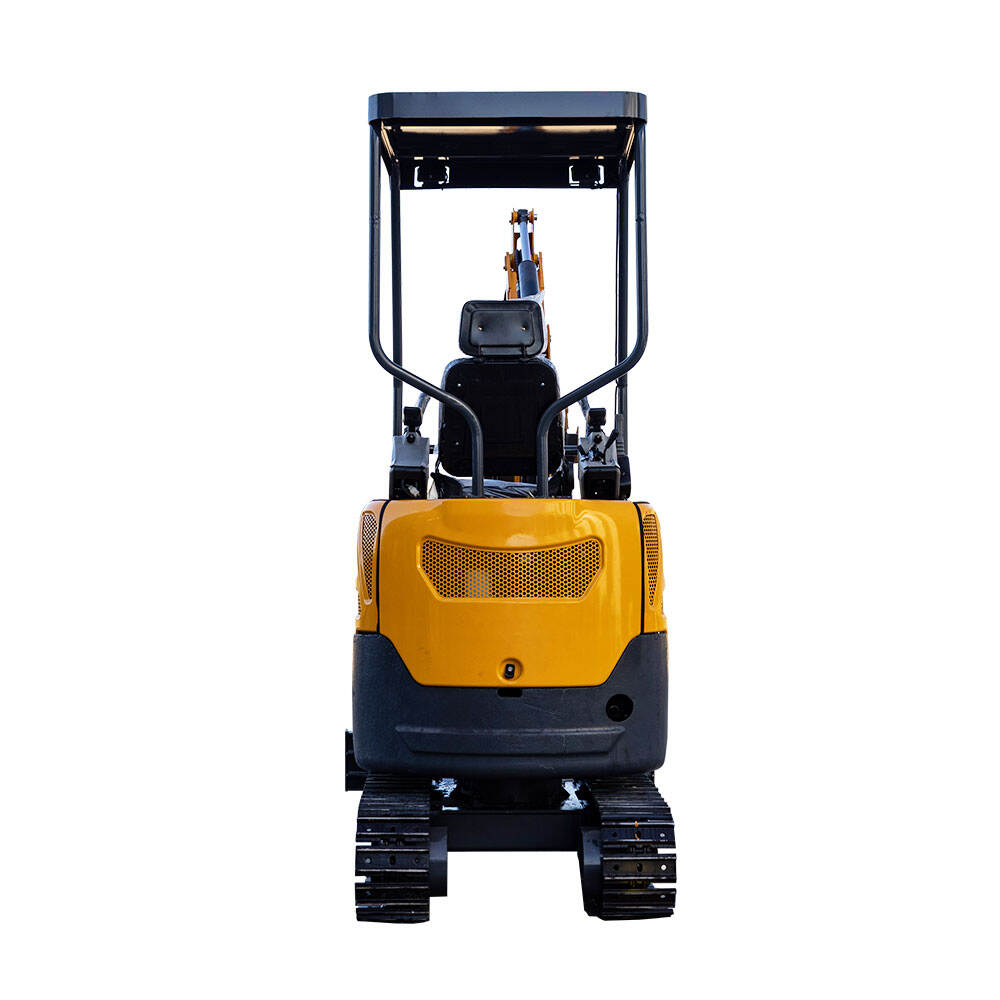

The HT22 is a 2.2-tonne compact excavator equipped with premium engines such as the Kubota D1105, delivering a rated power of 14.2 kW. combining robust power delivery with excellent fuel efficiency. Its telescopic undercarriage (990-1300mm width) and compact 780mm tail swing radius, complemented by boom swing functionality, enable agile manoeuvring through confined spaces and challenging terrain. Full hydraulic pilot operation ensures precise and convenient control, enhanced by safety lock protection. Steel/rubber tracks are interchangeable, supporting rapid attachment changes for breakers, augers and other tools. Suited for municipal works, landscaping, forestry and agricultural applications, it serves as an efficient and practical tool for small-scale projects.

Parameters

Total length/transport length(A)	4750
Total width(B)	990/1300
Top Width(D)	1050
Total heigh(C)	2470
Track width(F)	230
Track Gauge(G)	780/1090
Min.ground clearance(H)	150
Tail turning radius(l)	780
Min.ground clearance(H)	150
Tail turning radius(l)	780
Track ground length(J)	1200
Track length(K)	1500
Operating weight(KG)	2172kg
Bucket capacity(M^3)	0.056m³
Rated power	14.2KW12200rpm
Rated speed	9.5r/min
Gradeability	58%
Digging height (a)	3500
Unloading height(b)	2560
Digging depth(c)	2370
Digging distance(d)	3030
Turning radius(e)	1750
Height at minimumturning radius(f)	2600
Total length	2430mm
Engine	KUBOTA D1105
T3cylinder directinjection	Rated power14.2KW/2200
Main valve	TRM10-BX-09-JNJT-01
Main pump	TFA10VO28153R
Traveling motor	KTD-490
Pressure	20.5MP
Displac ement	28ml/r
traveling speed2.214.3km/h	Traction 18KN
Fuel tank Capacity	21L
Cooling systerm Capacity	5.05L
Hydraulic oil tank Capacity	21.4L

Product Features

HT22 Mini Excavator

Advantages

Four-post shed

Telescoping chassis 990mm-1300mm

Better for the excavator to pass through narrow passages

Inverted arm

The boom adopts an inverted structure device to better protect the oil cylinder; The connected boom deflection head is cast in one piece, which has a more beautiful appearance and stronger strength than the welded one

Steel track(replaceable tracks)

Steel tracks --The lifespan of steel tracks is longer than that of rubber tracks, and they can also be interchanged with rubber tracks
